E-by SIPLACE Smart Feeder 32 mm E Fitting the Foil Rocker Part Exchange 11/12 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: Part No.: 0305560…

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Foil Rocker

Part Exchange

10/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T3,T5

Part No.: 03055603-xx (<=-06)

03117107-xx (>=-07)

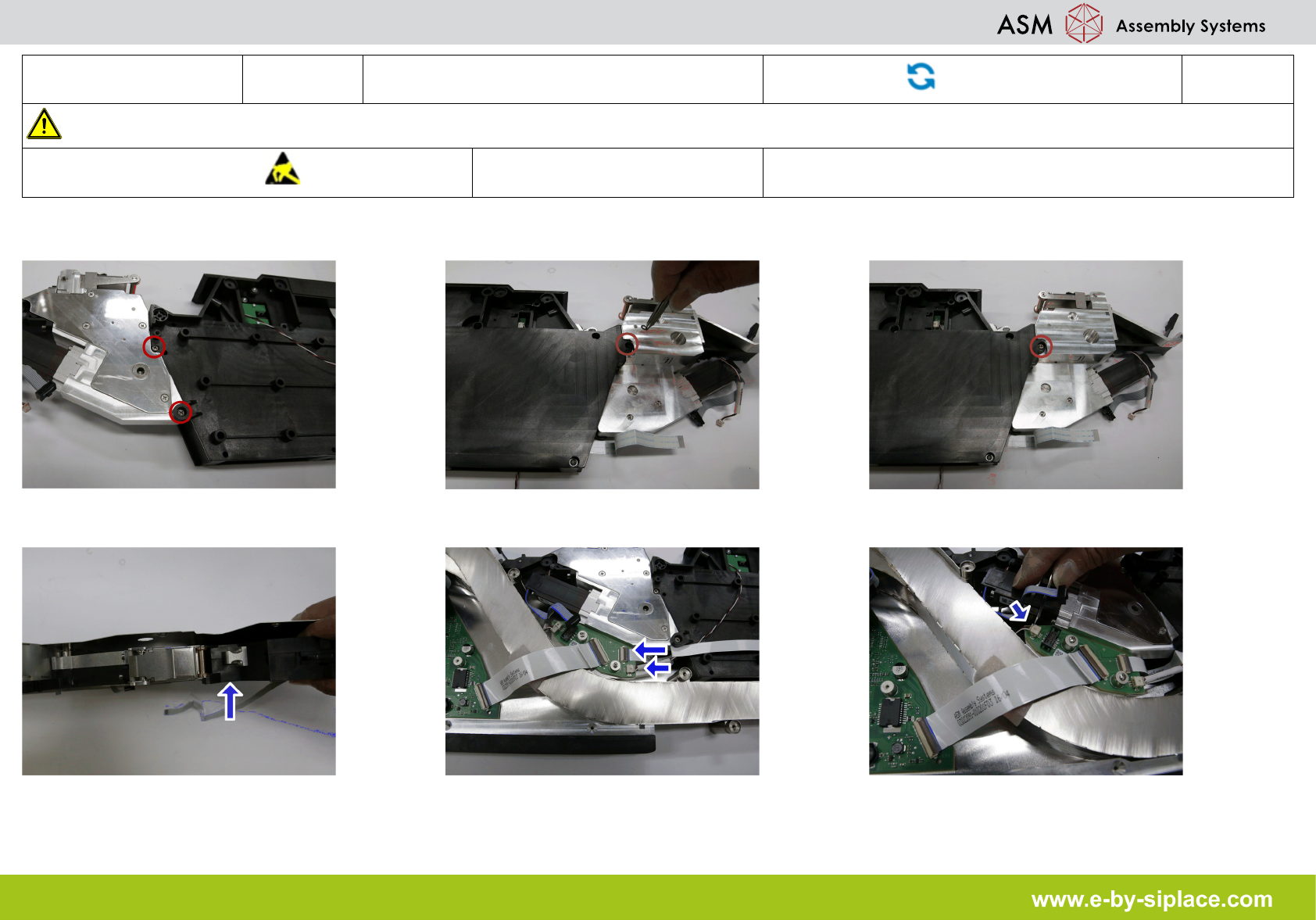

19. Tighten these 2 screws with T3. 20. Insert the washer with T5. 21. Tighten this screw with T3.

22. Fit in the foil disposal drive to the feeder. 23. Connect the 2 connectors. 24. Connect the connector.

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Foil Rocker

Part Exchange

11/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Part No.: 03055603-xx (<=-06)

03117107-xx (>=-07)

25. Connect the connector. 26. Fit in the spacer. 27. Tighten the 2 screw with T3.

28. Fit in the 4 screws with T3 and T5 accord-

ingly.

29. Fit in the rocker. 30. Insert the rocker axle.

E-by SIPLACE Smart Feeder

32 mm E

Fitting the Foil Rocker

Part Exchange

12/12

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Part No.: 03055603-xx (<=-06)

03117107-xx (>=-07)

31. Tighten the rocker axle.
