2-1 0606-001 传感器 / 负载配置图 底架 传感器 / 负载配置图 底架 M1 1 1 M1 10 M109 BB-M66 S141 M1 18 M1 17 M1 16 Symbol Name Symbol Name BB-M66 V acuum Pump 1 S141 Pressure Switch M109 Electrical Box Left Side Cooling Fan (Front Side) M1 16 E…
2-B0606-001
2-10606-001

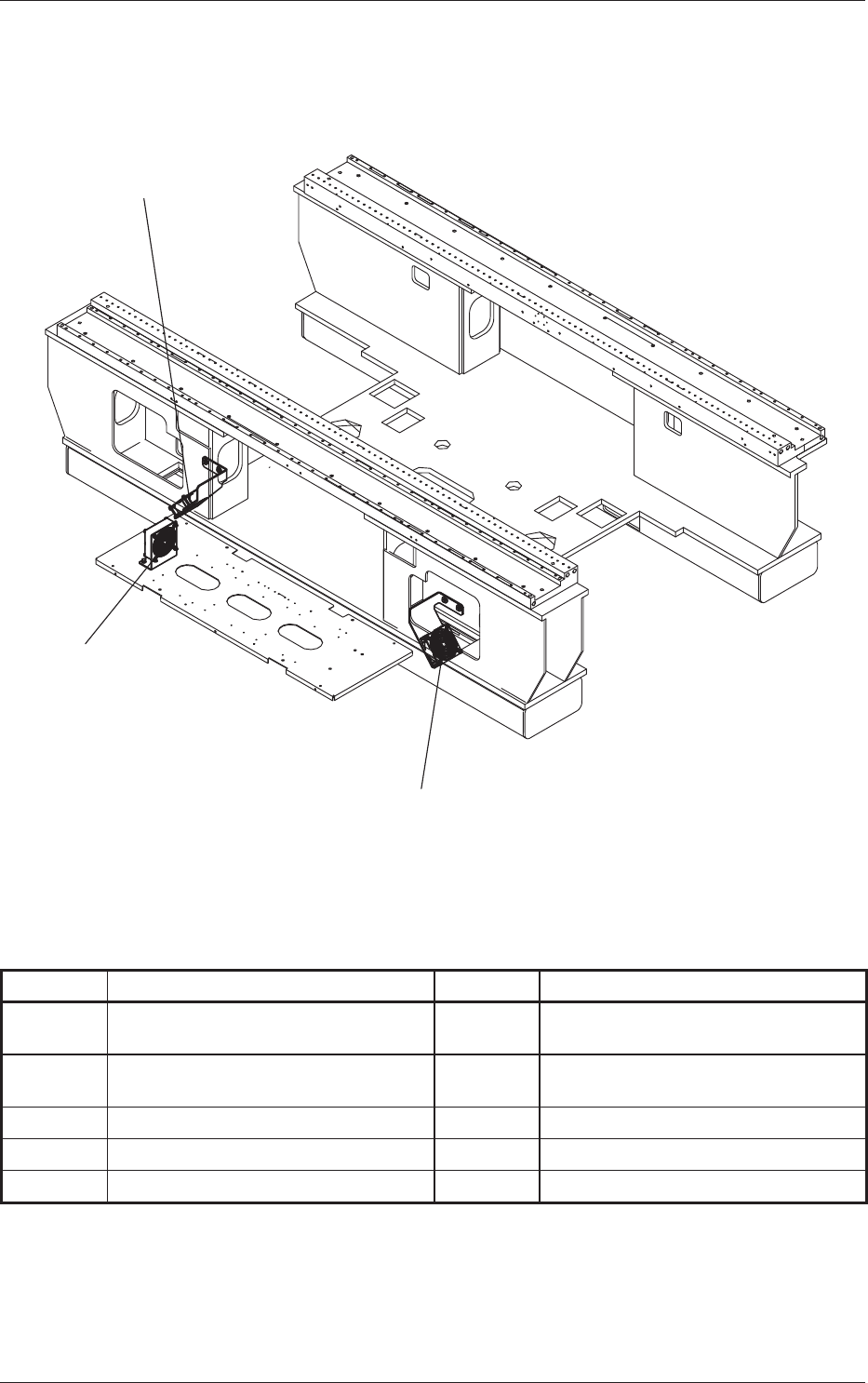

传感器 / 负载配置图 底架
传感器 / 负载配置图 底架
M111
M110
M109
BB-M66
S141
M118
M117
M116
Symbol Name Symbol Name
BB-M66 Vacuum Pump 1 S141 Pressure Switch
M109 Electrical Box Left Side Cooling Fan
(Front Side)
M116 Electrical Box Right Side Cooling Fan
(Front Side)
M110
Electrical Box Left Side Cooling Fan
(Rear Side)
M117 Electrical Box Right Side Cooling Fan
(Rear Side)
M111
Electrical Box (Left) Cooling Fan M118 Electrical Box (Right) Cooling Fan
2-20606-001
传感器 / 负载配置图 上架
传感器 / 负载配置图 上架
M107
M112
M108
Symbol Name Symbol Name
M107 Upper Frame Cooling Fan (Front Left
Side)
M108 Upper Frame Cooling Fan (Rear Left
Side)
M112 Conveyor Multiaxis Amplifier Cooling Fan
