Series 450 Autovalve / Snuff Back | Instructions / Parts Lists 10 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide. #7701971 Hand Held — E…
Series 450 Autovalve / Snuff Back | Instructions / Parts Lists
9www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Hand Held with Pneumatic Switch #7701977
NOTE: Ref. numbers 101, 103, and 110 can be purchased assembled as P/N 7702388.
P/N Ref. # Qty. Description
— 90 1 Handle / Aluminum / Cartridge Option
7702317 91 1 Trigger for Mount H or E
— 92 1 Trigger Bolt, 8-32 x 3/4" long
— 93 1 Trigger Guard for 400 / 450 Switches
— 94 1 6-32 x 5/16" FHSHCS for 400 / 450 Switches
— 95 1 6-32 x 1/2" FHSHCS for 400 / 450 Switches
— 96 1 Safety Lock for 400 / 450 Switches
— 97 1 1/2" OD x 1/16" O'Ring for 400 / 450 Switches
— 98 2 SHCS 10-24 x 1/2" long for Mount S, E or H
— 101 1 Protective Rubber Boot for 400 / 450 Switches
— 103 1 4 Way Cartridge Valve for Pneumatic Handle
— 104 1 Brass Plug 10-32
— 105 1 10-32 Barbed Air Fitting
— 106 1 3/4" Dia. Acetal Plug
— 107 4 10-32 UNF Elbow Air Fitting
— 110 1 E-Clip
7702308 111 2 1/8" ID Air Tubing x 2.00"
105
104
98
92
91
94
93
95
96
97
103
90
106
107
111
110
101
Mount
Series 450 Autovalve / Snuff Back | Instructions / Parts Lists
10 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
#7701971 Hand Held — Electric Momentary Switch (24 Volt)
P/N Ref. # Qty. Description
— 90 1 Handle / Aluminum / Cartridge Option
7702317 91 1 Trigger for Mount H or E
— 92 1 Trigger Bolt, 8-32 x 3/4" long
— 93 1 Trigger Guard for 400 / 450 Switches
— 94 1 6-32 x 5/16" FHSHCS for 400 / 450 Switches
— 95 1 6-32 x 1/2" FHSHCS for 400 / 450 Switches
— 96 1 Safety Lock for 400 / 450 Switches
— 97 1 1/2" OD x 1/16" O'Ring for 400 / 450 Switches
— 98 2 SHCS 10-24 x 1/2" long for Mount S, E or H
7702376 99 1 Momentary Switch Assembly for 400 / 450 Series
7702378 100 1 Complete Push on / off Switch Assembly for 400 / 450 Series
— 101 1 Protective Rubber Boot for 400 / 450 Switches
— 102 1 CS Flat Washer for 400 / 450 Switches
Mount (continued)
Series 450 Autovalve / Snuff Back | Instructions / Parts Lists
11www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

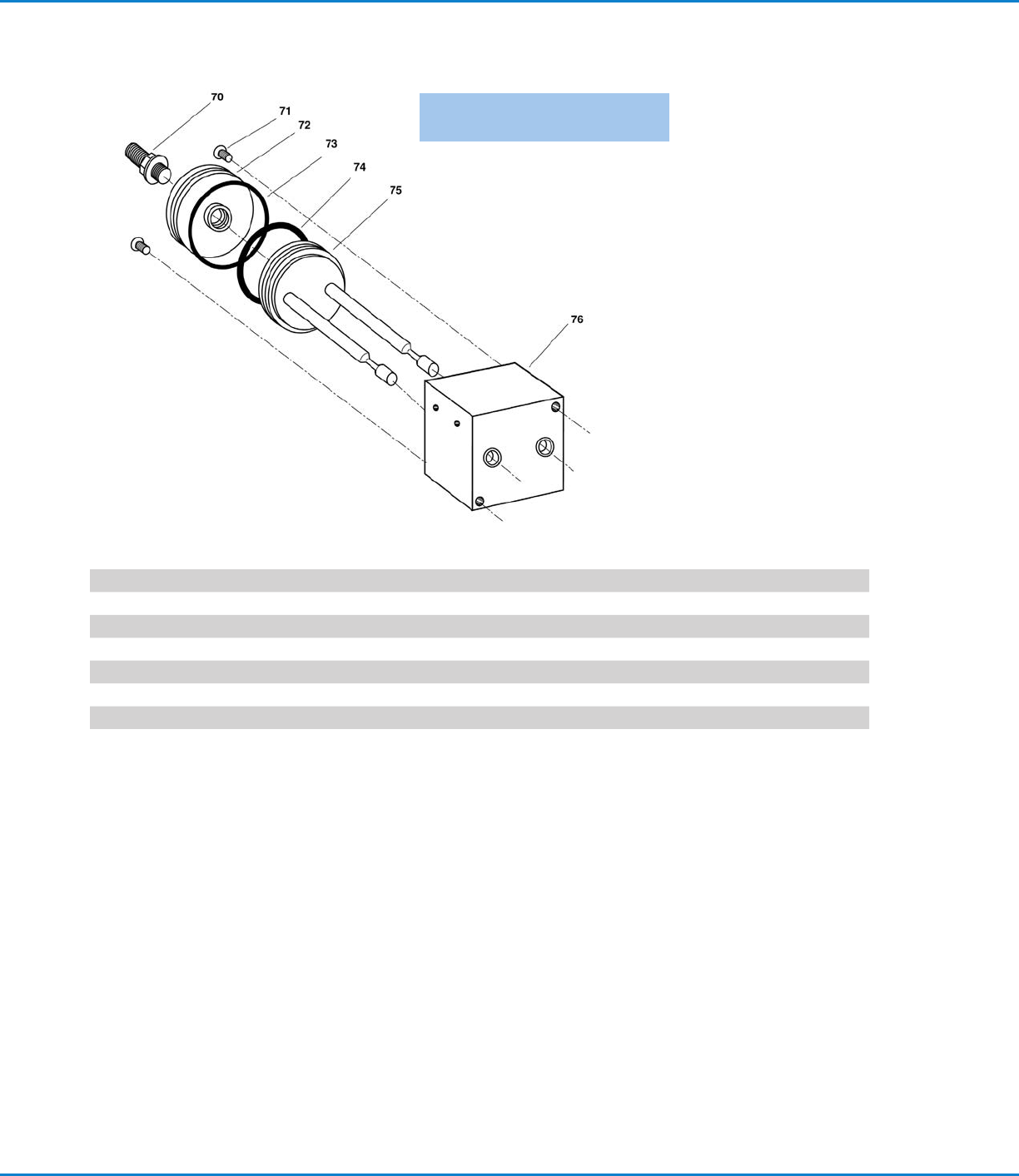

Air Cylinder — #7702265 Hardened SS Shafts
NOTE: Prior to assembly lubricate all
O-rings with auto grease.
P/N Ref. # Qty. Description
— 70 1 Snuff-Back Adjustment Screw
— 71 2 BHCS 1/4-20 x 1/2" long
7702402 72 1 Aluminum Back Plate
— 73 1 Brown Viton O-Ring (Back Plate)
— 74 1 Brown Viton O-Ring (Piston)
7702400 75 1 Replacement Piston and Hardened SS Shafts
7702074 76 1 Replacement Body with Front Seals
