PART NAME REMARKS Q'TY 30 回収ｺﾝﾍﾞｱ部(3<32mm>) RECOVERY CONVE YER SECT.(3<32mm> ) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 3 404 1089680004 PIN ﾋﾟﾝ 1 407 104880800703 PIN ﾋﾟﾝ 1 408 104880800804 PI…

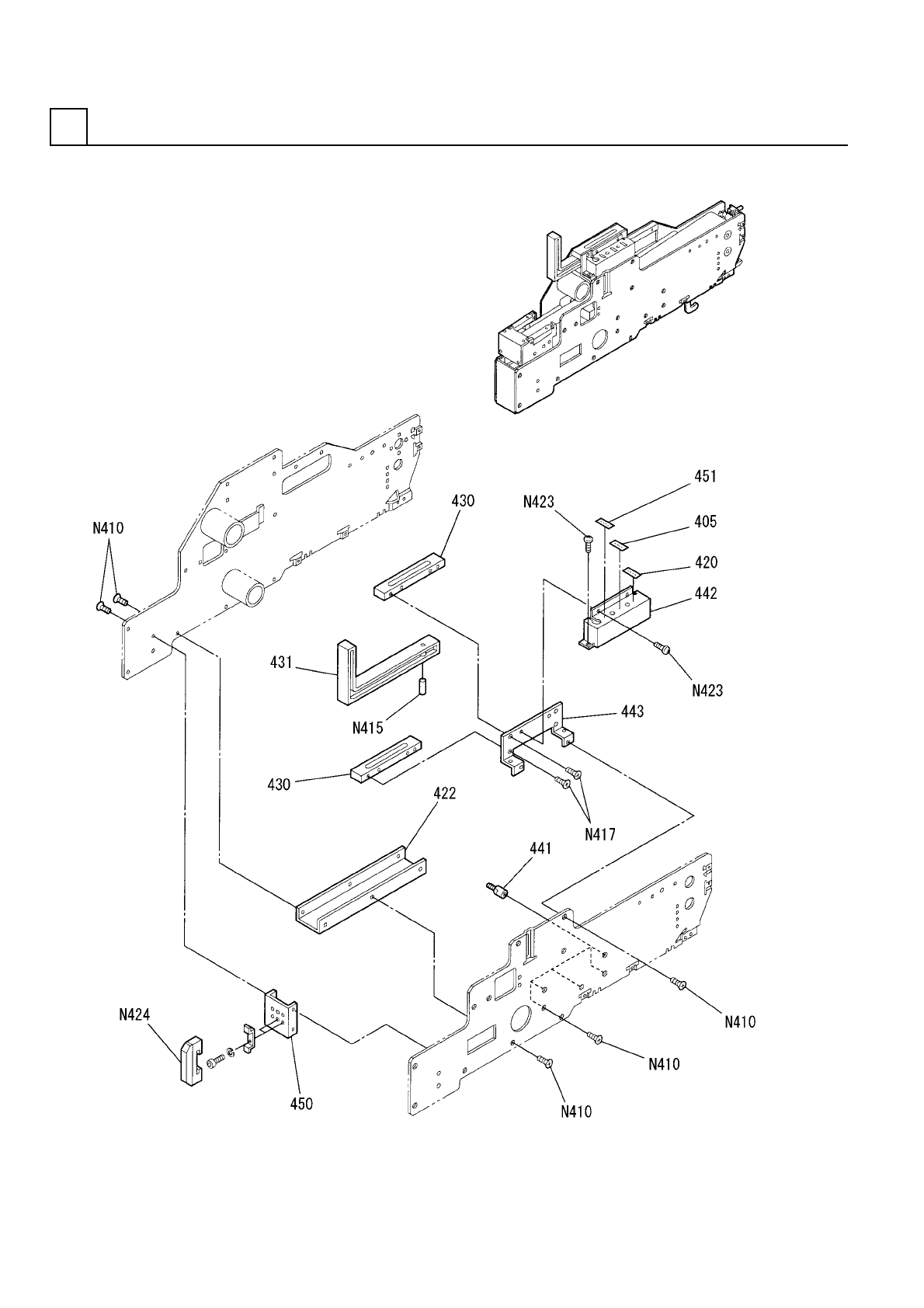

回収ｺﾝﾍﾞｱ部(3<32mm>)
RECOVERY CONVEYER SECT.(3<32mm>)
30
F10896-80-400-AD_A-3
M203
PART NAME
REMARKS
Q'TY
30
回収ｺﾝﾍﾞｱ部(3<32mm>)
RECOVERY CONVEYER SECT.(3<32mm>)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
3404 1089680004
PIN ﾋﾟﾝ
1
407 104880800703
PIN ﾋﾟﾝ
1
408 104880800804
PIN ﾋﾟﾝ
1409 104979818002
BLOCK ﾌﾞﾛｯｸ
1415 1089680015
JOINT ｼﾞｮｲﾝﾄ
1
416 1089680416
BLOCK(FRONT) ﾌﾞﾛｯｸ(ﾌﾛﾝﾄ)
1
417 104979812703
CLAMP ｸﾗﾝﾌﾟ
1418 1048808031
PIN ﾋﾟﾝ
1419 104880802802
PIN ﾋﾟﾝ
1
421 108968002101
PLATE ﾌﾟﾚｰﾄ
1425 1089680025
BLOCK ﾌﾞﾛｯｸ
1426 1089680426
RAIL ﾚｰﾙ
1
445 1089680445
COVER ｶﾊﾞｰ
1
448 1089680448
BLOCK ﾌﾞﾛｯｸ
3449 1089680005
COLLAR ｶﾗｰ
CCP-8030-682HC
2
N404
N322CCP8-385
CONNECTOR ｺﾈｸﾀ
M3X8,+,STAINLESS(SUS30
2
N405
XSN3+8YW
PAN HEAD SCREW ﾅﾍﾞｺﾈｼﾞ
FSM3X0.5
4
N406
N986FSM30.5
NUT ﾅｯﾄ
M3X6-4.8 A2J (Trivalen
6
N407
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M3X6-4.8 A2J (Trivalen
18
N410
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X10-4.8 A2J (Trivale
2
N411
N510018036AA
PAN HEAD SCREW ﾅﾍﾞｺﾈｼﾞ
M4X8-4.8 A2J (Trivalen
8
N417
N510018180AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X6-4.8 A2J (Trivalen
4
N423
N510018056AA
PAN HEAD SCREW ﾅﾍﾞｺﾈｼﾞ
3X10,m6A,STEEL
2
N429
XPJ3A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
CU-511
3
N430
N986CU511
SPACER ｽﾍﾟｰｻ
CIMRS5-8-0.5
3
N431
N986C1MR-U16
SHIM ｼﾑ
M204
F10896-80-400-AD_A-3
回収ｺﾝﾍﾞｱ部(4<32mm>)
RECOVERY CONVEYER SECT.(4<32mm>)
30
F10896-80-400-AD_A-4
M205
