Subject to change – 2017/04
12
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data

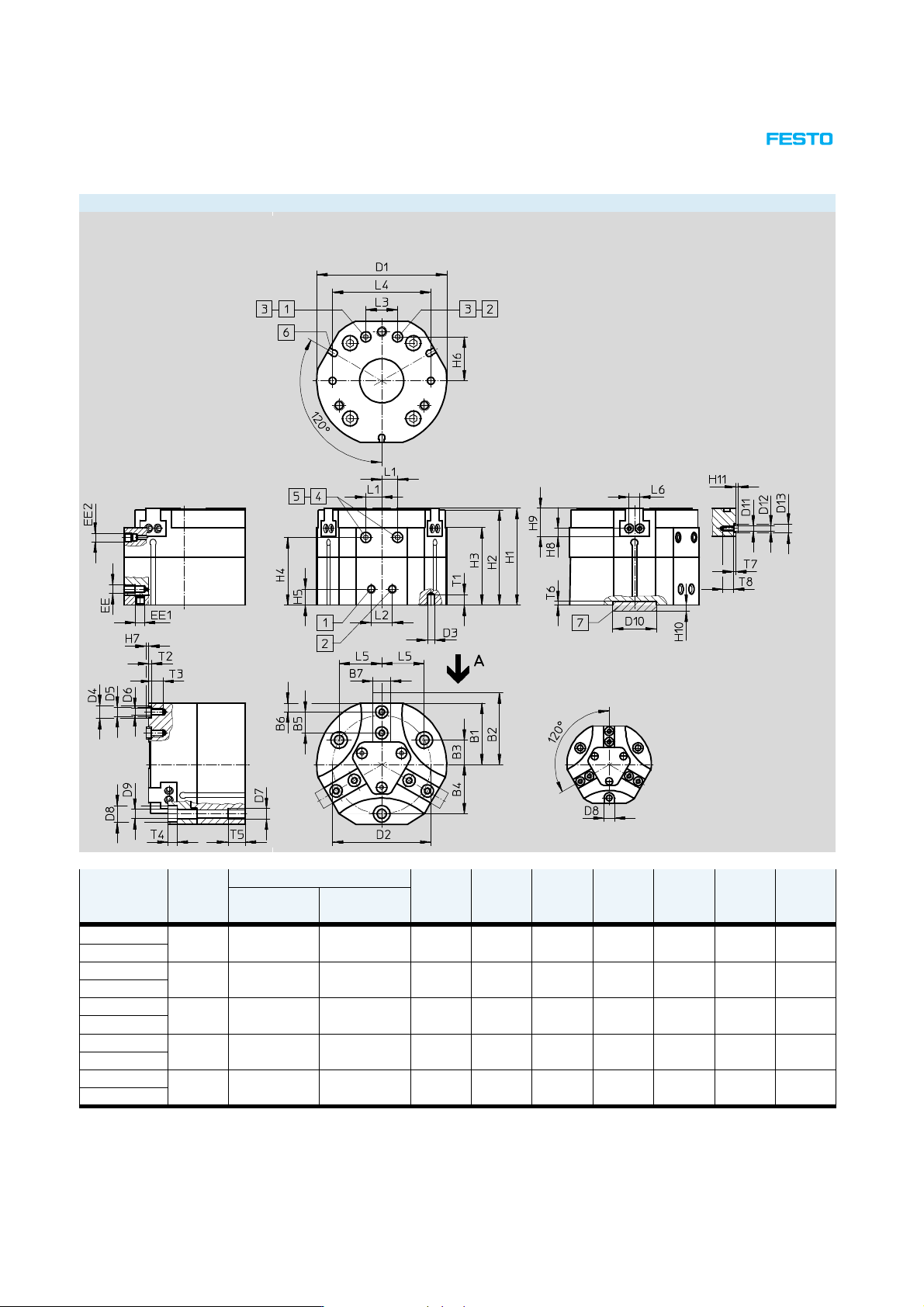

Dimensions Download CAD data è www.festo.com
1 Supply port, opening
2 Supply port, closing
3 Alternative air connection
(supplied sealed)
4 Sealing air connection
(supplied sealed)
5 Lubrication nipple
(supplied sealed)
6 Slot for proximity sensor
7 Centring disc
View A
Size B1 B2 B3 B4 B5 B6 B7 D1 D2
[mm] 0.5
with HGDT-…
0.5
with HGDT-…F
0.5 0.02 0.02
–0.05
–0.1
0.1
0.1
HGDT-25-A
22 25 23.5 9.5 19 6 3 6 48 38
HGDT-25-A-G…
HGDT-35-A
27 31 29 11 22 8 4 6.5 58 44
HGDT-35-A-G…
HGDT-40-A
35 41 38 14 28 12 5 10 74 56
HGDT-40-A-G…
HGDT-50-A
43.5 51.5 47.5 17.5 35 15 6 12 93 70
HGDT-50-A-G…
HGDT-63-A
54 64 59 22.5 45 18 10 14 116 90
HGDT-63-A-G…
2017/04 – Subject to change
13
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Size
[mm]
D3
H8
D4
H8/h7
D5
D6
D7
D8
H13
D9
H13
D10
H8
D11 D12
D13
H8/h7
EE EE1
HGDT-25-A
3 5 3.2 M3 M4 5.9 3.3 14 M2 – – M5 M3
HGDT-25-A-G…
HGDT-35-A
3 5 3.2 M3 M4 5.9 3.3 25 M3 3.2 5 M5 M3
HGDT-35-A-G…
HGDT-40-A
4 7 5.3 M4 M6 9.4 5.1 25 M3 3.2 5 M5 M5
HGDT-40-A-G…
HGDT-50-A
5 9 6.4 M6 M8 10.2 6.4 25 M5 5.3 7 Gx M5
HGDT-50-A-G…
HGDT-63-A
5 9 6.4 M6 M8 10.4 6.4 25 M5 5.3 7 Gx M5
HGDT-63-A-G…
Size
[mm]
EE2 H1
0.05
H2
0.05
H3 H4 H5
0.1
H6
0.1
H7
–0.3
H8 H9
–0.02
H10
–0.2
H11
–0.3
L1
0.5
HGDT-25-A
M5 41.5 40.5 32.5 29.3 9 13.5 1.1 2.250.1 8.5 3.5 – 6
HGDT-25-A-G…
HGDT-35-A
M5
46 45 37 33.5
9 18.5 1.1 30.02 12 3.5 1.1 7
HGDT-35-A-G… 52 51 43 39.5
HGDT-40-A
M5
55 54 44 38.4
9 25 1.4 4.50.02 16 3.5 1.1 9
HGDT-40-A-G… 72 71 61 55.4
HGDT-50-A
M5
64.5 63.5 50.5 45
12 32 1.9 5.50.02 19 3.5 1.4 9
HGDT-50-A-G… 82 81 68 62.5
HGDT-63-A
M5
69 68 50 44.5
12 42 1.9 5.50.02 22 3.5 1.4 12
HGDT-63-A-G… 96 95 77 71.5
Size
[mm]
L2
0.1
L3
0.1
L4
0.02
L5 L6 T1
min.
T2
+0.1
T3
min.
T4
+0.2
T5
min.
T6
+0.1
T7
+0.1
T8
min.
HGDT-25-A
12 12 38 16.45 60.1 3.5 1.3 5 3.2 8 2 – 3
HGDT-25-A-G…
HGDT-35-A
12 15 45 19.05 60.02 5 1.3 5.5 3.2 8 2 1.3 6
HGDT-35-A-G…
HGDT-40-A
12 18 56 24.25 60.02 6 1.6 6.5 5.1 10 2 1.3 6
HGDT-40-A-G…
HGDT-50-A
24 18 70 30.31 130.02 8 2.1 10.5 6.1 12 2 1.6 9
HGDT-50-A-G…
HGDT-63-A
24 24 90 38.97 130.02 8 2.1 10.5 6.1 12 2 1.6 9
HGDT-63-A-G…
Subject to change – 2017/04
14
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Ordering data
Size Double-acting Single-acting or with gripping force retention
without compression spring opening closing
[mm] Part No. Type Part No. Type Part No. Type
Standard
25 540859 HGDT-25-A 540860 HGDT-25-A-G1 540861 HGDT-25-A-G2
35 540862 HGDT-35-A 540863 HGDT-35-A-G1 540864 HGDT-35-A-G2
40 540865 HGDT-40-A 540866 HGDT-40-A-G1 540867 HGDT-40-A-G2
50 540868 HGDT-50-A 540869 HGDT-50-A-G1 540870 HGDT-50-A-G2
63 540871 HGDT-63-A 540872 HGDT-63-A-G1 540873 HGDT-63-A-G2
High force
25 560177 HGDT-25-A-F 560178 HGDT-25-A-F-G1 560179 HGDT-25-A-F-G2
35 560180 HGDT-35-A-F 560181 HGDT-35-A-F-G1 560182 HGDT-35-A-F-G2
40 560183 HGDT-40-A-F 560184 HGDT-40-A-F-G1 560185 HGDT-40-A-F-G2
50 560186 HGDT-50-A-F 560187 HGDT-50-A-F-G1 560188 HGDT-50-A-F-G2
63 560189 HGDT-63-A-F 560190 HGDT-63-A-F-G1 560191 HGDT-63-A-F-G2
