Subject to change – 2017/04
14
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Technical data
Ordering data
Size Double-acting Single-acting or with gripping force retention
without compression spring opening closing
[mm] Part No. Type Part No. Type Part No. Type
Standard
25 540859 HGDT-25-A 540860 HGDT-25-A-G1 540861 HGDT-25-A-G2
35 540862 HGDT-35-A 540863 HGDT-35-A-G1 540864 HGDT-35-A-G2
40 540865 HGDT-40-A 540866 HGDT-40-A-G1 540867 HGDT-40-A-G2
50 540868 HGDT-50-A 540869 HGDT-50-A-G1 540870 HGDT-50-A-G2
63 540871 HGDT-63-A 540872 HGDT-63-A-G1 540873 HGDT-63-A-G2
High force
25 560177 HGDT-25-A-F 560178 HGDT-25-A-F-G1 560179 HGDT-25-A-F-G2
35 560180 HGDT-35-A-F 560181 HGDT-35-A-F-G1 560182 HGDT-35-A-F-G2
40 560183 HGDT-40-A-F 560184 HGDT-40-A-F-G1 560185 HGDT-40-A-F-G2
50 560186 HGDT-50-A-F 560187 HGDT-50-A-F-G1 560188 HGDT-50-A-F-G2
63 560189 HGDT-63-A-F 560190 HGDT-63-A-F-G1 560191 HGDT-63-A-F-G2
2017/04 – Subject to change
15
è Internet: www.festo.com/catalogue/...

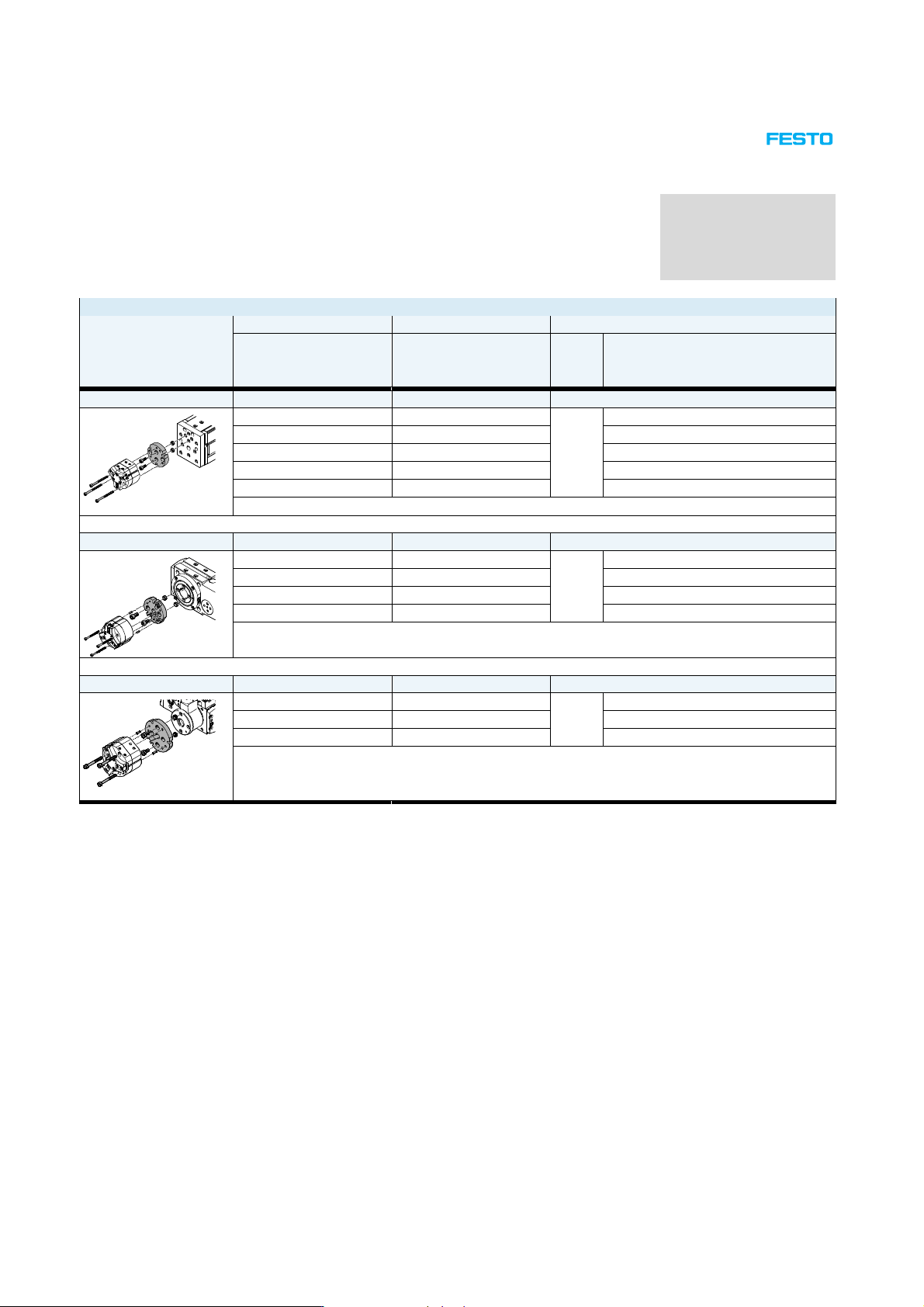

Heavy-duty three-point grippers HGDT
Accessories
Adapter kit
DHAA, HAPG
Material:
Wrought aluminium alloy
Free of copper and PTFE
RoHS-compliant
-H- Note
The kit includes the individual
mounting interface as well as the
necessary mounting material.
Permissible drive/gripper combinations with adapter kit Download CAD data è www.festo.com
Combination Drive Gripper Adapter kit
Size Size CRC
1)
Part No. Type
DGSL/HGDT DGSL HGDT HAPG
16 25
2
542439 HAPG-SD2-32
16 35 542436 HAPG-94
548805 ZBV-9-7
20, 25 35 542436 HAPG-94
20, 25 40 542437 HAPG-95
25 50 542443 HAPG-SD2-36
548806 ZBV-12-9
SLT/HGDT SLT HGDT HAPG
16 25
2
542433 HAPG-97
20 25 542439 HAPG-SD2-32
16 35 542435 HAPG-99
20, 25 35 542436 HAPG-94
20, 25 40 542437 HAPG-95
25 50 542443 HAPG-SD2-36
DRRD/HGDT DRRD HGDT DHAA
16 25
2
2079812 DHAA-G-Q11-16-B7/B7G-25
20 25 2079695 DHAA-G-Q11-20-B7/B7G-25
20 35 2077056 DHAA-G-Q11-20-B7-35
25 35 1735057 DHAA-G-Q11-25-B7-35
25 40 1735103 DHAA-G-Q11-25-B7-40
32 40 2077253 DHAA-G-Q11-32-B7-40
32 50 2077335 DHAA-G-Q11-32-B7-50
35 50 2079063 DHAA-G-Q11-35-B7-50
35, 40 63 2079274 DHAA-G-Q11-35/40-B7-63
DRRD HGDT-G DHAA
20 35
2
2832455 DHAA-G-Q11-20-B7G-35
25 35 2832483 DHAA-G-Q11-25-B7G-35
25 40 2832545 DHAA-G-Q11-25-B7G-40
32 40 2832575 DHAA-G-Q11-32-B7G-40
32 50 2832600 DHAA-G-Q11-32-B7G-50
35 50 2832617 DHAA-G-Q11-35-B7G-50
35, 40 63 2832631 DHAA-G-Q11-35/40-B7G-63
1) CRC2: Corrosion resistance class to Festo standard 940 070
Components with medium corrosion exposure. Externally visible components with significant decorative function in direct contact with normal industrial atmosphere or media such as coolants and lubricants.
Subject to change – 2017/04
16
è Internet: www.festo.com/catalogue/...
Heavy-duty three-point grippers HGDT
Accessories
Adapter kit
HAPG
Material:
Wrought aluminium alloy
Free of copper and PTFE
RoHS-compliant
-H- Note
The kit includes the individual
mounting interface as well as the
necessary mounting material.
Permissible drive/gripper combinations with adapter kit Download CAD data è www.festo.com
Combination Drive Gripper Adapter kit
Size Size CRC
1)
Part No. Type
EGSL/HGDT EGSL HGDT HAPG
35 25
2
542433 HAPG-97
45, 55 25 542439 HAPG-SD2-32
45, 55, 75 35 542436 HAPG-94
75 40 542437 HAPG-95
75 50 542443 HAPG-SD2-36
ERMB/HGDT ERMB HGDT HAPG
20, 25 25
2
542440 HAPG-SD2-33
20, 25, 32 35 542441 HAPG-SD2-34
25, 32 40 542442 HAPG-SD2-35
32 50 542443 HAPG-SD2-36
EHMB/HGDT EHMB HGDT HAPG
20 35
2
542441 HAPG-SD2-34
20 40 542442 HAPG-SD2-35
20 50 542443 HAPG-SD2-36
1) CRC2: Corrosion resistance class to Festo standard 940 070
Components with medium corrosion exposure. Externally visible components with significant decorative function in direct contact with normal industrial atmosphere or media such as coolants and lubricants.
