5 Materials 5-5 ■ Conveyor Part Name Part No. Qty. Full length BELT LG9-M90A2-00X 2 2504mm BELT （ L.B.R ） LG9-M90A4-00X 2 2173mm BELT （ L.B.L) LG9-M90A6-00X 2 439mm BELT （ R.B.R ） LG9-M90A7-00X 2 809mm BELT （ R.B.L ） LG9…
5 Materials
5-4
Filter Regulator
ELEMENT,FILTER
LG9-M12B1-00X
ELEMENT,ASSY
LG9-M12B2-00X
Ejector valve
Inside view
SET,ELEMENT
LG7-M11B1-00X
■ Grease
Part Name Part No. Qty. Remarks
GREASE,AFA LG0-M86A3-00X 1 AFA Grease (70g)
GREASE,AFB LG0-M86A4-00X 1 AFB Grease (70g)
■ Others
Part Name Part No. Qty. Remarks
CUP LG9-M57A3-00X 1 Auto discharge Cup
ROLL PAPER KM4-M9330-01X 1 For dot station
5 Materials
5-5
■ Conveyor
Part Name Part No. Qty. Full length
BELT LG9-M90A2-00X 2
2504mm
BELT（L.B.R）
LG9-M90A4-00X 2
2173mm
BELT（L.B.L)
LG9-M90A6-00X 2
439mm
BELT（R.B.R）
LG9-M90A7-00X 2
809mm
BELT（R.B.L）
LG9-M90A8-00X 2
1804mm
BELT（220） LG9-M90A9-00X 2
2941mm
BELT（L.B.L220） LG9-M90A5-00X 2
877mm
BELT（R.B.L220） LG9-M90AA-00X 2
2243mm
BELT（L.B.R220） LG9-M90AB-00X 2
2613mm
BELT（R.B.R220） LG9-M90AC-00X 2
1248mm
Note: The belt to be used varies with the conveyor specifications of the machine.
(Please refer to the "Conveyor belt variation " diagram of the following page.)
5 Materials
5-6

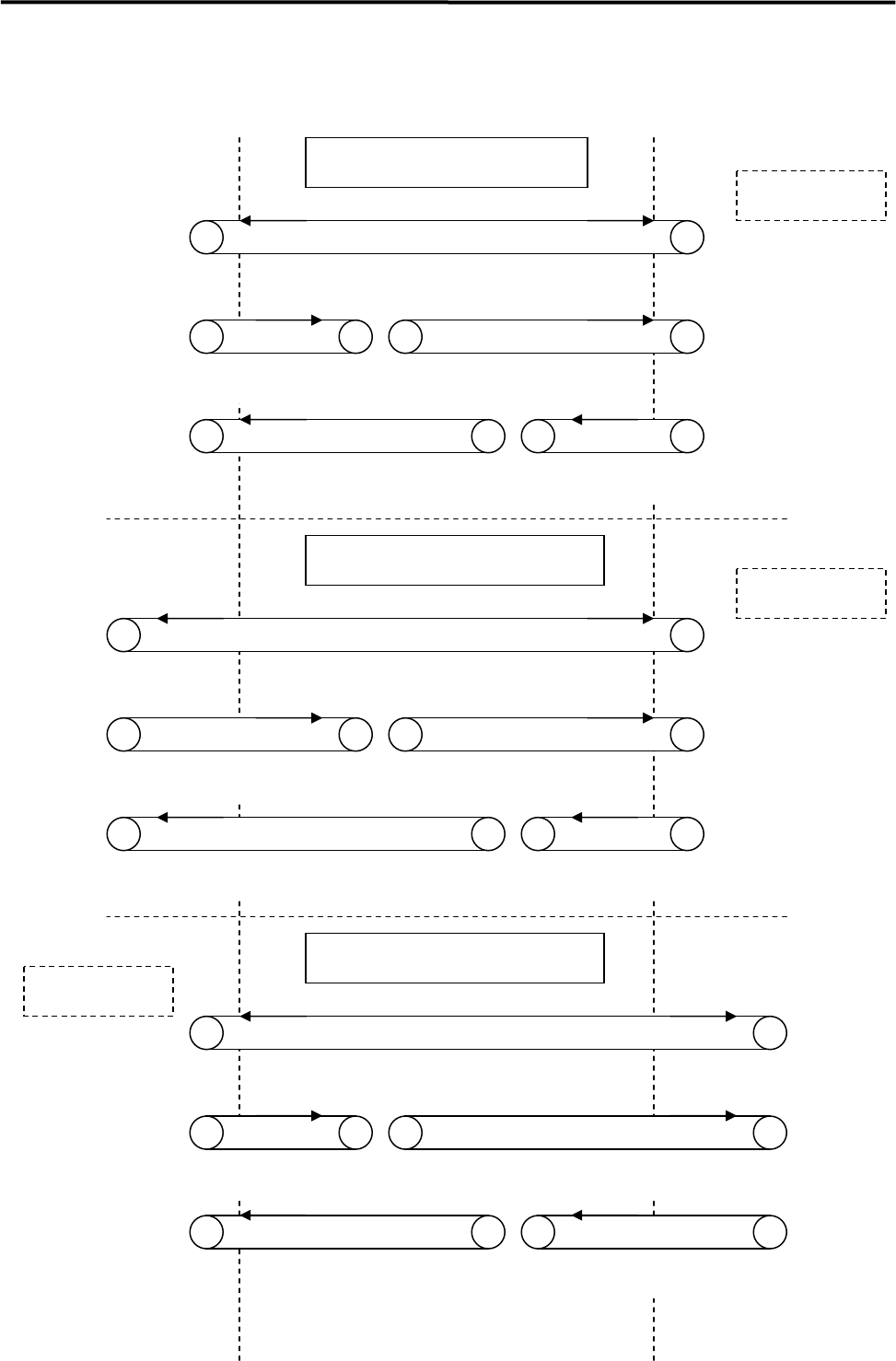

Conveyor belt variation
Note: "Buffer" in a figure shows "Buffer Stopper".
Board Transfer
Board Transfer
Board Transfer
Right to Left
Left to Right
Both direction
Right to Left
Left to Right
Both direction
Right to Left
Left to Right
Both direction
Conveyor Extension220mm （Right）
Buffer
LG9-M90A5-00X
LG9-M90A4-00X
Buffer
LG9-M90A8-00X LG9-M90AC-00
Buffer
LG9-M90A6-00X LG9-M90AB-00
Buffer
LG9-M90AA-00 LG9-M90A7-00X
Buffer
LG9-M90A8-00X LG9-M90A7-00X
Buffer
LG9-M90A6-00X LG9-M90A4-00X
Conveyor Extension220mm （Left）
No extension conveyor
LG9-M90A2-00X
LG9-M90A9-00X
LG9-M90A9-00X
