Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL CV-5062FR 0208-001 HR-2 10 3 630 049 0831 MOTOR,REVERSIBLE 1 M601,3RK15GN-AUL 100V 742HRF1 1H-003 10 4 630 003 2574 GEAR,REDUCTION 1 742HRF1 1H-004 1 1 1 630 075 17…
MODEL CV-5062FR
0208-001
延長コンベアＦＲ Extended Conveyor FR
Fig. HR-2 コンベア駆動部 Conveyor Driver
Fig.HR-2
CV-5062FR
190
130
190
See Fig.HR-1
Key No.16
182
183
181
192
181
184
189
125
112
112
168
167
166
191
103
104
111
162
163
114
189
See Fig.HL-1
Key No.18
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL CV-5062FR
0208-001
HR-2
103 630 049 0831 MOTOR,REVERSIBLE 1 M601,3RK15GN-AUL 100V
742HRF11H-003
104 630 003 2574 GEAR,REDUCTION 1 742HRF11H-004
111 630 075 1758 BELT,TIMING 1 742HRF11H-011
112 630 069 1795 PULLEY,TIMING 2 742HRF11H-012
114 630 001 0237 WASHER 2 742HRF11H-014
125 630 084 3446 PLATE 1 742HRF11B-025
130 630 089 2956 COVER 1 742HRF11B-030
162 411 141 3001 WASHER SPR 6 2 SW6
163 630 000 7886 BOLT,HEX-SCT 2 M6X16
166 411 141 4107 WASHER V 5X10X1 4 FW5
167 411 141 6705 WASHER SPR 5 4 SW5
168 630 000 7831 BOLT,HEX-SCT 4 M5X50
181 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
182 411 008 1706 WASHER SPR 4 1 SW4 F
183 411 140 4702 BOLT HEX 4X10 1 M4X10 HEX
184 411 054 8506 NUT HEX 4 1 M4 F
189 630 000 8944 SET SCREW 4 M5X6 SET
190 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
191 411 087 1109 WASHER IN TW 5 1
192 411 087 0508 WASHER IN TW 4 1
MODEL CV-5062FR
0208-001
延長コンベアＦＲ Extended Conveyor FR

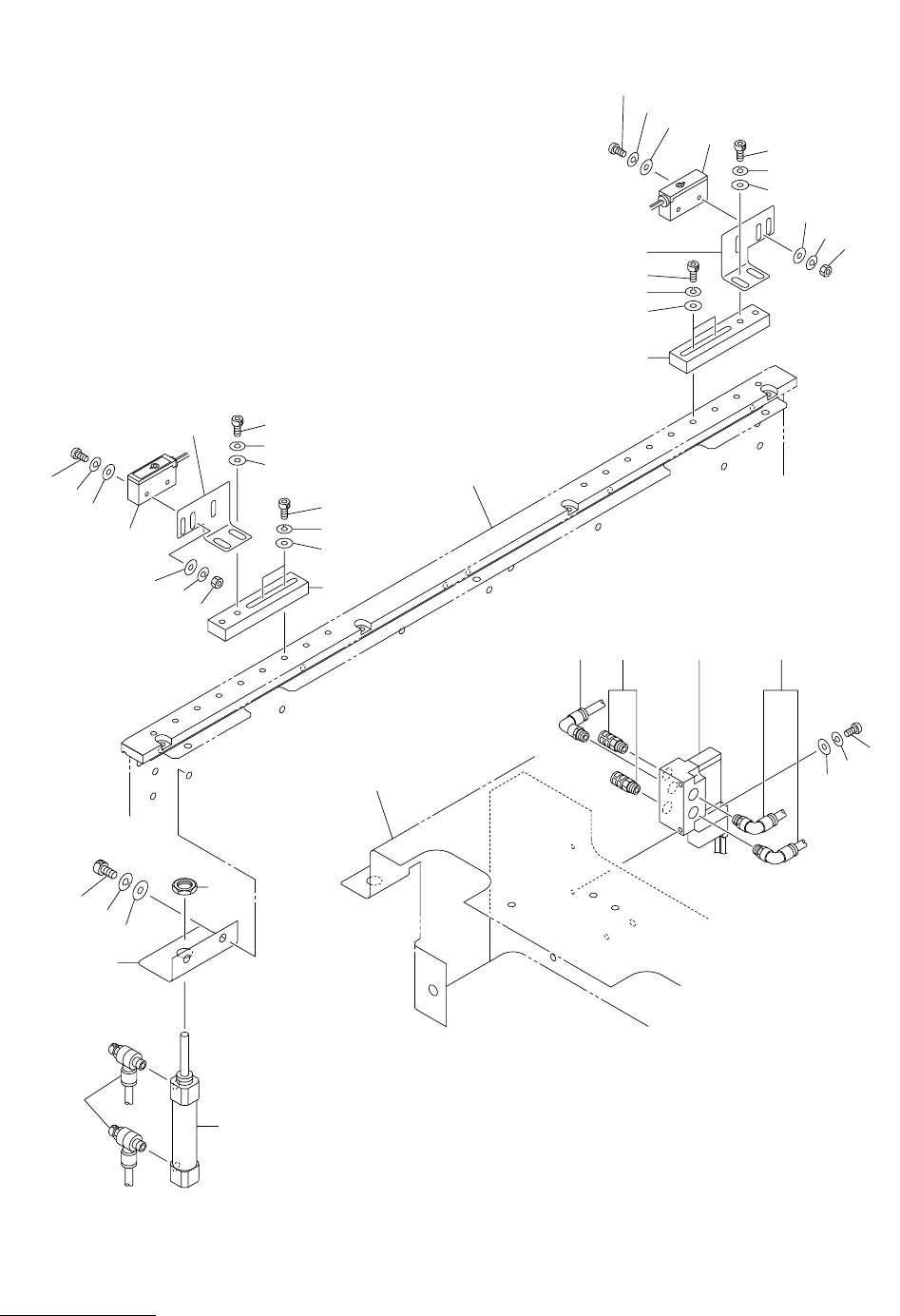

Fig. HR-3
基板検出センサ、基板ストッパ
P.C.B. Sensor,P.C.B. Stopper
278
277
276
213
272
273
271
276
277
279
229
272
271
274
227
271
229
272
272
271
273
274
267
266
268
232
234
234
236
277
278
276
277
276
279
228
213
Fig.HR-3
CV-5062FR
See Fig.HR-1
Key No.16
277
276
278
246 237 235 247
See Fig.HR-1
Key No.20
