Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL CV-5062RR 0208-001 HR-2 10 3 630 049 0831 MOTOR,REVERSIBLE 1 -M601,3RK15GN-AUL 100V 742HRR1 1H-003 10 4 630 003 2574 GEAR,REDUCTION 1 742HRR1 1H-004 1 1 1 630 075 1…
MODEL CV-5062RR
0208-001
延長コンベアＲＲ Extended Conveyor RR
Fig. HR-2 コンベア駆動部 Conveyor Driver
190
190
130
Fig.HR-2
CV-5062RR
See Fig.HR-1
Key No.16
182
183
181
192
181
184
191
166
103
104
125
163
162
161
112
112
111
189
189
167
168
See Fig.HL-1
Key No.18
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL CV-5062RR
0208-001
HR-2
103 630 049 0831 MOTOR,REVERSIBLE 1 -M601,3RK15GN-AUL 100V
742HRR11H-003
104 630 003 2574 GEAR,REDUCTION 1 742HRR11H-004
111 630 075 1758 BELT,TIMING 1 742HRR11H-011
112 630 069 1795 PULLEY,TIMING 2 742HRR11H-012
114 630 001 0237 WASHER 2 742HRR11H-014
125 630 084 3446 PLATE 1 742HRR11B-025
130 630 089 2970 COVER 1 742HRR11B-030
162 411 141 3001 WASHER SPR 6 2 SW6
163 630 000 7886 BOLT,HEX-SCT 2 M6X16
166 411 141 4107 WASHER V 5X10X1 4 FW4
167 411 141 6705 WASHER SPR 5 4 SW4
168 630 000 7831 BOLT,HEX-SCT 4 M5X50
181 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
182 411 008 1706 WASHER SPR 4 1 SW4 F
183 411 140 4702 BOLT HEX 4X10 1 M4X10 HEX
184 411 054 8506 NUT HEX 4 1 M4 F
189 630 000 8944 SET SCREW 4 M5X6 SET
190 411 113 9109 SCR TRS 5X10 4 M5X6 TRS
191 411 087 1109 WASHER IN TW 5 1
192 411 087 0508 WASHER IN TW 4 1
MODEL CV-5062RR
0208-001
延長コンベアＲＲ Extended Conveyor RR

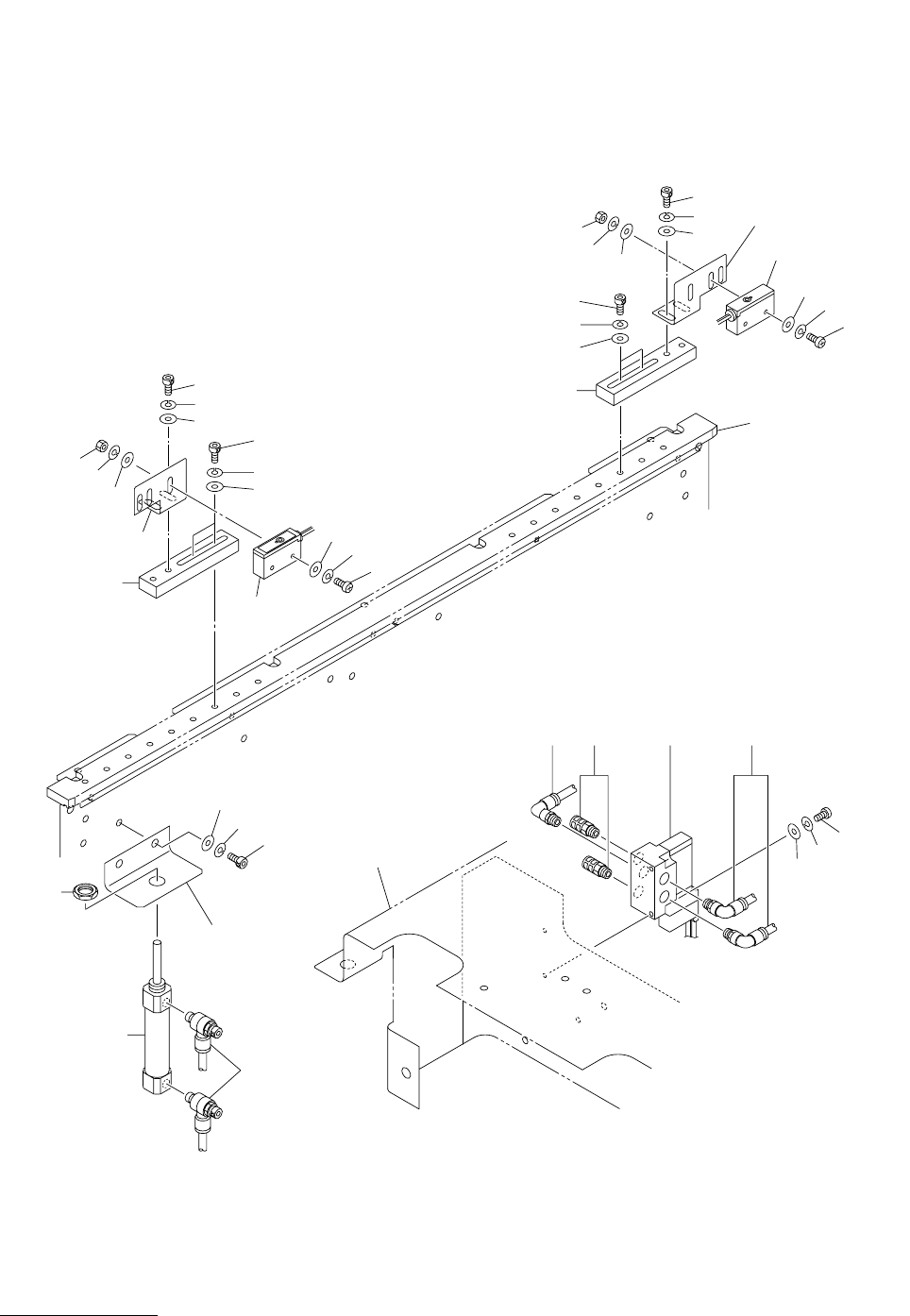

Fig. HR-3
基板検出センサ、基板ストッパ
P.C.B. Sensor,P.C.B. Stopper
276
277
279
273
272
271
273
272
271
274
272
271
274
276
277
279
272
271
213
229
227
229
276
277
278
Fig.HR-3
CV-5062RR
See Fig.HR-1
Key No.20
276
213
228
277
278
268
232
236
234
234
267
266
See Fig.HR-1
Key No.16
277
276
278
246 237 235 247
