Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.1 Standard Monitoring Application (SMA)
51
If the connection functions properly, you will see the following information box:
4
Fig. 4 - 13 Success
Click OK. The system will check the database data. If the database has data from SIPLACE
Explorer 2.0 - 3.10, you will need to convert the database for SIPLACE, due to the changed
data structure in the SIPLACE Explorer 3.11 database. In this case, the Convert Database
dialog box will open.
NOTE
Consider the following when converting the database
- You require database administrator privileges.
- Once you have started the conversion, this process can not be stopped.
- The conversion time depends on the size of the database and the performance of the
computer. It may take up to one hour. 4
Specify the access data for the database administrator and enable the Backup database
option.
Confirm your entries with OK. The DB backup location dialog box will open
4
Fig. 4 - 14 DB backup location
Before performing the conversion, the system creates a backup file of the database. Specify
the folder for this file in the Folder for database backup field. Click on the Browse ...
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 11/2020 EN
52
button to select an existing folder.
Confirm your choice with OK. The database will be converted. This may take up to one
hour. The conversion time depends on the size of the database performance of the
computer.
4
Fig. 4 - 15 DB backup
After successful conversion of the database, the following information window will open:
4
Fig. 4 - 16 Success
Click OK. You can now continue with the line configuration process.
Dependent of the database size, you can compress the database, the following information
window will open:
4
Fig. 4 - 17 Database compression
NOTE
We recommend activating this DB compression step, when the user has restored the
SIPLACE Explorer line database or has moved the raw database files to another disk or to
another computer.
With the DB compression it is possible to avoid extended access times of the websites. 4
Click Yes, to compress the database at next DB maintenance.
4
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.1 Standard Monitoring Application (SMA)
53
After you have established the database connection and converted the database for SIPLACE
Explorer 3.11, you need to define the maintenance details for the system database, with the
Maintenance button.

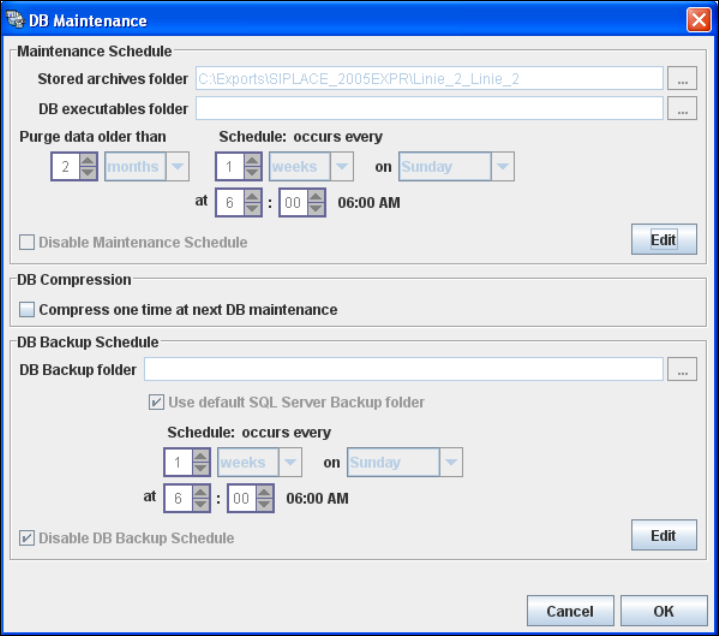

The DB Maintenance dialog box will open. In this dialog box the following functionalities
are available:
– create a new archiving schedule for the database
– edit the default maintenance schedule
– database compression
– automate the database backup
The archiving process involves taking data from the database and saving it in a file, so that
the size of the database can be controlled. 4
All input fields will be disabled. To start or edit a DB maintenance schedule, you must have
administrator privileges for the database and the database connection must already be
established. 4
4
Fig. 4 - 18 DB maintenance
