31.2.ｲﾝｷｬﾘｱ(CSQC) 31.2.In carrier(CSQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 113 . BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X16L FE 114 H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴…

100%1 / 247
31.2.ｲﾝｷｬﾘｱ(CSQC)
31.2.In carrier(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
55 CSQC5420 1 BKT BKT X-No｡627∼X-No｡1326 FE
56 CSQC5321 1 BKT BKT X-No.627∼ FE
57 CSQC5331 1 BKT BKT X-No.627∼ FE
59 CSQC5400 1 BKT BKT X-No.627∼ FE
60 CSQC5390 1 PLATE ﾌﾟﾚｰﾄ X-No.627∼ FE
61 CSQC4910 1 BKT BKT FE
64 CSQC0480 4 BLOCK ﾌﾞﾛｯｸ FE
65 CSQC4961 2 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
67 CSQC6340 1 RETAINER 押え FE
69 S3141B 2(3) SW, PHOTOELECTRIC SW 光電 DL-S3R OT
70 S20655 4 CYLINDER ｼﾘﾝﾀﾞ CDAS16X15-ZE155B1 OT
72 S31207 3 SW, PHOTOELECTRIC SW 光電 EE-SX771A OT
73 S31208 3 SW, PHOTOELECTRIC SW 光電 EE-SX772A OT
77 A10622 2 AMPLIFIER ｱﾝﾌﾟ FS-V1 注2. Note.2,取り付けﾎﾞﾙﾄ付 OT
78 CSQC5381 2 FIBER UNIT ﾌｧｲﾊﾞ ﾕﾆｯﾄ X-No.627∼ OT
83 CSQL0261 1 CYLINDER, RODLESS ｼﾘﾝﾀﾞ ﾛｯﾄﾞﾚｽ OT
84 IQC6072 10
NUT
ﾅｯﾄ          FE
85 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
86 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
87 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
88 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
89 W1042A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-3 FE
90 W1043A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-4 FE
91 W1044A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-5 FE
92 N1076A
NUT, HEX
ﾅｯﾄ 六角 M3 P=0.5 FE
93 N1080A
NUT, HEX
ﾅｯﾄ 六角 M4 P=0.7 FE
96 K5257A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M4X8L FE
98 .
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋 M3X8L FE
99 K5178T
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋 M3X12L FE
100 N4024A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め M3X12L FE
101 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X6L FE
102 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X8L FE
103 H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X10L FE
105 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X8L FE
106 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L FE
107 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X12L FE
108 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X20L FE
109 H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X8L FE
110 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X10L FE
111 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12L FE
112 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X15L FE
CP-643E PARTS LIST
31 - 6
31.2.ｲﾝｷｬﾘｱ(CSQC)
31.2.In carrier(CSQC)
31.2.ｲﾝｷｬﾘｱ(CSQC)
31.2.In carrier(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
113 .
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X16L FE
114 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X18L FE
115 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X20L FE
116 H5331A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X45L FE
117 H5164A
BOLT, HEX
ﾎﾞﾙﾄ 六角       M3X8L FE
118 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X18L FE
119 CSQC4970 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
120 CSQC5440 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
121 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
122 H5303A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X22L FE
123 CSQC4950 1 RETAINER 押え FE
124 CSQC5190 2 SPACER ｽﾍﾟｰｻ t=0.1 注1. Note.1 FE
125 CSQC5200 2 SPACER ｽﾍﾟｰｻ t=0.2 注1. Note.1 FE
126 CSQC5210 2 SPACER ｽﾍﾟｰｻ t=0.3 注1. Note.1 FE
127 CSQC5220 2 SPACER ｽﾍﾟｰｻ t=0.4 注1. Note.1 FE
128 CSQC5230 2 SPACER ｽﾍﾟｰｻ t=0.5 注1. Note.1 FE
130 Y3079N 8 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5 OT
131 CSQC5311 2
BOLT, ADJUSTING
ﾎﾞﾙﾄ ｾﾘ X-No.627∼ FE
132 CSQC5340 1 BKT BKT X-No.627∼ AL
133 K5178Z
SCREW, C/R PAN
小ﾈｼﾞ 十穴鍋 M3X16L FE
134 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L FE
135 CSQC6160 1 BKT, SENSOR BKT ｾﾝｻ FE
136 CSQC5520 1 BKT, SENSOR BKT ｾﾝｻ FE
137 DCQK0491 2 BKT BKT FE
138 S1031A 8 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW-10 FE
139 H4287T 4 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ LM5UU FE
140 N1082A NUT, HEX ﾅｯﾄ 六角 M5 . FE
注1. 仕様選択部品
Note.1 : Specified part selection.
注2. X-No.630,X-No.636,X-No.642,X-No.644,X-No.645,X-No.647∼
Note.2 : X-No.630,X-No.636,X-No.642,X-No.644,X-No.645,X-No.647∼
CP-643E PARTS LIST
31 - 7
31.2.ｲﾝｷｬﾘｱ(CSQC)
31.2.In carrier(CSQC)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
105
106
103
103
106
105
108
8
109
105
106
106
105
B
106
106
104
105
103
A
8
103
105
104
A
B
B
A
107
68
76
107
107
107
107
107
107
68
76
107
68
76
107
68
76
107
68
76
107
102
83
89
82
82
97
82
20
97
82
20
97
82
20
97
82
20
97
82
20
82
82
96
68
76
89
96
89
68
76
68
76
68
76
96
68
76
89
96
89
96
89
82
89
68
76
97
82
97
82
97
82
97
82
97
82
82
82
89
83
82
82
86
98
82
86
77
7
79
78
77
78
79
78
79
77
78
7
79
77
73
73
68
76
107
55
91
55
91
98
35
34
20
20
20
20
20
97
20
97
97
20
19
19
97
50
97
18
97
16
16
15
15
14
82
14
13
13
102
82
96
89
89
97
96
96
97
97
97
7
7
101
4
101
101
5
101
6
65
6
6
3
2
x5

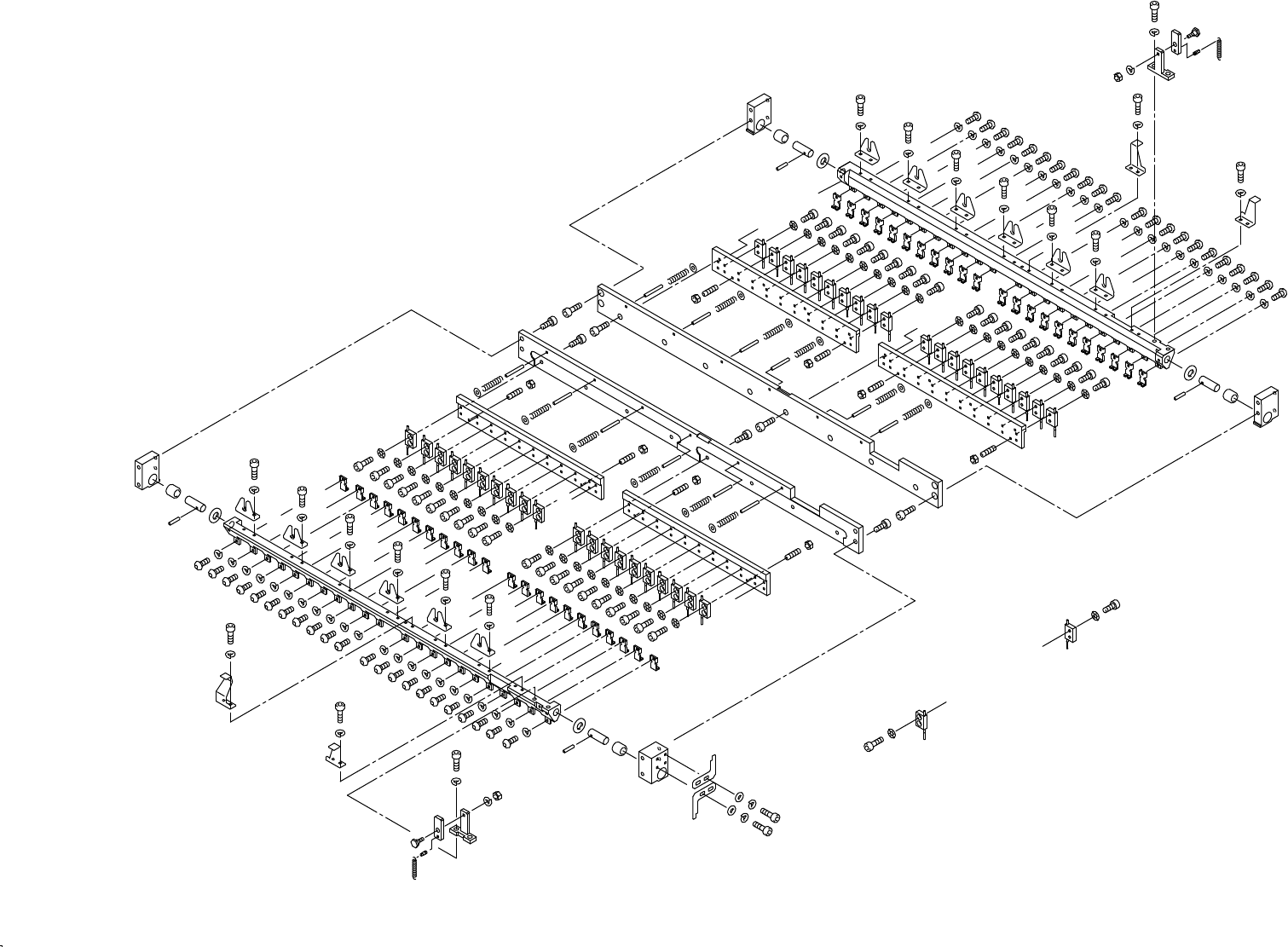

32 - 1
