Wincon™ is an advanced windows-based software system for controlling the operation of BTU thermal processing equipment. Wincon combines both the simplicity of a graphical user interface with powerful diagnostic and analy…
ELIMINATE SOLDER VOIDS
ELIMINATE SUBSTRATE WARPAGE
ELIMINATE CHANGEOVER TIME
The Global Standard of
Excellence for Solder Reflow
Wincon™ is an advanced windows-based
software system for controlling the
operation of BTU thermal processing equipment. Wincon combines
both the simplicity of a graphical user interface with powerful
diagnostic and analytical tools. Wincon is used in conjunction with
BTU’s proprietary Intellimax controller on all BTU systems, including
the Pyramax family of convection reflow ovens.
POW ERED BY
• Automatic recipe
generator
• Reduces oven
set-up time
• Exclusive convection
rate algorithm
• Automatically reduces
reflow oven
operating costs
• Takes advantage of
idle time
• Quick recovery
using SMEMA or
remote sensor
• Redundant process
monitor
• Enables product
traceabilty when used
with a barcode reader
• Fully integrated
with MES/factory
communication
• Reduces peak power
usage allowing for
lower connected load
• Optimizes power use
automatically within an
overall given %
• Allows for fastest
start-up/response while
total power is limited
• CFX (Connected Factory
Exchange) is a message
system to the CFX host
• Provides vertical messaging
on machine data
• Complimentary to the
IPC-Hermes horizontal
communication standard
• Machine-to-machine
communication/horizontal (M2M)
• Improves board flow
management and traceability
through all stations of SMT line
• Complimentary with IPC-CFX
vertical communication standard
The Industry’s Most Powerful Oven Control System
INDUSTRY
4.0 READY
BTU is ready for Industry 4.0 and
offers many solutions today:
• Custom MES Interface
• SECS/GEM
• OPC
• REST/JSON/MQTT
USA MADE QUALITY SINCE1950

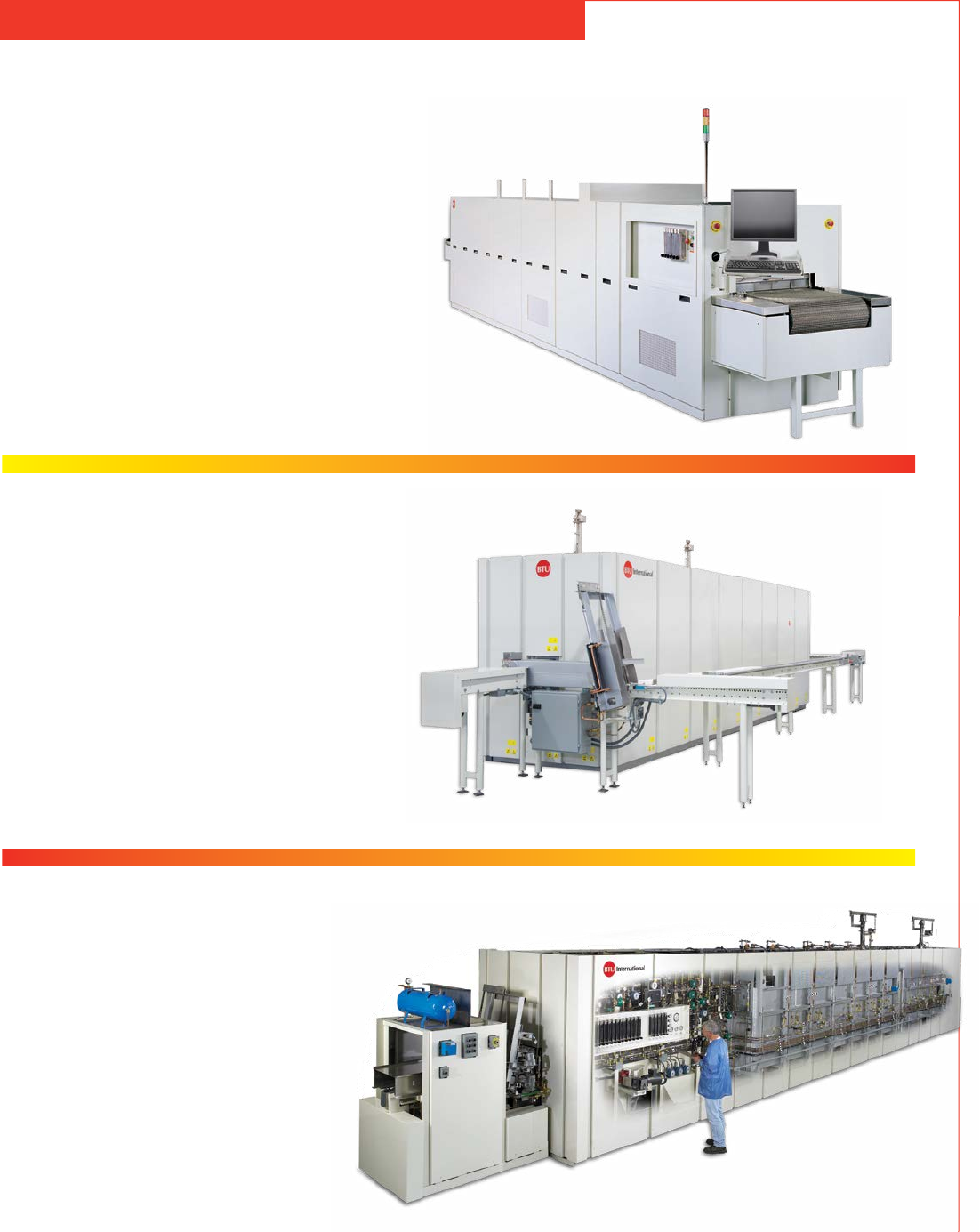

Precision Controlled Atmosphere Belt Furnaces
USA MADE QUALITY SINCE1950
Controlled Atmosphere Furnaces
• Process temperatures up to 1180˚C
• Air, nitrogen, or hydrogen atmospheres
• Atmosphere purity down to 2 ppm
• Muffle or muffle-less configurations available
Pusher Furnaces
• Heavy loads and very high temperatures
• Process temperatures up to 1800˚C
• Air, nitrogen, or hydrogen atmospheres
• Precise control of O
2
ppm and dew point
Walking Beam Furnaces
• Very heavy loads and very high
temperatures
• Patented beam transport system for
high stacking capability
• Process temperatures up to 1800˚C
• Full range of oxidizing and reducing
atmospheres
• Precision controlled atmosphere purity
