DC SIGNAL SOURCE
Signal Source & Calibrator
SS7012
DC Signal Source Supplies and
Measures Signals Simultaneously
The HIOKI DC SIGNAL SOURCE SS7012 can be used not only for instru-
mentation system (4-20 mA) maintenance, but also for maintaining and servicing
thermostatic devices, distributors, and industrial meters, as well as for evaluating
electronic circuits and devices, and for production facility maintenance.
The signal source also supplies thermoelectromotive force corresponding to eight
types of thermocouples. Furthermore, this compact DC signal source simultane-
ously sources and measures signals.
Improved stability and lower
calibration costs
C o n d u c t l o o p t e s t i n g o f
instrumentation systems (4-20 mA)
Validate thermostatic devices and
distributors
Use as a calibrator and low-power
generator for production facilities
maintenance and electronic device
evaluation
2
Use as A Hand-Held Field Calibrator for Loop
Testing of Instrumentation Systems, and for
Production Facility Maintenance
Example applications
• Instrumentation system loop testing (4-20 mA)
• Validate thermostatic devices and distributors
• Use as a calibrator and low-power genera-
tor for production facilities maintenance and
electronic device evaluation
• Use as an electronic load (max. 25 mA DC)
• Simultaneously sources up to ±25 V and ±25 mA
while measuring up to ±28 V and ±28 mA (DC)
•
Eight thermoelectromotive force sourcing (TC)
modes (K, E, J, T, R, S, B, and N)
•
TEMP measurement from -25 to 80°C
•
Improved stability and lower calibration costs
•
Control from a PC via USB connection
SS7012 Features
24 V DC Source
(using the Monitor function)
SS7012
Two-Wire
Transmitter
Sensor
4-20 mA

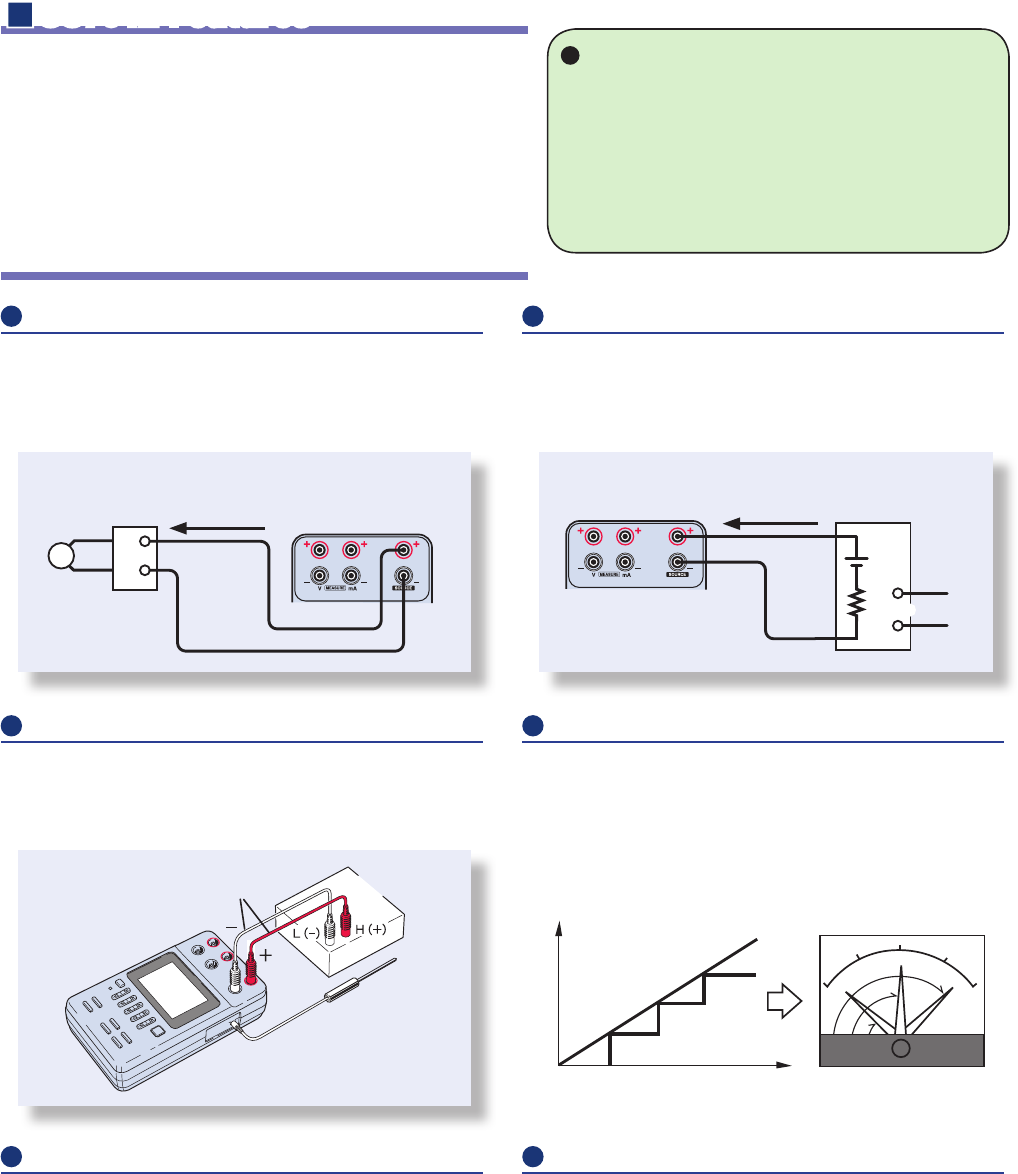

Veri es proper sensor output (two-wire transmitter sensors). The
SS7012 applies distributor power to the sensor as a constant-
voltage (CV) output, and monitors current output from the sensor.
Loop test (two-wire transmitter sensor)
4-20 mA Current Source
SS7012
Distributor
Out
put Device
4-20 mA
Test distributor operation. Apply the default current from the
SS7012 as a substitute for sensor current output. Set SS7012 po-
larity to negative (to operate as a sink).
Loop test (distributor)
Substitute the output of sensors such as TC (thermocouple) volt-
age, current and resistance with TC, CV, CC and Rs (100 Ω) test
signals from the SS7012.
Thermometer calibration (TC, CV, and CC source)
Place Temperature
Probe near ther-
mometer terminals
Thermometer
TC (RJ) Source
SS7012
Copper Wire
or similar
Up to 20 levels can be stored for each source function, which can
be recalled manually or in sequence automatically (auto scan).
Use this function for meter checking, repetitive adjustments, and
linearity testing.
Store up to 20 steps in memory
Output
Time
Recall or Auto Scan Output
Use the optional 9184 Temperature Probe to measure tempera-
tures from -25 to 80°C. As well as measuring ambient tempera-
ture, you can calibrate thermoelectric thermometers with refer-
ence junction compensation TC (RJ).
Temperature measurement
Despite the small size and light weight, the high precision and
stability of ±0.03% for CV and CC sourcing, and ±0.05% ±0.5°C
*
for TC (0°C) sourcing, have one-year guaranteed accuracy. The
compact hand-held design is convenient for travel, eld calibra-
tion, and servicing applications.
*
For TC (0°C) sourcing of K, E, J, and T thermoelectromotive force .
Portable, precise and stable
3
Use as A Signal Source for Production Facility
Maintenance, plus Electronic Device Testing and
Evaluation.
Input
Electronic Circuit or Device
SS7012
Output
Source up to ±25.000 V and ±25.000 mA while measuring up to
±28.000 V and ±28.000 mA. Isolated source and measurement
circuits can increase operating efficiency for applications such
as simultaneous input and output testing of transducers using a
single instrument.
Simultaneous voltage and current
sourcing and display
SS7012 Sample PC Application Screen
The SS7012 PC application is available at no cost from the HIOKI
website.
USB
Cable
Use as a portable signal source for electronic device testing and
evaluation. Full external control is available via the USB inter-
face.
*
*
Only for communicating with a PC. Accessing USB memory is not supported.
Small source applications

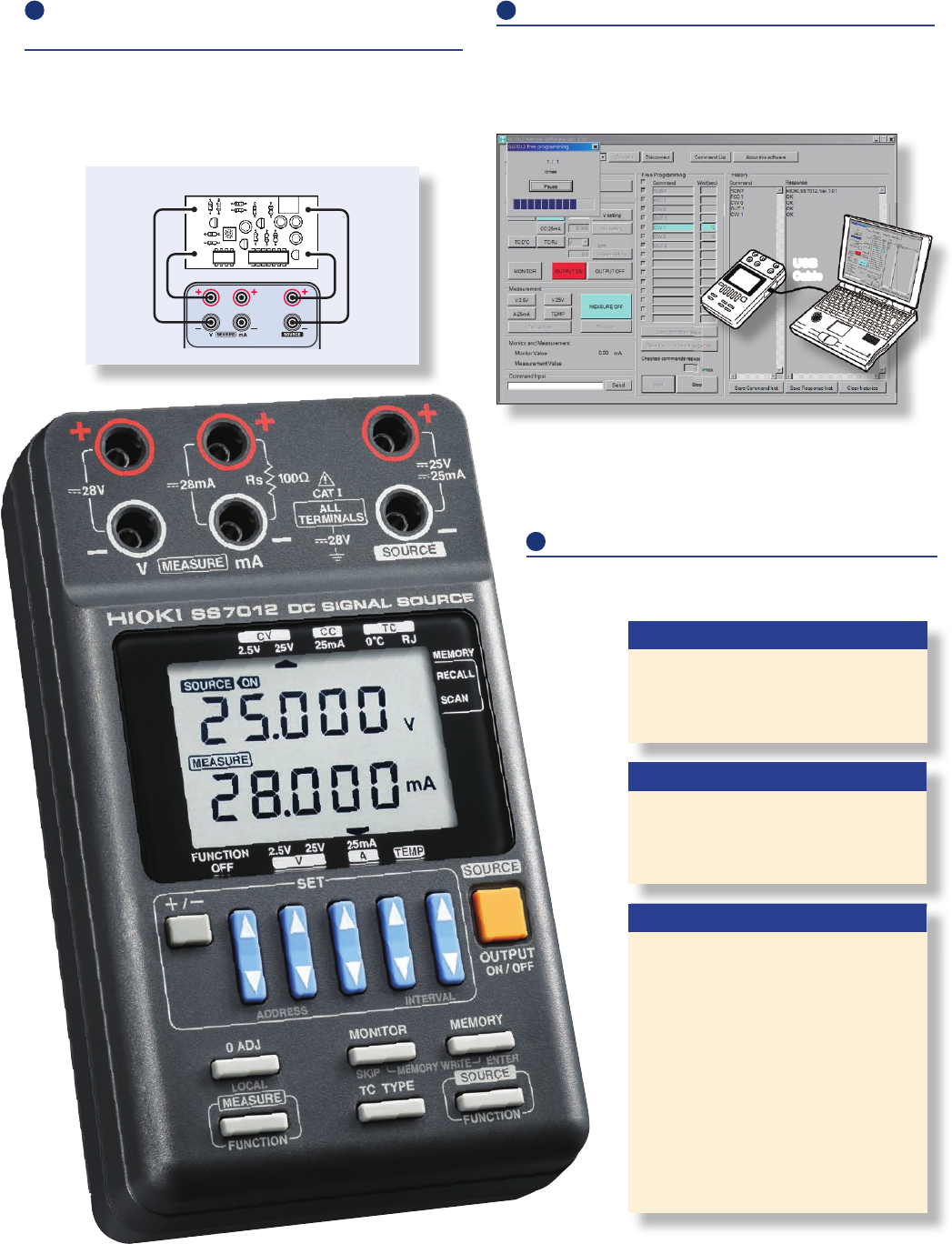

[SOURCE FUNCTION]
Source function selection key
[TC TYPE]
Emulated thermocouple type
selection key
[MEMORY]
Memory source setting key
[SET]
Source level setting keys (for each digit)
[ +/– ]
Source polarity selection key
[OUTPUT]
Source output on/off key
[MEASURE FUNCTION]
Measurement function selection key
[0 ADJ]
Measurement zero adjustment key
[MONITOR]
Measurement/Monitor value
selection key
Operation keys
• Bar indicates selected function
• Display of thermocouple setting for TC
function
• Set level and on/off output state
Source display
• Bar indicates selected function
• Measured value or output value monitor
• Display of address and interval for
memory setting and output
Measurement display
Intuitive operation is ensured by an up/down key for each set-
ting digit, allowing quick output setup.
Easy key operations
