- 1 - 1. XY ASSY ２ ５ ６ ９ ７ ８ １０ １０ １０ ４ ３ １２ １１ １３ １３ １４ １５ １６ １７ １７ １８ １８ １９ ２０ ２４ ２４ ２５ ２５ ２５ ２３ ２３ ２１ ６ ２１ ２１ ２１ Ａ Ａ ６ １ ２２ ２６
CONTENTS
1. XY ASSY ..............................................................................................................................................................................1
2. CAMER UNIT ASSY ............................................................................................................................................................3
3. COVER ASSY ......................................................................................................................................................................5
4. SYSTEM DIAGRAM (1) .......................................................................................................................................................7
5. SYSTEM DIAGRAM (2) .......................................................................................................................................................9
- 1 -

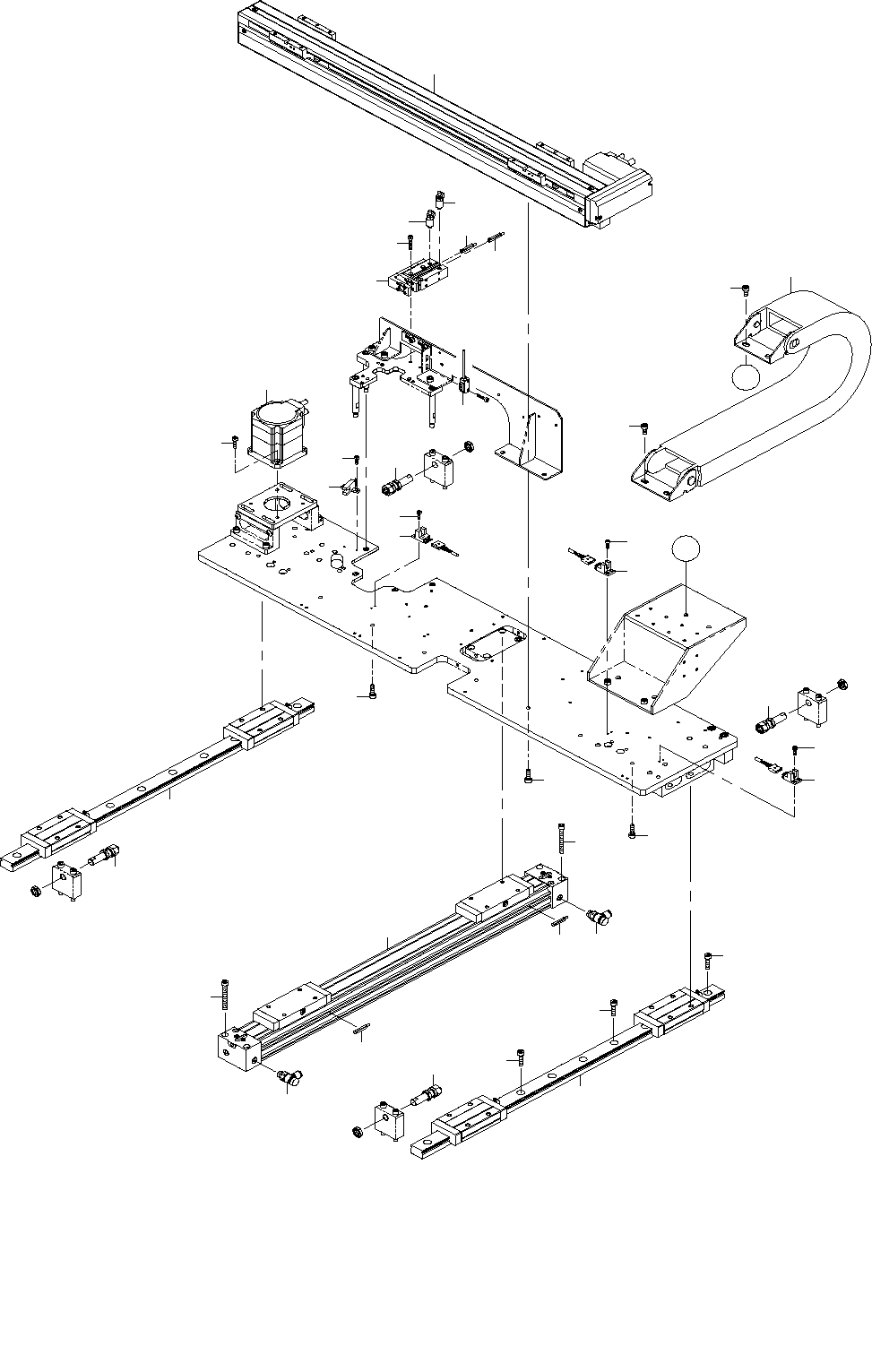

1. XY ASSY
２
５
６
９
７
８
１０
１０
１０
４
３
１２
１１
１３
１３
１４
１５
１６
１７
１７
１８
１８
１９
２０
２４
２４
２５
２５
２５
２３
２３
２１
６
２１
２１
２１
Ａ
Ａ
６
１
２２
２６
- 2 -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 402-39104 MOTOR 1
2 SM-6041402-TT SCREW M4 L=14 4
3 402-46812 SENSOR_02_ASM 1
4 SM-6031002-TT SCREW M3 L=10 2
5 402-39105 ACTUATOR 1
6 SM-6051602-TT SCREW M5 L=16 8
7 402-46811 SENSOR_01_ASM 1
8 402-46813 SENSOR_03_ASM 1
9 402-46814 SENSOR_04_ASM 1
10 SM-6031002-TT SCREW M3 L=10 6
11 PA-0602009-A0 AIR CYLINDER 1
12 SM-6032002-TT SCREW M3 L=20 3
13 PC-0105080-00 SPEED CONTROLLER 1
14 402-46840 DC_CHAIN_INSPECTION_02_WIRE_ASM 1
15 402-46841 DC_CHAIN_INSPECTION_03_WIRE_ASM 1
16 402-39085 RODLESS_CYLINDER 1
17 SM-6054502-TT SCREW M5 L=45 4
18 PC-0151030-00 SPEED CONTROLLER 2
19 402-46846 DC_CHAIN_INSPECTION_08_WIRE_ASM 1
20 402-46847 DC_CHAIN_INSPECTION_09_WIRE_ASM 1
21 402-39113 SHOCK_ABSORBER 4
22 402-39115 CABLEVEYOR 1
23 SM-6051002-TT SCREW M5 L=10 4
24 402-39087 LINEAR_WAY 2
25 SM-6052002-TT SCREW M5 L=20 10
26 402-46839 DC_CHAIN_INSPECTION_01_WIRE_ASM 1
