- 4 - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 402-46856 COAX CAMERA MONO 2 2 402-27774 LENS 2 3 SM-6030402-TT SCREW M3 L=4 8 4 402-55144 PROJECTOR_ASSY_TM1000_ID10 2 5 402-55146 PROJECTOR_ASSY_TM1000_ID00 2 6 402…
- 3 -

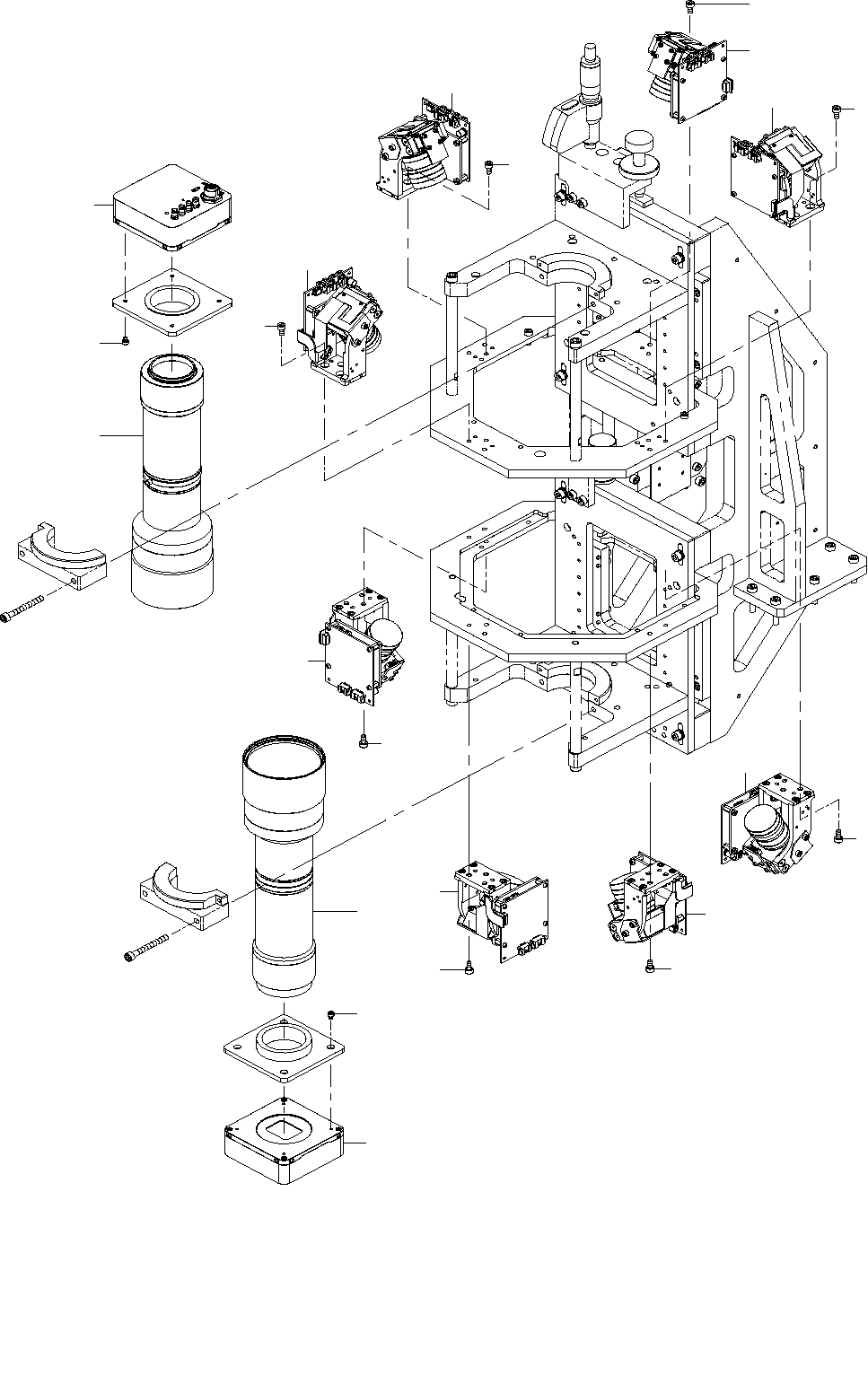

2. CAMER UNIT ASSY
１
３
１
２
３
４
８
８
４
５
８
８
５
６
８
６
８
８
７
７
８
２
- 4 -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 402-46856 COAX CAMERA MONO 2
2 402-27774 LENS 2
3 SM-6030402-TT SCREW M3 L=4 8
4 402-55144 PROJECTOR_ASSY_TM1000_ID10 2
5 402-55146 PROJECTOR_ASSY_TM1000_ID00 2
6 402-55148 PROJECTOR_ASSY_TM1000_ID11 2
7 402-55150 PROJECTOR_ASSY_TM1000_ID01 2
8 SM-6030602-TT SCREW M3 L=6 24
- 5 -
3. COVER ASSY
１０
９
８
６
７
７
６
９
８
５
５
３
３
１
４
４
１
２
２
１
１
