Main options □ Automatic XL-re-dosage unit for 25 l detergent and 5 l additive container □ Automatic water change for cleaning circuit (only HT version) □ Descaling unit to reduce the lime content in the rinsing water □ …
Main standard features
□ PowerSpray
®
technology bundle: magnetically coupled XXL-Power (tank A) and S-Power (tank B, tank C) pump units, twofold
ASYNCHRO
®
volume-spray rotorsystem with low maintenance PTFE mounted stainless steel rotors with PUSHFORCE
®
nozzles, "Option100" software program (100 freely selectable programs)
□ EATON Programmable Logic Controller (PLC)
□ High resolution 10" (1,024 x 600 px) display with capacitive multi-touch and intuitive process view
□ Electrically driven large double-wall airlock door: transparent or process-related with internal pane made of stainless steel
□ Lower VA drawer basket, ESD-safe with grounding connection for the operator
□ Cartridge fine filter for cleaning and both rinsing circuits
□ Full flow coarse filter (process chamber)
□ Heater for tank A (cleaning)
□ Automatic monitoring of ionic residues contamination and gauging of rinse water quality
□ Adjustable DI / DM water mixing and blending unit
□ VMH
®
hot air evaporative drying (control range approx. 70 - 90 °C / 158 - 194 °F)
□ ClosedLoop reprocessing of cleaning and rinsing fluids
□ Spare space for MB- / DI-cartridge for deionized (DI) and demineralized (DM) water
□ Exchange for rinse water and pump out unit
□ Safety features: safety interlock on the process chamber door, overflow alarm for all tank sections, overheating protection for
all heating and drying elements, end switches for all motor-driven valves and drives, personnel protection insulation
□ Process sections made of electrolysis resistant elements
Page 3 of 5
Part number: 0905PSE9LX31 / 0905PSE9LX41 (HT version)
Fully automatic PowerSpray
®
XXL economy cleaning system
for PCBs with three circuits and three tanks
11/2020
PSE LX9
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020
Main options
□ Automatic XL-re-dosage unit for 25 l detergent and 5 l additive container
□ Automatic water change for cleaning circuit (only HT version)
□ Descaling unit to reduce the lime content in the rinsing water
□ Drip & storage reservoir
□ Exhaust unit
□ HT Version for high temperature cleaning up to 80 °C / 176 °F
□ MB / DI cartridge for deionized (DI) and demineralized (DM) water
□ MediumWipe
®
unit for further optimization of detergent and rinsing fluid use
□ Permanent automatic rotor run control
□ Speed load cart (reduces downtime for loading by more than 75%)
□ Status light fivefold to display the current process state
□ Traceability "Basic" (SPC data scanner, data backup in CSV file, backup via SD card via slot in the PLC)
□ Upper VA drawer baskets with ASYNCHRO
®
PTFE mounted stainless steel TopDown-double rotors with
PUSHFORCE
®
special nozzles
□ XL-Power pump units for tank B and tank C
Page 4 of 5
Part number: 0905PSE9LX31 / 0905PSE9LX41 (HT version)
Fully automatic PowerSpray
®
XXL economy cleaning system
for PCBs with three circuits and three tanks
11/2020
PSE LX9
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020

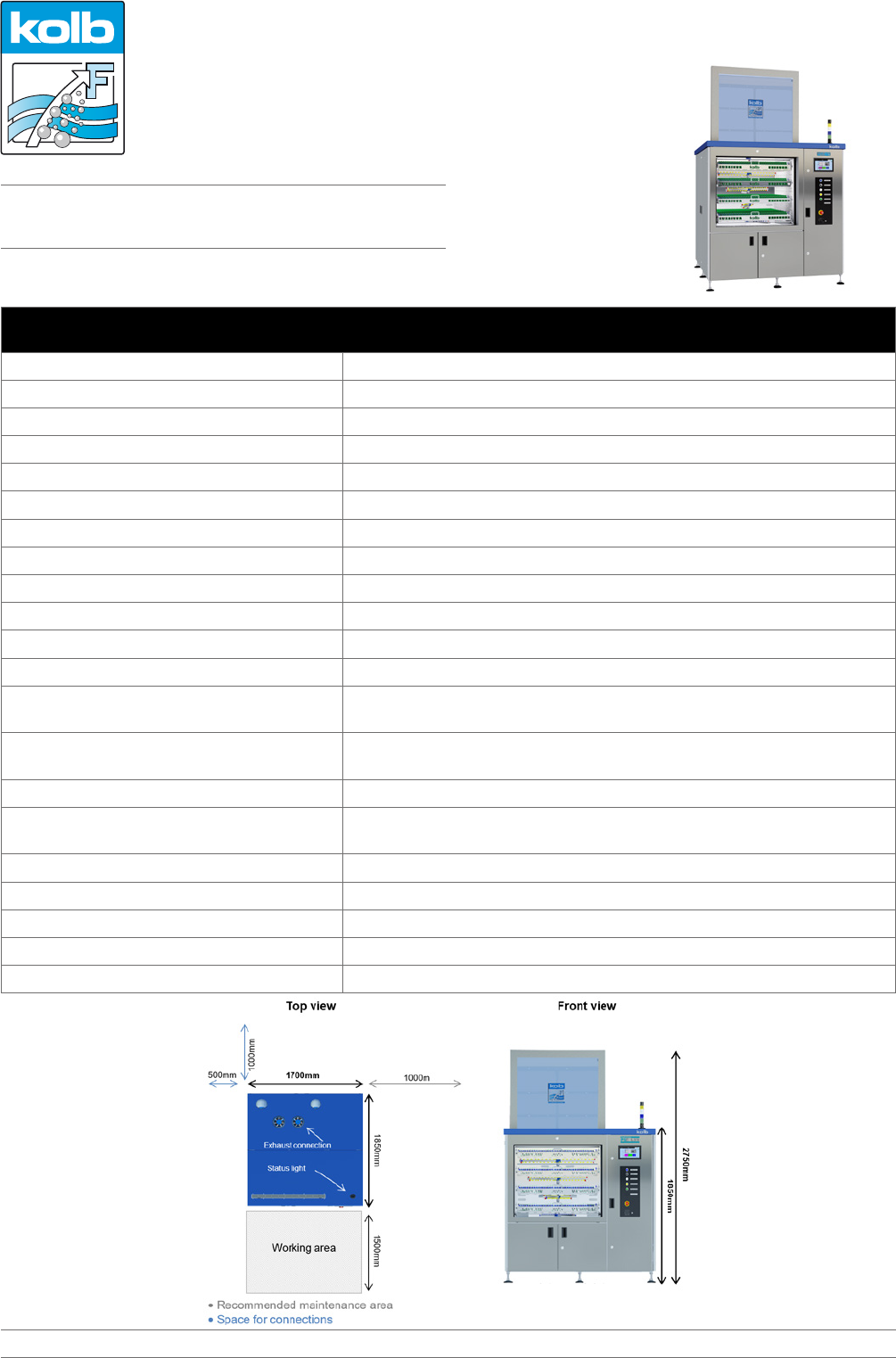

Technical data
Technology base kolb PowerSpray
®
Capacity 830 (19 m
2
/ (204.5 ft
2
) eurocards
Process chamber dimensions W 970 ▪ D 955 ▪ H 900 mm (W 38.18" ▪ D 37.59" ▪ H 35.43")
Usable space lower basket only W 880 ▪ D 890 ▪ H 760 mm (W 34.65" ▪ D 35.04" ▪ H 29.92")
Usable space utilizing four baskets W 880 ▪ D 890 ▪ H 150 mm (W 34.65" ▪ D 35.04" ▪ H 5.9") four times
Volume tank A (cleaning), tank C (DI-rinsing) 125 l each
Volume tank B (rinsing) 100 l
Power supply 400 V AC, 32 A, CEE-plug / 3 Ph / 50 or 60 Hz
Power consumption 18 kW
Control system PLC (EATON)
Temperature load up to 55 °C (131 °F) standard system, up to 80 °C (176 °F) HT-version
Control range drying approx. 70 - 90 °C (158 - 194 °F)
Filter system
up to three stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter
inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent)
Supply connection 1 (tap water)
connection for 1" hose, with 30µm water filter (prov. by customer: inlet water
quality < 350 μS conductance value (< 10° dH) or option descaling unit)
Supply connection 2 (DI / DM water) connection for 1" hose, (DI-net prov. by customer or bridging to tap water)
Supply connection 3 (compressed air)
6 - 8 bar (87 - 116 psi) - 100 l / min for options HT-version or MediumWipe
®
,
connection for 8 mm (0.31") compressed air hose
Rinse water drain connection (with integrated pump out system) connection for 1" hose
Exhaust connection Ø 160 mm (6.3"), exhaust capacity > 1,100 m³ / h (38,847 ft³ / h)
Operating condition room temperature 20 - 35 °C (68 - 95 °F)
Operating noise 63 dB (A)
Footprint / Empty weight 1,700 x 1,850 mm (66.9" x 72.8") / 920 kg (2,028 lbs)
