GENERAL INFORMATION
The AirJet
®
cleaning systems represent unique air-
bubbling technology developed and manufactured by
DCT.
Air-bubbling technology machines are developed
for gentle yet highly effi cient maintenance cleaning
of re ow and wave soldering machines such
as soldering frames,  lters, heat exchangers, etc.
The AirJet
®
“Piano” can also be off ered for the removal
of conformal coatings. AirJet
®
cleaning systems are available
in several sizes and with diff erent levels of automation of the
cleaning process.
AirJet
®
4127 CRD including 100% separated processes
of cleaning, rinsing and drying technologies.
All processes are automated and take place
in 3 separate process chambers, which are also
storage tanks.
Cleaning takes place in the  rst inlet chamber, where the
operator places the basket with parts. Then the operator
manually moves the basket with the cleaned parts into the
secondary rinse chamber. The operator then moves the
basket to the last drying chamber.
All 3 chambers can be used in parallel, which
increases the machine’s cleaning capacity and reduces
cross-contamination when compared with single-chamber
devices.
The AirJet
®
4127 CRD is designed for the maintenance
cleaning of refl ow ovens and wave soldering machines.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
AirJet
®
4127 CRD 
TECHNICAL DATA SHEET
3
www.dct.cleaning
R
C
D
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Re ow and soldering parts
30 – 50°C 86 – 122 °F 35 min. 288 **
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
AirJet
®
4127 CRD 
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1900 x 1550 x 1465 mm 74.8 x 61 x 57.7 in
Weight 480 kg 1058 lbs
Ø energy consumption per cycle 1,65 kWh 1.65 kWh
Cleaning and rinsing  uid consumption per
cycle
0,05 – 0,3 l 0.01 gal - 0.08 gal
Compressed air consumption per cycle 83 l / 5 Bar 0.79 gal / 72.5 PSI
Max. dimensions of the cleaned parts 430 x 1280 x 700 mm 16,93 x 50,39 x 27,56 in
Dimensions of the carrier basket 410 x 1210 x 670 mm 16,14 x 47,64 x 26,38 in
Volume of the storage tanks (clean, rinse) 400 l 400 l
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 5,7“ touchscreen PLC + 5.7“ touchscreen

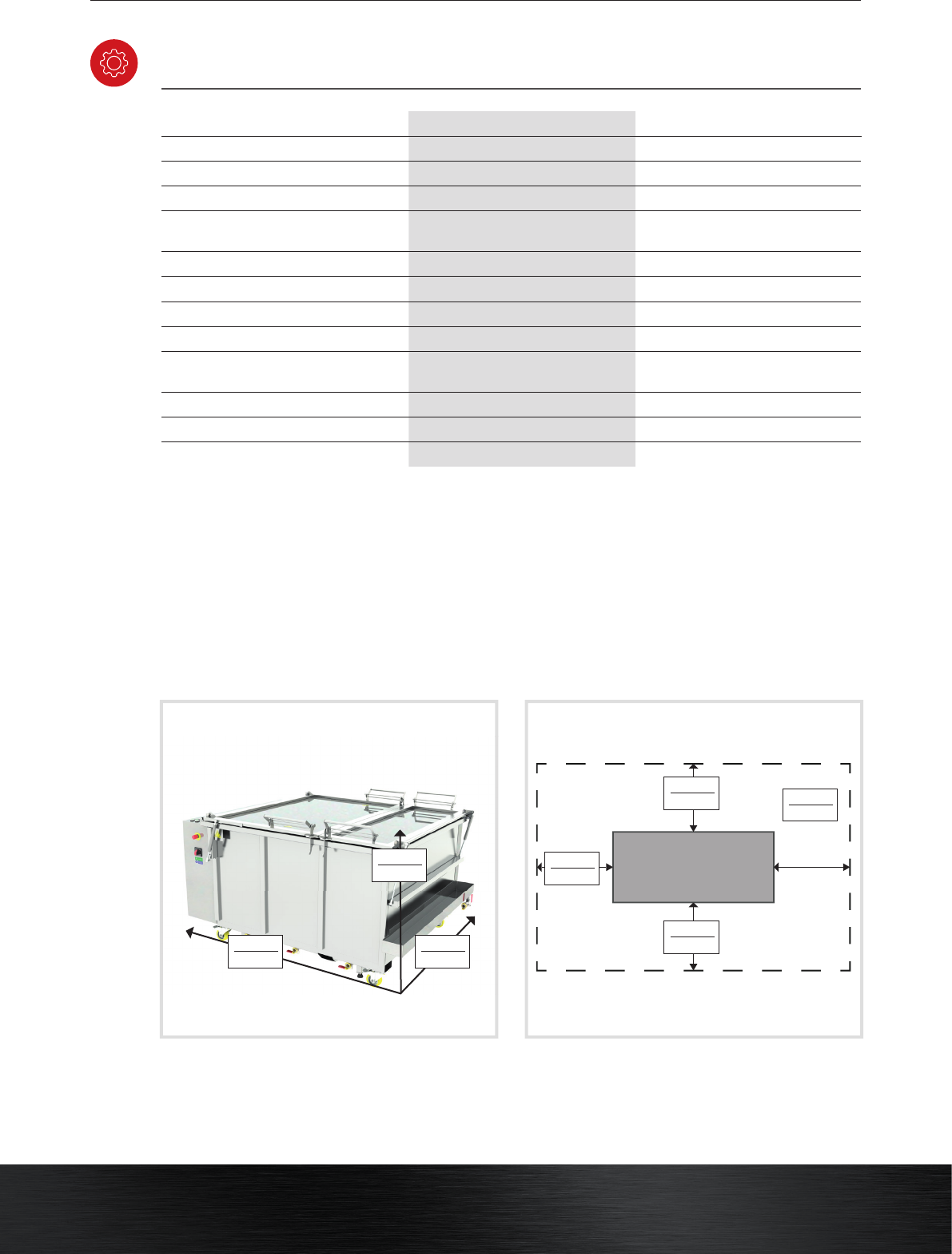

TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
1465 mm
57.7 in
1900 mm
74.8 in
1550 mm
61 in
metric units imperial units
