AirJet ® 4127 CRD TECHNICAL DATA SHEET 4 www.dct.cleaning Dimensions (w x l x h) 1900 x 1550 x 1465 mm 74.8 x 61 x 57.7 in Weight 480 kg 1058 lbs Ø energy consumption per cycle 1,65 kWh 1.65 kWh Cleaning and rinsing  ui…

100%1 / 8
AirJet
®
4127 CRD 
TECHNICAL DATA SHEET
3
www.dct.cleaning
R
C
D
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Re ow and soldering parts
30 – 50°C 86 – 122 °F 35 min. 288 **
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
AirJet
®
4127 CRD 
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1900 x 1550 x 1465 mm 74.8 x 61 x 57.7 in
Weight 480 kg 1058 lbs
Ø energy consumption per cycle 1,65 kWh 1.65 kWh
Cleaning and rinsing  uid consumption per
cycle
0,05 – 0,3 l 0.01 gal - 0.08 gal
Compressed air consumption per cycle 83 l / 5 Bar 0.79 gal / 72.5 PSI
Max. dimensions of the cleaned parts 430 x 1280 x 700 mm 16,93 x 50,39 x 27,56 in
Dimensions of the carrier basket 410 x 1210 x 670 mm 16,14 x 47,64 x 26,38 in
Volume of the storage tanks (clean, rinse) 400 l 400 l
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 5,7“ touchscreen PLC + 5.7“ touchscreen
TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
1465 mm
57.7 in
1900 mm
74.8 in
1550 mm
61 in
metric units imperial units
AirJet
®
4127 CRD 
TECHNICAL DATA SHEET
5
www.dct.cleaning
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 14 kW 14 kW
Compressed air connection Pipe Ø 6 mm Pipe ID 0.24 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe capacity 380 m
3
/h 13 400 ft
3
/hod
Minimum liquid for  rst run 2 x 75 l 2 x 106 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1

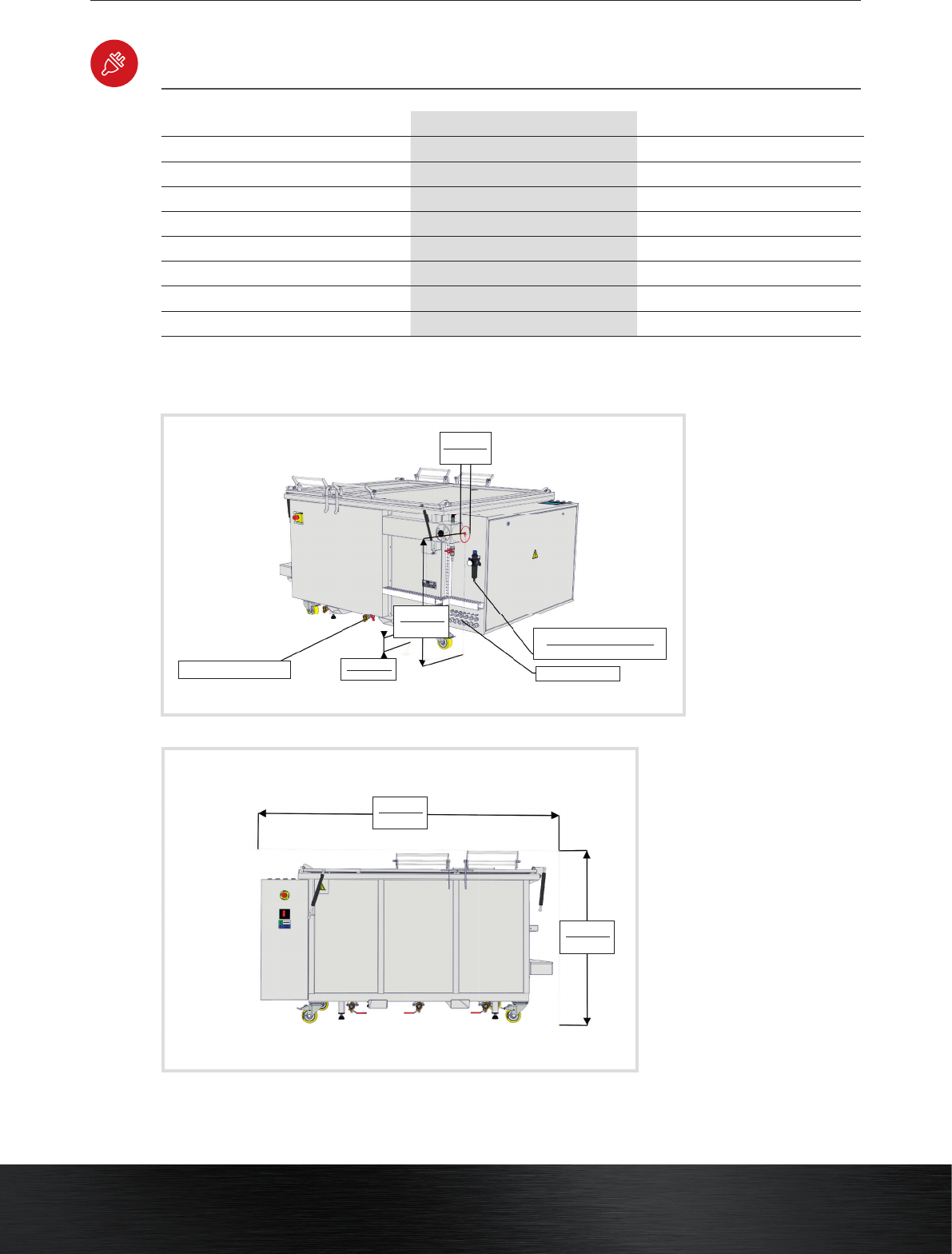

INSTALLATION REQUIREMENTS
BACK
VIEW
BACK
VIEW
815 mm
32.1 in
discharge of the fluids G1“
input el. power
input air pressure Ø 6 mm
input air pressure ID 0.24 in
1105 mm
43.5 in
1905 mm
75 in
Ø 100 mm
ID 3.94 in
95 mm
3.74 in
metric units imperial units
