SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50126
1/5
Lost Board Recover Function
Contents.
Lost Board Recover Function. .......................................................................................................1
1. Introduction ................................................................................................................................2
2. Summary....................................................................................................................................2
3. Specification...............................................................................................................................3
3.1. Target Board position ..........................................................................................................3
3.2. Board status display............................................................................................................ 3
3.3. Operation ............................................................................................................................4
4. Settings ......................................................................................................................................5
5. Limitations..................................................................................................................................5
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50126
2/5
1. Introduction
The target model and the target version of this specification are as follows.
Table 1.1 Target model and object version of this function.
Item name. Object. Remarks.
Target model. YS Series Mounter,YG12 Series Mounter.
Object version. V3.26STD R1.000 or later.
2. Summary
The function of Lost board recover was added from this version.
If the sensor lost a board which is detected before reset (lost board), this function makes an
operator to visually check the board exists or not.
If you confirm that a board exists, it is possible to start producing even with the state of lost
board.
It used to be not possible to start producing regardless of whether the board exist or not, if the
sensor couldn’t detect.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50126
3/5
3. Specification
3.1. Target Board position
It is effective when a board is on the following positions.
Waiting position.
Mounting position.
3.2. Board status display

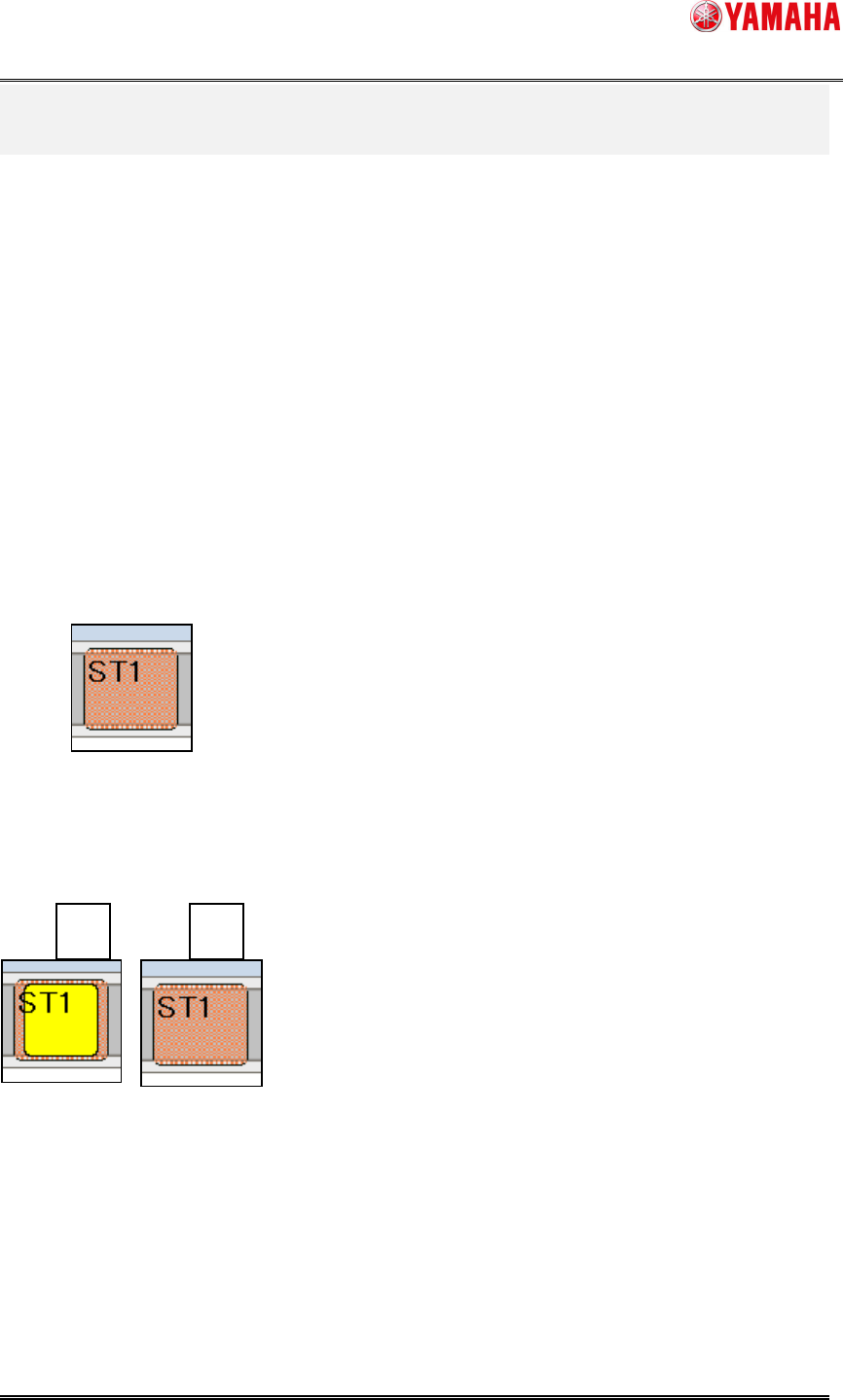

You can see the state of boards on [monitor] - [production] screen.
-StandardSpec
Aboarddetectedbeforeresettingandundetectedafterresettingisindicatedinred
asthefollowingimage.
-Used Board ID
A board detected before resetting and undetected after resetting is indicated in A(yellow on
red) or B(red) as the following images.
A: Board with Board ID
B: Board without Board ID
A
B
