Sonix
®
355 CRRD
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
The Sonix® cleaning systems are a unique ultrasonic
technology developed and manufactured by DCT.
In the past, machines with ultrasonic technology were
used for PCBA, which is no longer used or recommended
due to component sensitivity, miniaturization, higher
rinsing quality requirements, etc.
We recommend Sonix® cleaning systems mainly
for special cleaning applications to eff ectively
remove cured conformal coating.
Exceptionally, they can be used for board cleaning
if the boards are compatible with ultrasonic technology.
They are also suitable for degreasing processes
of metal components.
It can also be used for “dual” application – one chamber
for cleaning of coating frame and pallets, second for
cleaning of re ow oven and wave soldering machine parts.
Sonix
®
355 CRRD including 100% separated
processes of cleaning, pre-rinsing, nal rinsing and drying
technologies.
All processes are automated and take place in
4 separate process chambers, which are also storage
tanks.
Cleaning takes place in the rst inlet chamber, where the
operator places the basket with parts. Then the operator
manually moves the basket with the cleaned parts into the
secondary pre-rinse chamber. The operator then moves
the basket to the nal rinse chamber and nally to the last
drying chamber.
All 4 chambers can be used in parallel, which
increases the machine’s cleaning capacity, reduces
cross-contamination when compared with single-chamber
devices and optimizes rinsing with two rinsing chambers.
Sonix
®
355 CRRD is designed to remove cured conformal
coatings from coating frames, coating machine parts or
coated PCBs for repair and subsequent coating.
In certain cases, Sonix
®
355 CRRD may also be
recommended for PCB cleaning or for degreasing
of metal components.
Sonix
®
355 CRRD
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
R
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Conformal coating removing
40 – 55°C 104 – 131 °F 60 min. 960 * / 80 *
PCB
35 – 55°C 95 – 131 °F 35 min. 1440 **
4 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
C
CLEANING
PRE-RINSING
RINSING
DRYING
R
D
R
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
Sonix
®
355 CRRD
TECHNICAL DATA SHEET
4
www.dct.cleaning

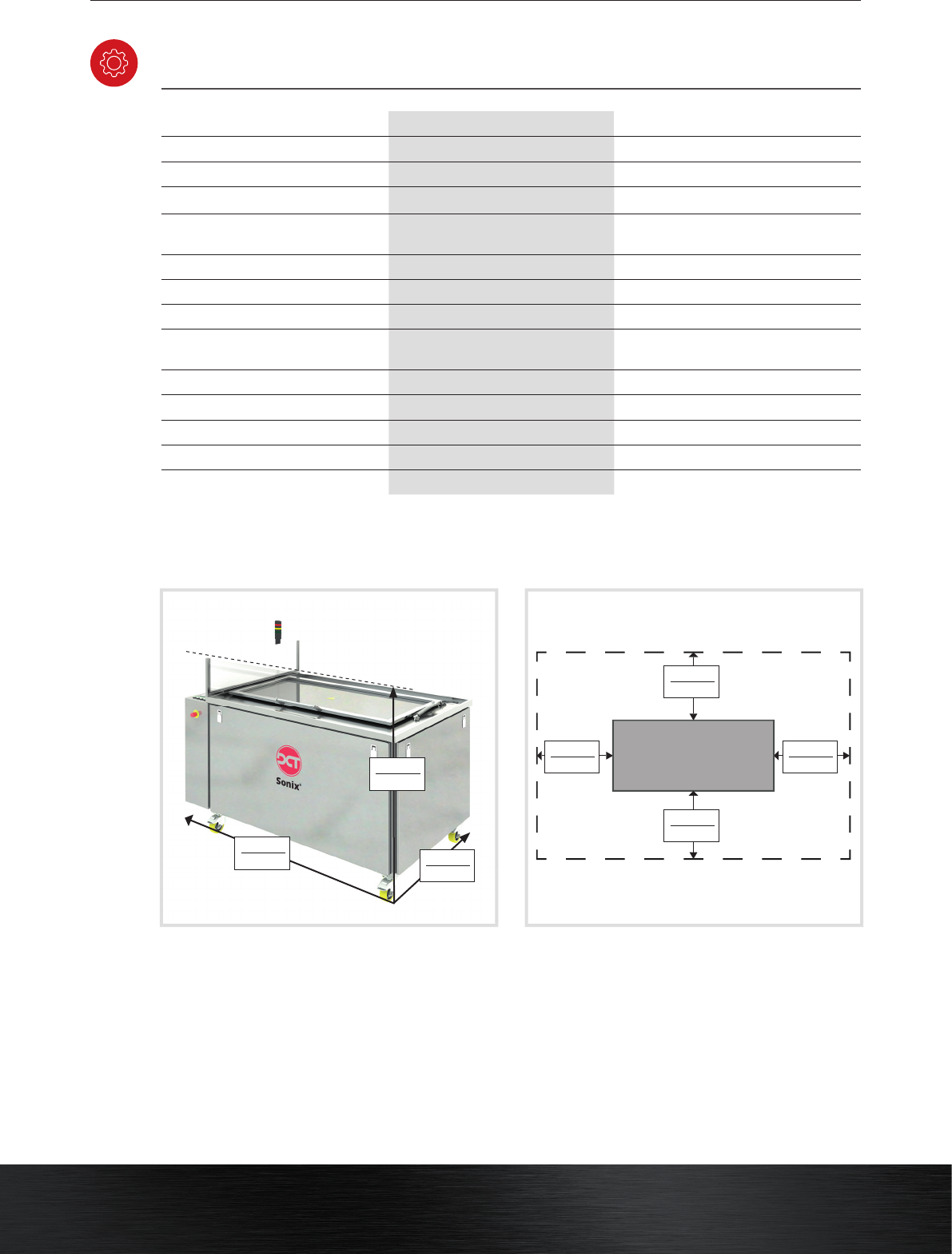

Dimensions (w x l x h) 1740 x 1220 x 1210 mm 68.5 x 48 x 47.6 in
Weight 400 kg 882 lbs
Ø energy consumption per cycle 1.92 kWh 1.92 kWh
Cleaning and rinsing uid consumption
per cycle
0,05 – 0,3 l 0.01 – 0,08 gal
Compressed air consumption per cycle 83 l / 5 Bar 21.9 gal / 72.5 PSI
Dimensions of carrier basket 270 x 530 x 620 mm 10.6 x 20.8 x 24.4 in
Max. dimensions of the cleaned parts 280 x 540 x 630 mm 11,2 x 21,2 x 24,8 in
Temperature range setting
of the cleaning and rinsing uid
From ambient temperature to 60°C From ambient temperature to 140°F
Ultrasound frequency 35 kHz 35 kHz
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 5,7“ touchscreen PLC + 5.7“ touchscreen
Volume of the storage tanks 120 l 31,7 gal
TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
1220 mm
48 in
1740 mm
68.5 in
1210 mm
47.6 in
metric units imperial units
