MODEL TCM-X300 021 1-002 10 ࠲ࡦ࠹ࡉ࡞ㇱ TURNT ABLE SECTION Fig. B-1 ࠗࡦ࠺࠶࡙ࠢࠬ࠾࠶࠻ޔࠝࠗ࡞ࠢ Indexing Drive Unit, Oil Cooler 29 1-01 12 11 10 31 32 30 28 27 26 25 23 22 21 See Fig.L-1 Key No.12 See Fig.K-4 Key No.321 20 16 24 19 1…
MODEL TCM-X300
0211-002
9
ో࿑㧙㧞 UNIT LAYOUT -2
UNIT LAYOUT-2
-2
TCM-X300-002
Fig.RC 200V POWER SUPPLY SECTION
Fig.RL MISCELLANEOUS PARTS-1
Fig.RL MISCELLANEOUS PARTS-1
Fig.RL MISCELLANEOUS PARTS-1
Fig.RK
SERVICE PANEL SECTION
Fig.RM MISCELLANEOUS PARTS-2
Fig.RM MISCELLANEOUS PARTS-2
MISCELLANEOUS PARTS-1Fig.RL
Fig.RA MAIN POWER SUPPLY SECTION
Fig.RF 200V,100V POWER SUPPLY SECTION
Fig.RE 100V POWER SUPPLY SECTION
Fig.RG
RELAY SEQUENCE PANEL SECTION
Fig.RH
CONTROL BOX SECTION
MODEL TCM-X300
0211-002
10

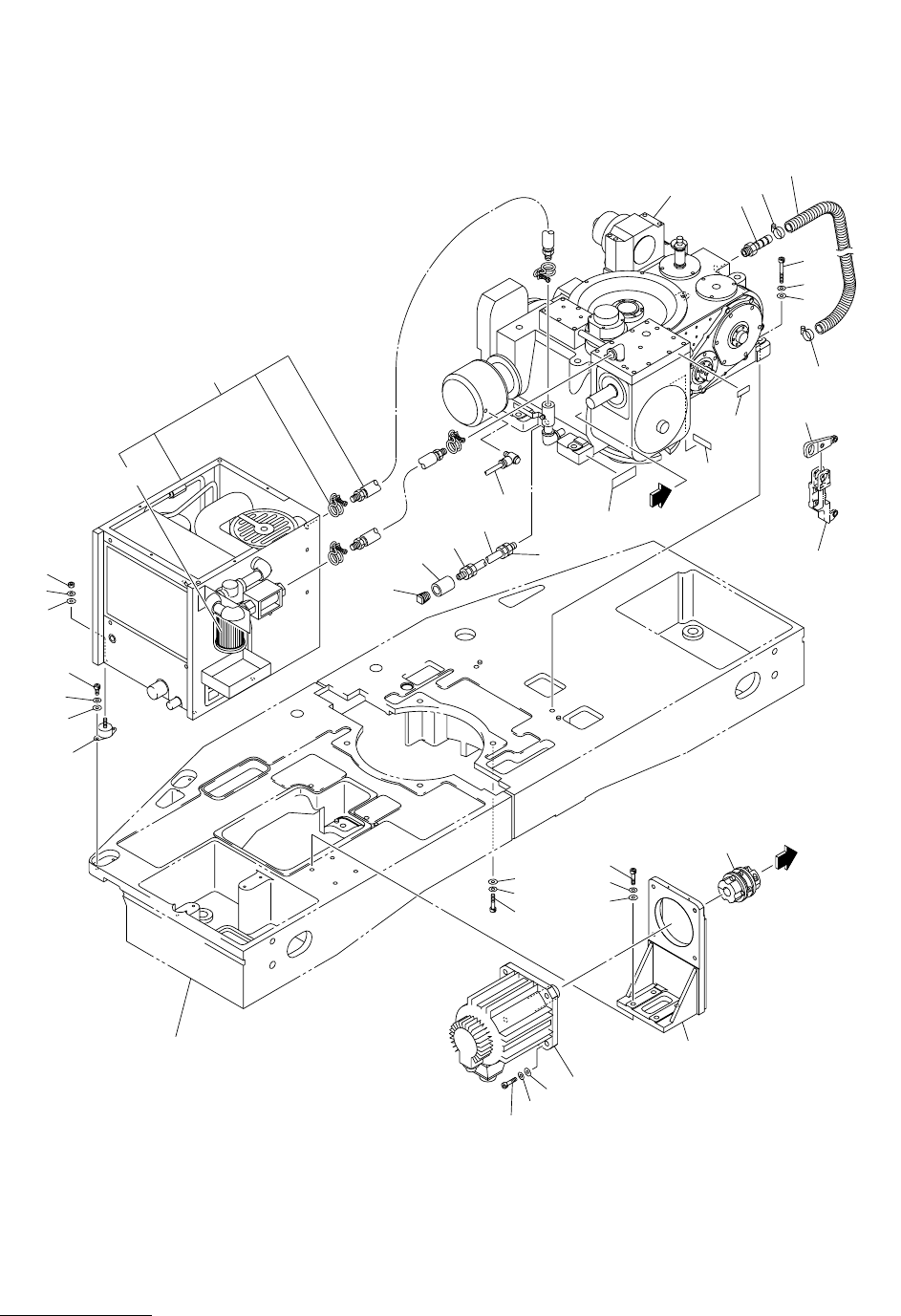

࠲ࡦ࠹ࡉ࡞ㇱ TURNTABLE SECTION
Fig. B-1
ࠗࡦ࠺࠶࡙ࠢࠬ࠾࠶࠻ޔࠝࠗ࡞ࠢ
Indexing Drive Unit, Oil Cooler
29
1-01
12
11
10
31
32
30
28
27
26
25
23
22
21
See Fig.L-1
Key No.12
See Fig.K-4
Key No.321
20
16
24
19
18
17
7
6
5
A
9
8
13
42
41
2
3
4
43
45
45
44
46
1
A
Fig.B-1
TCM-X200-003
4797A-003
4797L-002
TCM-X300-002
TCM-X100J-002
4797S-002
TCM-X100-002
29-01
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11
B-1
1 630 118 3725 INDEXING DRIVE 1 #18CHS3W0300*030 784B--010-001
1 -01 630 111 3135 CAM 1
2 411 141 4800 WASHER V 12X24X2.5 4 784B--010-002
3 411 141 3308 WASHER SPR 12 4 784B--010-003
4 630 000 8265 BOLT,HEX-SCT 4 784B--010-004
5 411 141 4800 WASHER V 12X24X2.5 4 784B--010-005
6 411 141 3308 WASHER SPR 12 4 784B--010-006
7 630 000 8241 BOLT,HEX-SCT 4 784B--010-007
8 630 004 0845 PIPE FITTINGS 1 784B--010-008
9 630 004 1279 TUBE 1 784B--010-009
10 630 003 7159 PIPE FITTINGS 1 784B--010-010
11 630 003 7937 PIPE FITTINGS 1 784B--010-011
12 630 003 8125 PIPE FITTINGS 1 784B--010-012
13 630 052 1993 PIPE FITTINGS 1 784B--010-013
16 630 099 6173 BRACKET 1 784B--010-016
17 411 141 4701 WASHER V 10X21X2 4 784B--010-017
18 411 141 3209 WASHER SPR 10 4 784B--010-018
19 630 000 8142 BOLT,HEX-SCT 4 784B--010-019
20 630 085 8143 MOTOR,AC-SERVO 1 MSVM1(H),SGMGH-44ACA21
784B--010-020
21 411 141 4701 WASHER V 10X21X2 4 784B--010-021
22 411 141 3209 WASHER SPR 10 4 784B--010-022
23 630 000 8142 BOLT,HEX-SCT 4 784B--010-023
24 630 049 2446 COUPLING 1 784B--010-024
25 630 003 6787 MECH PARTS(RUBBER DAMPER) 4 784B--010-025
26 411 141 4305 WASHER V 6X12.5X1.6 4 784B--010-026
27 411 141 3001 WASHER SPR 6 4 784B--010-027
28 630 000 7879 BOLT,HEX-SCT 4 784B--010-028
29 630 086 9958 UNIT(OIL COOLER) 1 784B--010-029
29 -01 630 098 5573 OIL PARTS 1
30 411 141 4503 WASHER V 8X17X1.6 4 784B--010-030
31 411 141 3100 WASHER SPR 8 4 784B--010-031
32 411 141 0901 NUT HEX 8 4 784B--010-032
41 630 008 2722 NAME PLATE,INDEX 1 784B--010-041
42 630 096 8644 NAME PLATE,PARTS 1 784B--010-042
43 630 004 1026 PIPE FITTINGS 1 784B--010-043
44 630 105 5619 TUBE 1 784B--010-044
45 630 008 0940 TUBE(BAND) 2 784B--010-045
46 630 052 2013 NAME PLATE,PARTS 1 784B--010-046
