P-208-001.pdf - 第61页
MODEL TCM-X300 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 59 EB-8 75 1 630 100 9230 LIG HTI NG UN IT 3 E L1,EL2,EL3,#MHF-P100LRD-SO-2 784EB-010-751 75 1 -10 630 036 8642 L A M P 1 LM -1 00 75 2 630 100 92…
MODEL TCM-X300
0203-001
58
⼂࡙࠾࠶࠻ㇱ RECOGNITION UNIT SECTION

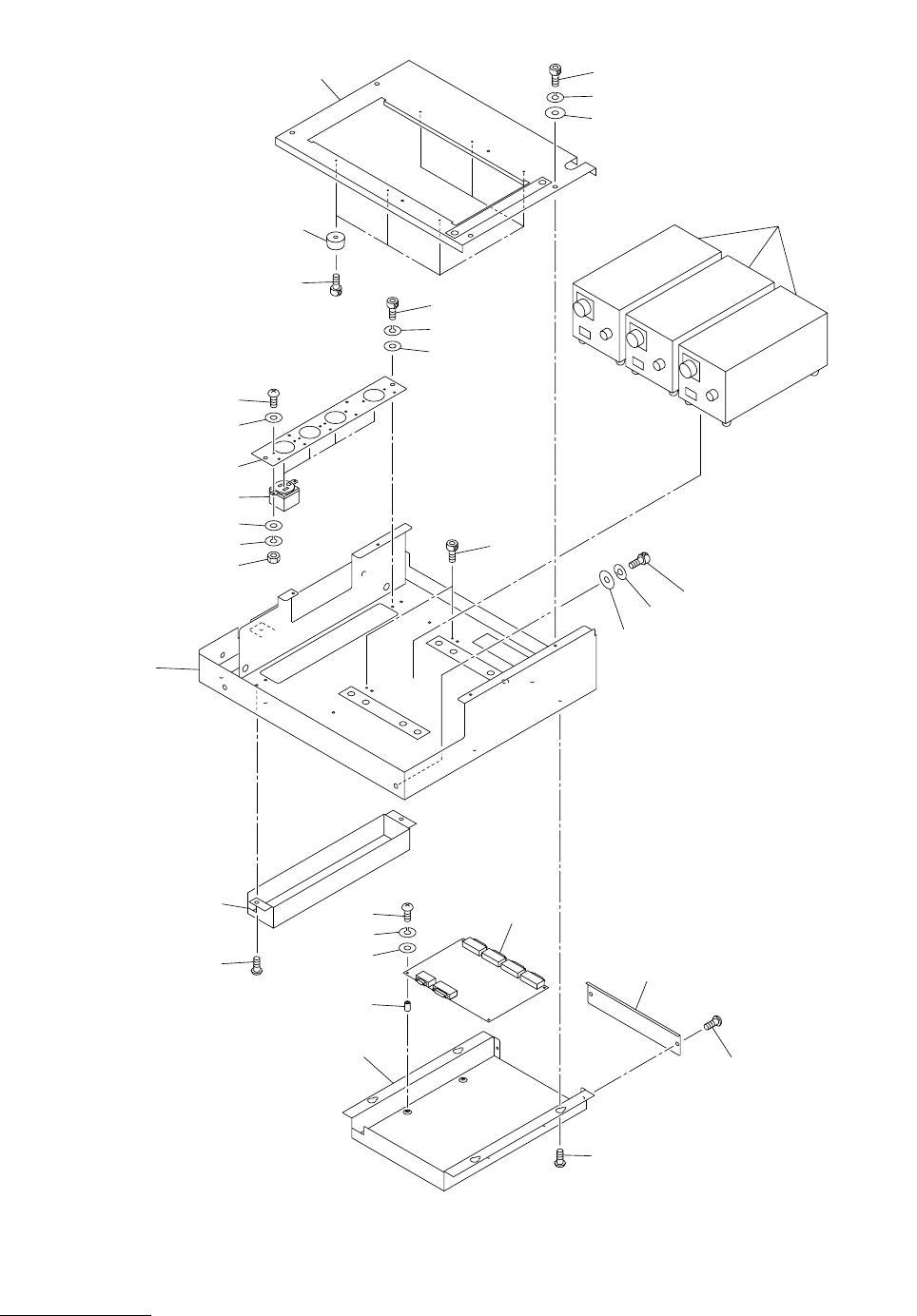

Fig. EB-8 ㇱຠ⼂ᾖ࡙࠾࠶࠻ Recognition Lighting Unit
763
762
761
766
762
763
772
771
770
772
773
772
771
774
766
762
767
753
778
769
752
764
765
768
751-10
751
768
755
768
760
758
759
776
754
Fig.EB-8
4797L
TCM-X300
TCM-X200-002
4797A-002
.
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
59
EB-8
751 630 100 9230 LIGHTING UNIT 3 EL1,EL2,EL3,#MHF-P100LRD-SO-2
784EB-010-751
751 -10 630 036 8642 LAMP 1 LM-100
752 630 100 9247 ACCESSORY,I/O 1 #MCR-A4-467-2 784EB-010-752
753 630 000 4243 SOCKET 4 784EB-010-753
754 630 097 6113 BOX 1 784EB-010-754
755 630 091 4320 COVER 1 784EB-010-755
758 630 091 4306 PLATE 1 784EB-010-758
759 630 091 4313 COVER 1 784EB-010-759
760 630 091 4337 BOX 1 784EB-010-760
761 630 000 7763 BOLT,HEX-SCT 4 784EB-010-761
762 411 141 6705 WASHER SPR 5 10 784EB-010-762
763 630 001 0220 WASHER 8 784EB-010-763
764 630 000 7503 BOLT,HEX-SCT 6 784EB-010-764
765 630 011 5420 MECH PARTS(RUBBER LEGS) 6 784EB-010-765
766 630 000 7756 BOLT,HEX-SCT 6 784EB-010-766
767 411 141 4107 WASHER V 5X10X1 2 784EB-010-767
768 411 140 8007 SCR TRS 5X6 8 784EB-010-768
769 630 006 0225 ACCESSORY,P.C.B 4 784EB-010-769
770 411 113 0700 SCR PAN 3X16 4 784EB-010-770
771 411 086 4408 WASHER SPR 3 12 784EB-010-771
772 411 119 1909 WASHER V 3X7X0.5 20 784EB-010-772
773 411 040 6202 SCR PAN 3X10 8 784EB-010-773
774 411 054 6809 NUT HEX 3 8 784EB-010-774
776 630 097 6120 PLATE 1 784EB-010-776
778 630 000 7633 BOLT,HEX-SCT 2 784EB-010-778
MODEL TCM-X300
0211-002
60
ࠞ࠶࠲ㇱ CUTTER SECTION
Fig. EC-1 ࠞ࠶࠲ࡌࠬ Cutter Base
See Fig.E-1
Key No.23
See Fig.E-1
Key No.5
9
3
2
3
37
36
35
40
41
38
29
7
26
28
33
25
24
20
21
27
22
23
19
17
16
15
18
39
14
13
12
2
3
4
8
7
6
1
30
5
Fig.EC-1
4797L-002
TCM-X200-003
TCM-X300-002
4797A-003
30
30
