45 Technical Data: Dimensions and Set-Up Conditions Values Length 1587 mm Width excluding Wa ffle Pack Changer 2425 mm Width includ ing Waffle P ack Changer 2700 mm Height includ ing warning l amp 1836 m m Weight of b as…
44
Technical Data:
Connections
Pressure Supply
Power Supply:
3 m Cable with
CEKON-Connector 3 x 16A
PCB Transport
Signal Interface
LAN Supply
230 Inner Edge if
Fixed Side of Transport
Connections and Energy Required
Mains voltage requirement
230/400 V∼ / 119/208 V∼
± 5%, 50/60 Hz
Total connected load 5 kVA
Gross output 5 kW
Fuses 3 x 16 A
Power outage max. 20 ms
Compressed air requirements min. 5.5 bar, 250 Nl/min
Compressed Air Specification
Particles: max. particle size by density,
based on ISO/DIS 8573-1 Class
Particle size
Particle density
0.1 µm
0.1 mg/m³
Dew:
Pressure dewpoint
Dewpoint
Class 4
+ 3° C
Oil:
max. oil content
Particle density
Class 1
0.01 mg/m³
45
Technical Data:

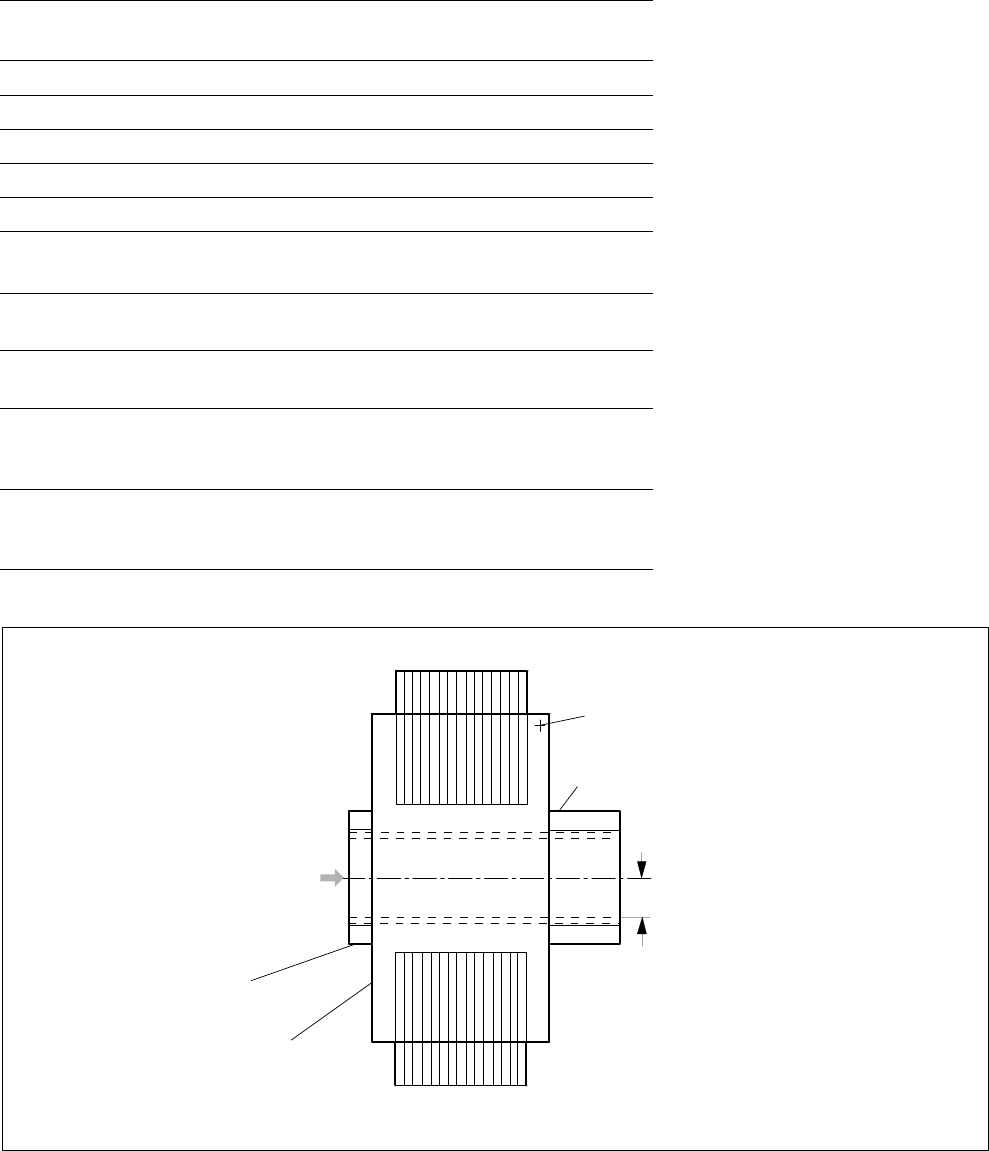

Dimensions and Set-Up Conditions
Values
Length 1587 mm
Width excluding Waffle Pack Changer 2425 mm
Width including Waffle Pack Changer 2700 mm
Height including warning lamp 1836 mm
Weight of basic module 1500 kg
Weight fully equipped excluding
Waffle Pack Changer 2000 kg
Weight fully equipped including
Waffle Pack Changer 2320 kg
Permissible surface load sub-floor
> 1 metric ton/m²
(weight when fully equipped /
erection area x safety margin)
Permissible environmental influences:
Room temperature
Humidity
Between 15° and 35°C
30-75%, on average not higher
than 45%, so that no condensation
can ever form on the machine
Maximum noise development
74 dB
A
SIPLACE F
5
1836
1836
252
252
300
740
300
740
1921
1921
2425
2700
1036
1036
1587
1587
375
350
1355
Height of PCB transport
830 ± 15 mm (standard)
900 ± 15 mm (option)
930 ± 15 mm (option)
950 ± 15 mm (option) SMEMA
Foot height 120 mm
All units in mm
46
Dimensions in µ
µµ
µm
Nozzle Type on Placem. Head
Component
GF-
No
Designation
Length Width Height Pick&Place 6-Nozzle Revolver
100 0402 1000 500 350 701 / 711
101 0402 1000 500 500 701 / 711
1010 0402 / Bulk Case Feeder 1000 500 500 701 / 711
102 0603 1600 800 1000 701 / 704 / 711 / 714
Rectangular chip
capacitors and
resistors,
PTC and NTC
thermistors,
metal oxide,
varistors
1020 0603 / Bulk Case Feeder 1600 800 1000 701 / 704 / 711 / 714
103 0805 2000 1250 1300 704 / 714
1030 0805 / Bulk Case Feeder 2000 1250 1300 704 / 714
105 1206 3200 1600 800 701 / 711 / 713
1050 1206 / Bulk Case Feeder 3200 1600 1800 701 / 711 / 713
106 1210 3200 2500 1700 701 / 711 / 713
110 1812 4500 3200 1600 715
1100 BGA255_1.50 27000 27000 2200 417 / 418 820
111 2010 5000 2500 1600 715
112 2220 5700 5000 1700 715
1200 Ceramic Resonator 7000 2800 2800 724
1201 TOPLED 3200 2800 1900 715
1202 Poti BOURNS 3314J hell 5000 5200 2700 718
1203 Bridge Rectifier 4800 6800 2600 715
Melf Resistors 200 MIKROMELF 2000 1200 1200 723
201 MINIMELF 3500 1400 1400 723
202 MAXIMELF 5900 2200 2200 724
Diodes 203 MINIMELF DIODE SOD80 3500 1600 1600 723
204
Melf Diode small fat SOD87
3600 2000 2000 723
205 MAXIMELF_DIODE/LL-41 5000 2800 2700 724
300 TANTAL_3.2x1.6_A 3200 1600 1800 704 / 713 / 714
Tantalum Chip-
Capacitors
301 TANTAL_3.4x2.8_B 3500 2800 2100 715
302 TANTAL_5.8x3.2_C 6000 3200 2800 715
303 TANTAL_7.3x4.3_D 7300 4300 3000 416 717
310 TANTAL_8x6.4 8000 6400 3500 416 717
311 TANTAL_10.5x8 10500 8000 3500 416 720
320 TANTAL_3.2x1.6_A 3200 1600 1800 704 / 713 / 714
321 TANTAL_3.4x2.8_B 3500 2800 2100 715
322 TANTAL_5.8x3.2_C 6000 3200 2800 715
323 TANTAL_7.3x4.3_D 7300 4300 3000 416 717
340 ECV_A_d3_h5.7 3600 3300 5700 718
Al-Cup
Capacitors
341 ECV_B_d4_h5.7 4600 4300 5700 718
342 ECV_C_d5_h5.7 5900 5300 5700 719
343 ECV_D_d6.3_h5.7 7000 6600 5700 719
Component Forms
