Technical Data:
Dimensions and Set-Up Conditions
Values
Length 1587 mm
Width excluding Waffle Pack Changer 2425 mm
Width including Waffle Pack Changer 2700 mm
Height including warning lamp 1836 mm
Weight of basic module 1500 kg
Weight fully equipped excluding
Waffle Pack Changer 2000 kg
Weight fully equipped including
Waffle Pack Changer 2320 kg
Permissible surface load sub-floor
> 1 metric ton/m²
(weight when fully equipped /
erection area x safety margin)
Permissible environmental influences:
Room temperature
Humidity
Between 15° and 35°C
30-75%, on average not higher
than 45%, so that no condensation
can ever form on the machine
Maximum noise development
74 dB
A
SIPLACE F
5

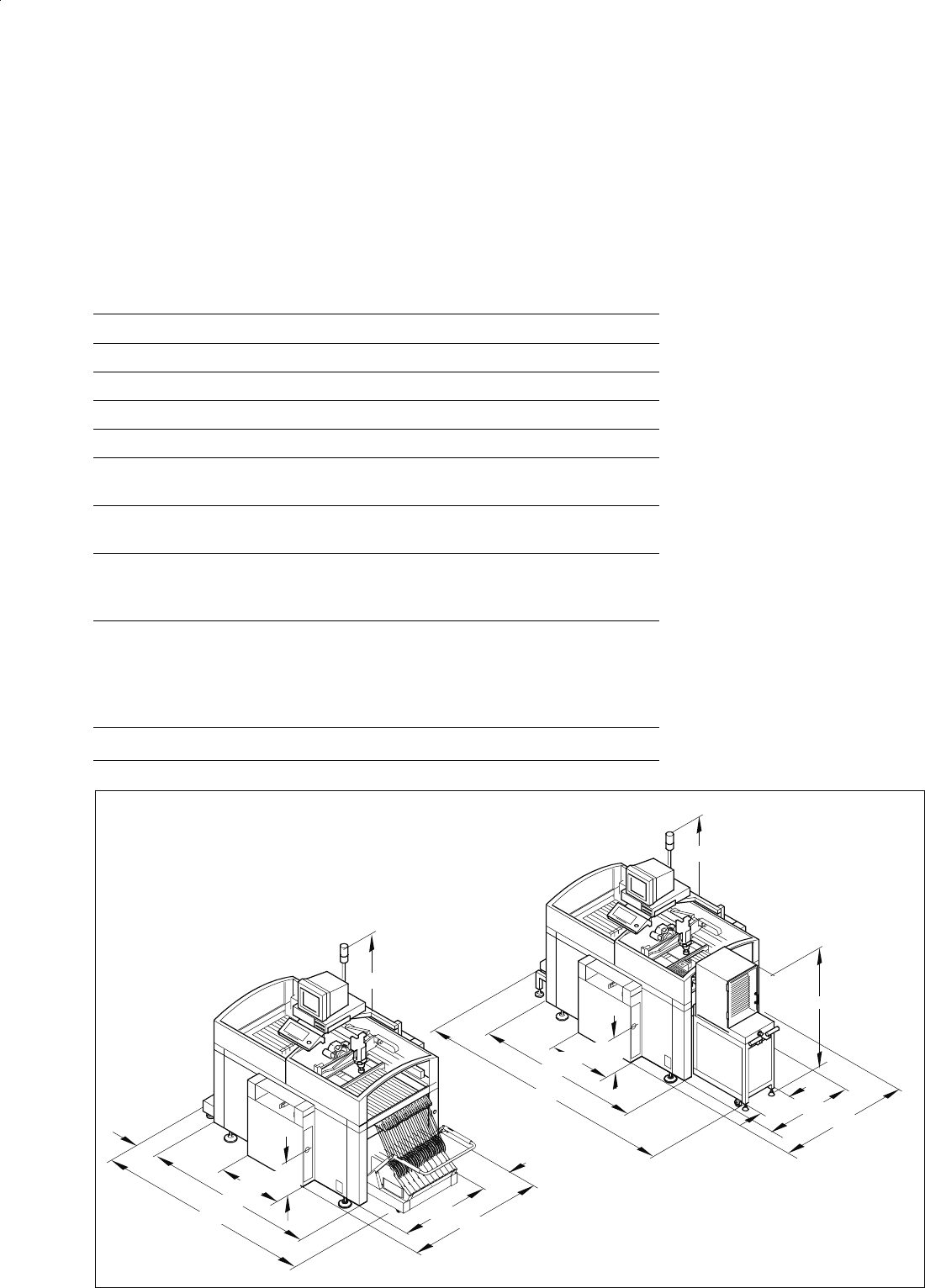

1836
1836
252
252
300
740
300
740
1921
1921
2425
2700
1036
1036
1587
1587
375
350
1355
Height of PCB transport
830 ± 15 mm (standard)
900 ± 15 mm (option)
930 ± 15 mm (option)
950 ± 15 mm (option) SMEMA
Foot height 120 mm
All units in mm
46
Dimensions in µ
µµ
µm
Nozzle Type on Placem. Head
Component
GF-
No
Designation
Length Width Height Pick&Place 6-Nozzle Revolver
100 0402 1000 500 350 701 / 711
101 0402 1000 500 500 701 / 711
1010 0402 / Bulk Case Feeder 1000 500 500 701 / 711
102 0603 1600 800 1000 701 / 704 / 711 / 714
Rectangular chip
capacitors and
resistors,
PTC and NTC
thermistors,
metal oxide,
varistors
1020 0603 / Bulk Case Feeder 1600 800 1000 701 / 704 / 711 / 714
103 0805 2000 1250 1300 704 / 714
1030 0805 / Bulk Case Feeder 2000 1250 1300 704 / 714
105 1206 3200 1600 800 701 / 711 / 713
1050 1206 / Bulk Case Feeder 3200 1600 1800 701 / 711 / 713
106 1210 3200 2500 1700 701 / 711 / 713
110 1812 4500 3200 1600 715
1100 BGA255_1.50 27000 27000 2200 417 / 418 820
111 2010 5000 2500 1600 715
112 2220 5700 5000 1700 715
1200 Ceramic Resonator 7000 2800 2800 724
1201 TOPLED 3200 2800 1900 715
1202 Poti BOURNS 3314J hell 5000 5200 2700 718
1203 Bridge Rectifier 4800 6800 2600 715
Melf Resistors 200 MIKROMELF 2000 1200 1200 723
201 MINIMELF 3500 1400 1400 723
202 MAXIMELF 5900 2200 2200 724
Diodes 203 MINIMELF DIODE SOD80 3500 1600 1600 723
204
Melf Diode small fat SOD87
3600 2000 2000 723
205 MAXIMELF_DIODE/LL-41 5000 2800 2700 724
300 TANTAL_3.2x1.6_A 3200 1600 1800 704 / 713 / 714
Tantalum Chip-
Capacitors
301 TANTAL_3.4x2.8_B 3500 2800 2100 715
302 TANTAL_5.8x3.2_C 6000 3200 2800 715
303 TANTAL_7.3x4.3_D 7300 4300 3000 416 717
310 TANTAL_8x6.4 8000 6400 3500 416 717
311 TANTAL_10.5x8 10500 8000 3500 416 720
320 TANTAL_3.2x1.6_A 3200 1600 1800 704 / 713 / 714
321 TANTAL_3.4x2.8_B 3500 2800 2100 715
322 TANTAL_5.8x3.2_C 6000 3200 2800 715
323 TANTAL_7.3x4.3_D 7300 4300 3000 416 717
340 ECV_A_d3_h5.7 3600 3300 5700 718
Al-Cup
Capacitors
341 ECV_B_d4_h5.7 4600 4300 5700 718
342 ECV_C_d5_h5.7 5900 5300 5700 719
343 ECV_D_d6.3_h5.7 7000 6600 5700 719
Component Forms
47
Dimensions in µ
µµ
µm
Nozzle Type on Placem. Head
Component
GF-
No
Designation
Length Width Height Pick&Place 6-Nozzle Revolver
350 ECV_x_d8_h10.6 9000 8400 10600 416
351 EVC_x_d8_h6.5 9000 8300 6500 416
352 ECV_x_d10.2_h10.5 11000 10300 10500 417
360 ECS_l14xb6.25 14000 6250 7000 416
381 Crystal_SX5020 13000 4900 4900 416 717
Transistors 400 SOT23 2900 2300 1100 704 / 714
401 SOT_89 4500 4100 1500 715
402 SOT_143 3000 2500 1100 704 / 714
403 SOT_223 6500 7000 1800 715
404 DPACK_TO252 6500 10000 2700 416 717
405 TO120 similar 5100 5100 1600 704 / 714
406 D2PACK_TO263_AB 10000 15200 4400 416 717
407 D2PACK_TO263_AA 10000 14200 4400 417 720
408 D3PACK_TO-268 15950 18900 5000 417
Power Transistors 410 SOD123 3700 1550 1400 704 / 713 / 714
411 SOD323 2500 1250 1200 704 / 714
412 SC90 Ultra-Mini 1600 1600 700 701 / 711
413 SOT323 2000 2100 1100 704 / 714
414 SOT343 Mini 2000 2100 1100 704 / 714
416 SOT363 2000 2100 1100 704 / 714
417 SOT25 2900 2800 1200 713 / 715
418 SOT26 2900 2800 1200 713 / 715
420 DIODE_DO214_AC 5080 2600 2290 715
421 DIODE_DO214_AA 5400 3600 2160 715
422 Diode DO214_AB 8000 5900 2160 416 717
Semiconductors 501 SO6 3800 6000 1450 713 / 715
502 SO8 4900 6000 1550 715
504 SO14 8650 6000 1550 416 715 / 717
505 SO16 10000 6000 1600 416 715 / 717
506 SO8L 8000 10300 2500 416 717 / 720
508 SO14L 9100 10320 2500 416 717 / 720
509 SO16L 10280 10300 2500 416 717 / 720
510 SO18L 11550 10300 2500 416 717 / 720
511 SO20L 12800 10325 2500 416 717 / 720
512 SO24L 15400 10325 2500 416 720
513 SO28L 18000 10300 2450 416 720
514 SO32Y 20500 14100 3500 417 720
515 SOW24 15650 12100 2300 417 717 / 720
Component Forms
