1. Scope
This specially specified function shortens the component placement
time by increasing the operating speed of the H-axis, which en-
hances productivity.

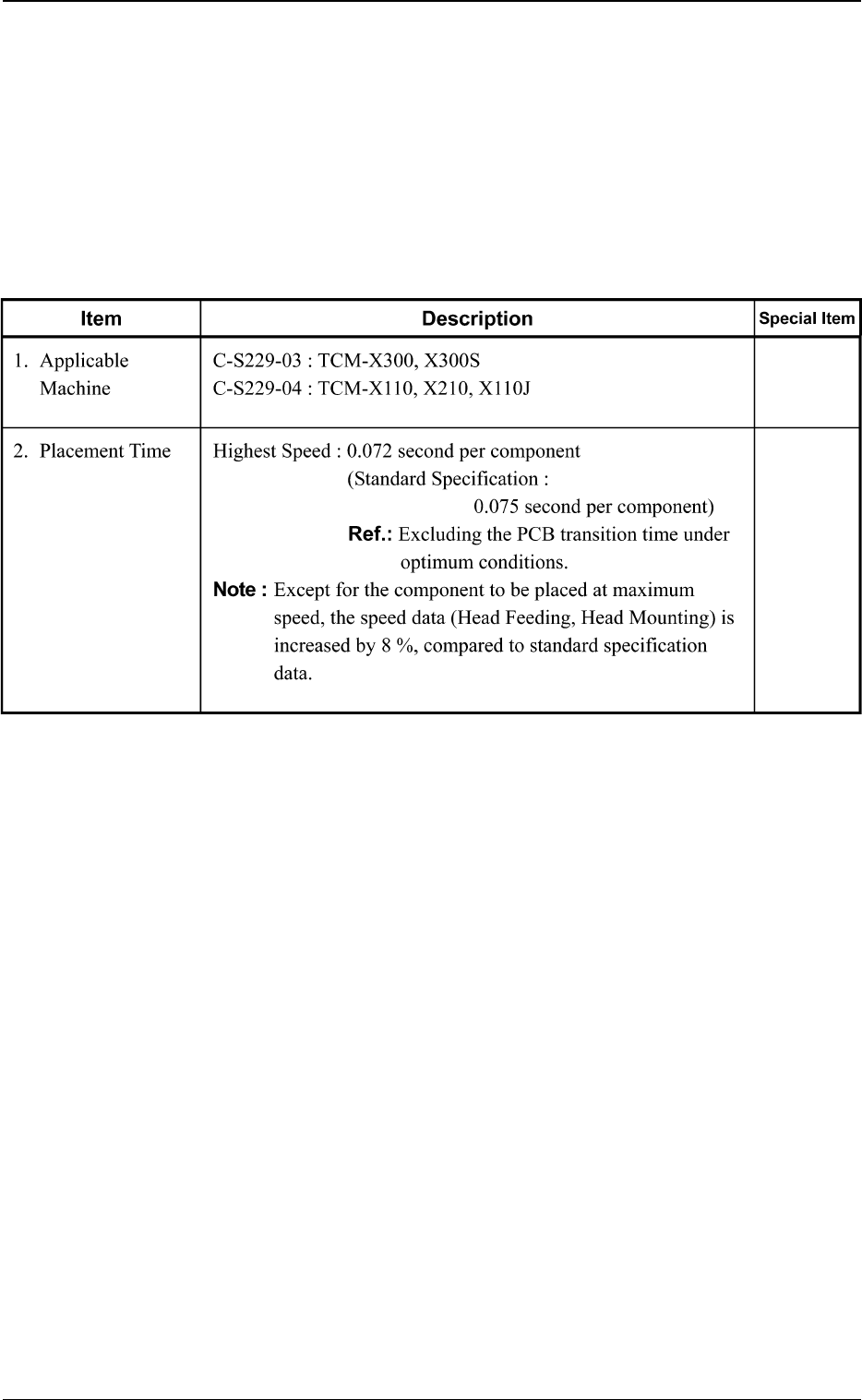

2. Specifications
0312-001 3
1. Scope
Tg0989-PM-SO
0312-001 4

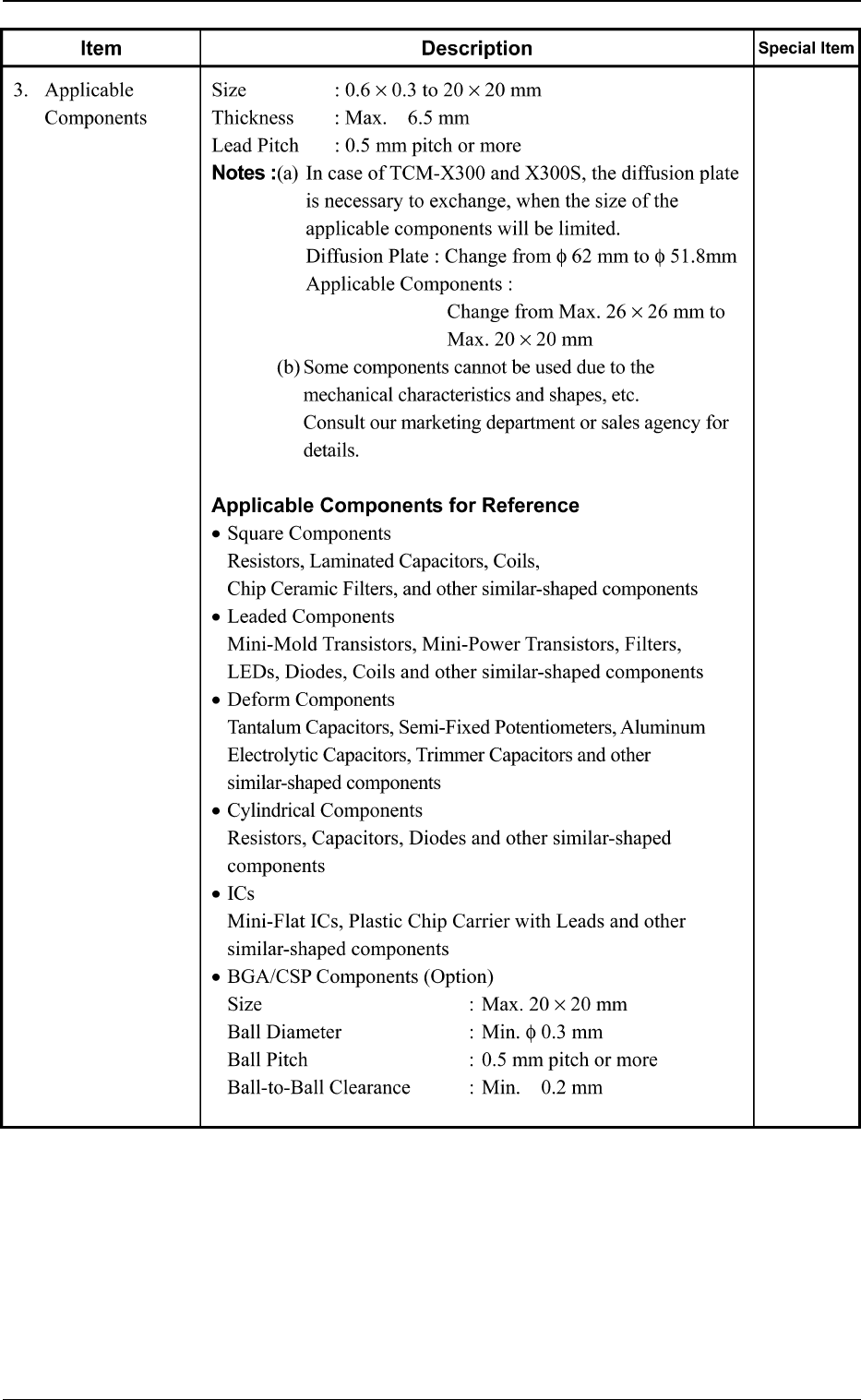

2. Specifications
Tg0989-PM-SO
3. Component ID Table
Refer to Instruction Manual for NT05001 Component Library
Data for Drawing Nos.
3.1 Resistor (R)
0312-001 5
3. Component ID Table
Note
Model No.
TIM-Xseries
Component Name
Maker or Package Component ID
Nozzle Speed Nozzle
Width Pitch Type Remarks
Cylindrical Resistor
KOA CC-10 R2012M--B0--- --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA MCR2A R2012M--B0--- --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA RD41B2A R2012M--B0--- --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA RN41K2A R2012M--B0--- --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA CC-20 R3216M--B0KOA --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA RM41B2D R3216M--B0KOA --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA RN41C2D R3216M--B0KOA --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA CC-12 R3515M--B0KOA --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA MLT
2B R3515M--B0KOA --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA RD41B2B R3515M--B0KOA --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
KOA CC-25 R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
KOA MLT
2E R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
KOA RD41B2E R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
KOA RM41B2H R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
KOA RN41
2E R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERD03LL R1610M--B0MAT --- 050 0.072 EB02 8mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERD21LL R2012M--B0--- --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERO-21L R2012M--B0--- --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERD10TL R3514M--B0MAT --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERO-10L R3514M--B0MAT --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERS-L R3514M--B0MAT --- 050 0.072 EB03 8mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERD25TL R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERO-25L R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
MATSUSHITA ERS-M R5922M--B0--- --- 060 0.120 EB04 12mm 4mm
Emboss
Cylindrical Resistor
TAIYO YUDEN RN4B2A R1610M--B0YUD --- 050 0.072 EB02 8mm 4mm
Emboss
Fig. No.
Feeder SpecificationsTCM-Xseries
