E-by SIPLACE Base Machine Undock COT from Ma chine Operation 1/2 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: Wear Part: Consum ables: 1. Cl…

E-by SIPLACE Base Machine Stop production and move gantries to setup position

Operation

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

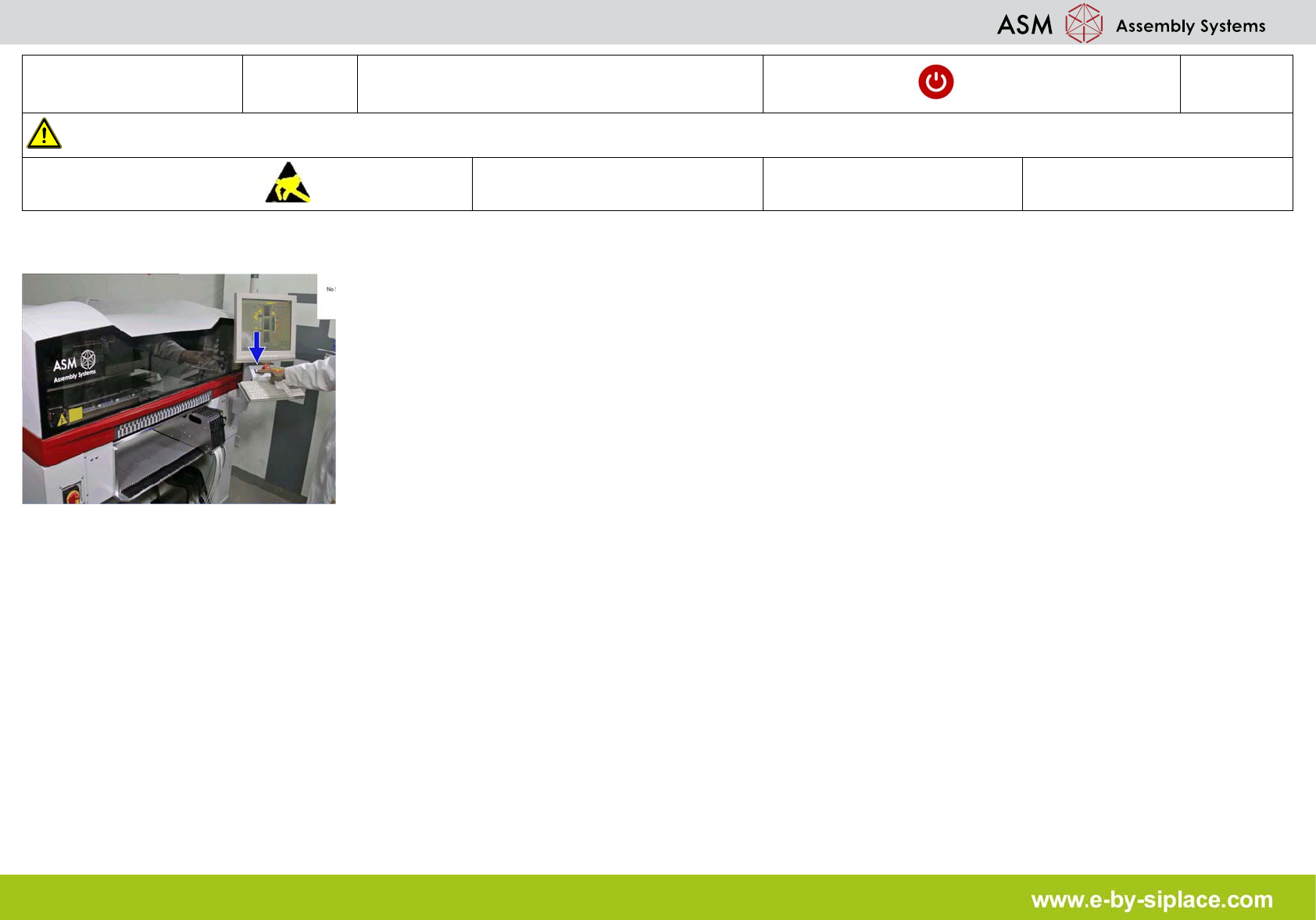

7. Press start button.

E-by SIPLACE Base Machine Undock COT from Machine

Operation

1/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

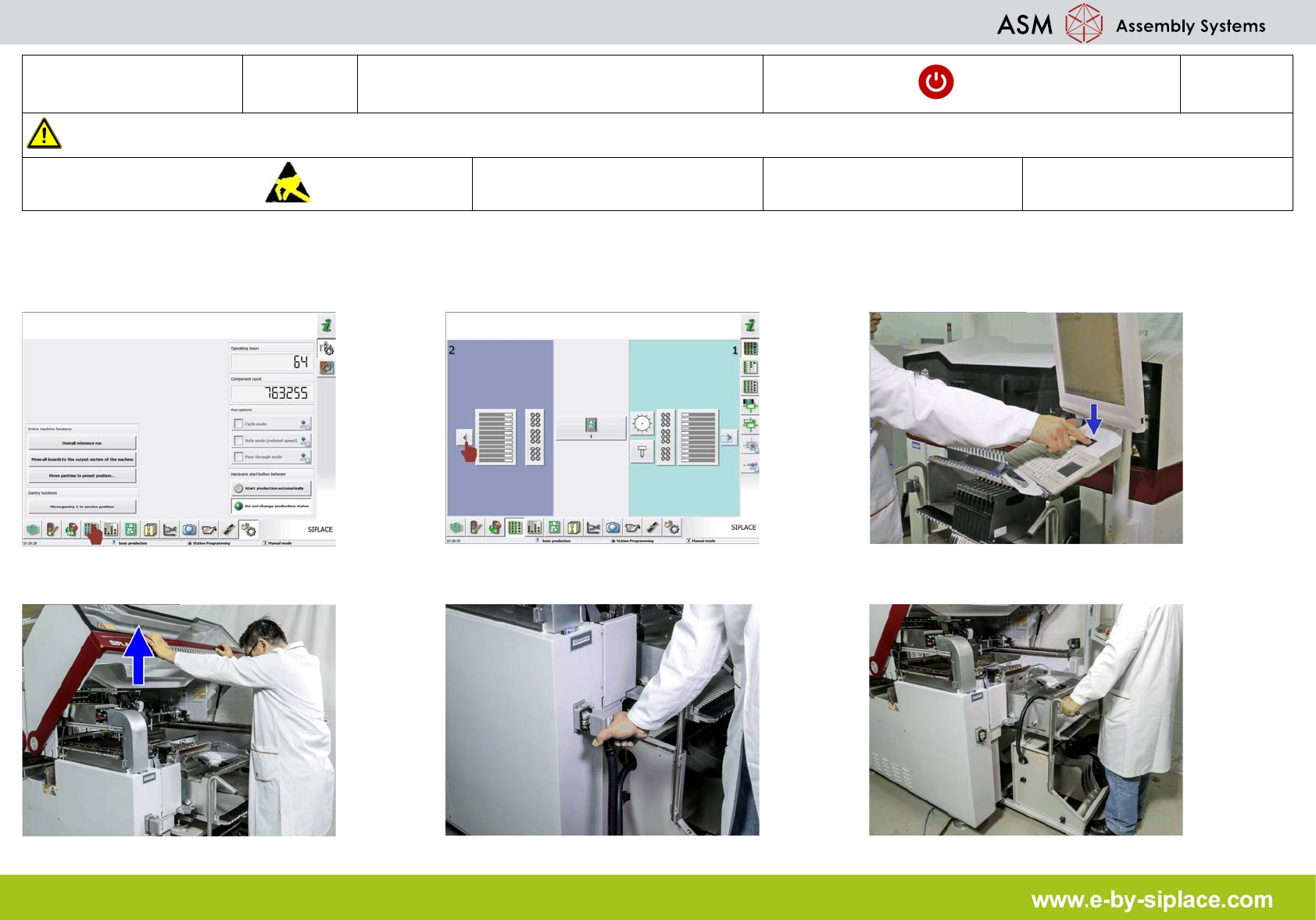

1. Click on "display feeders, components and

nozzles" icon.

2. Click on "location 2 arrow" icon to undock

the COT, the table will now undock automati-

cally.

3. Press stop button.

4. Open the safety cover. 5. Unplug the cable connections. 6. Carefully pull out the feeder tables.

E-by SIPLACE Base Machine Undock COT from Machine

Operation

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

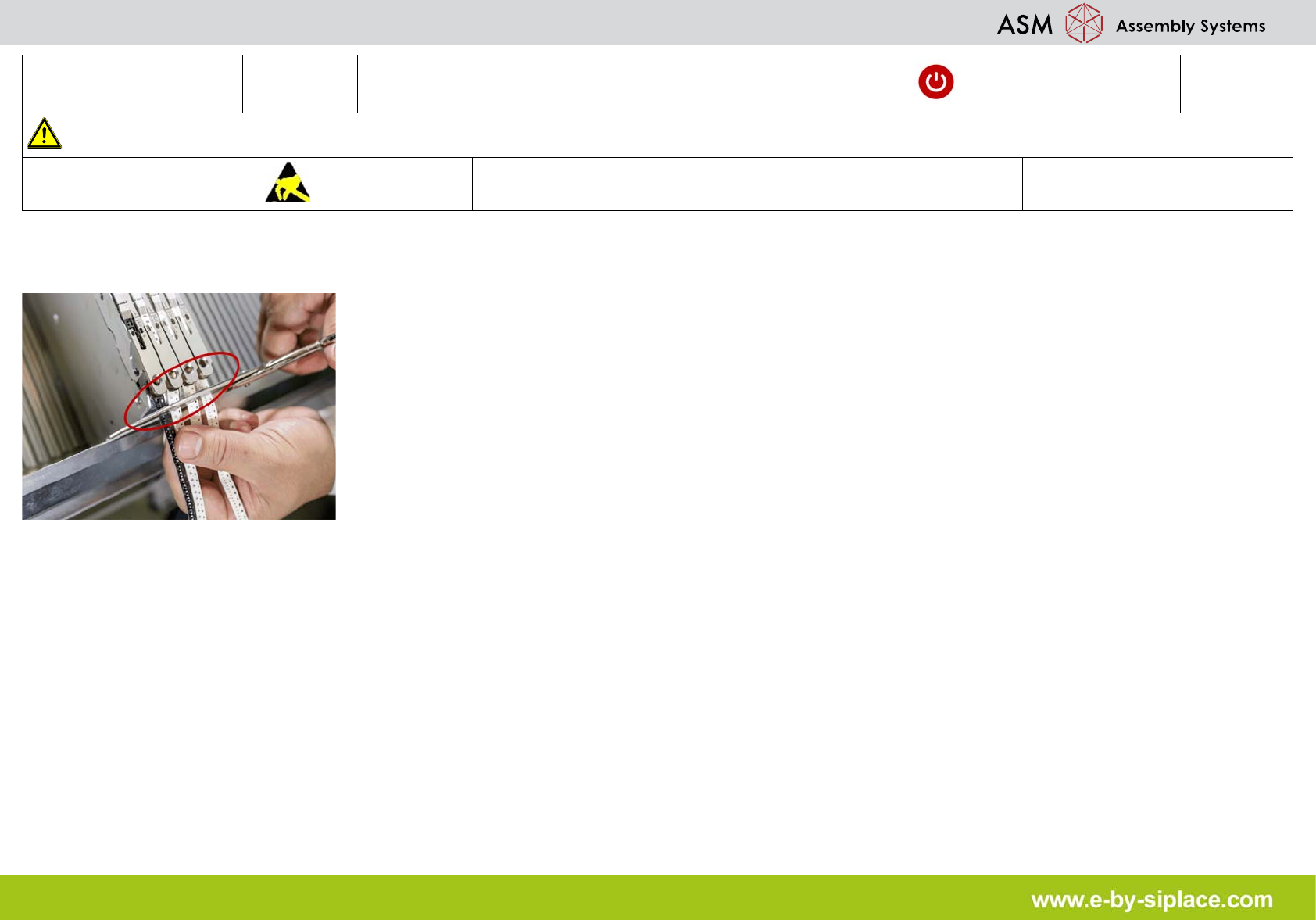

7. Cut all the waste component tapes back to

the feeders.
