G -S022-05 1012-003 19 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 401 6301333106 V AL VE 1 -Y0842 829N-A010080-A001 225C0125 402 6301 106083 PIPE FITTINGS 1 829N-A010080-A002 225F0467 403 6300036534 AIR LI…
G -S022-05
0909-002
18
405
401
403
402
404
423
420
419
453
463
.
468
.
457
461
.
466
.
454
463
.
468
.
455
463
.
468
.
421
456
427
432
444
426
433
471
428
430
431
429
472
442
475
477
473
435
434
472
476
438
437
436
474

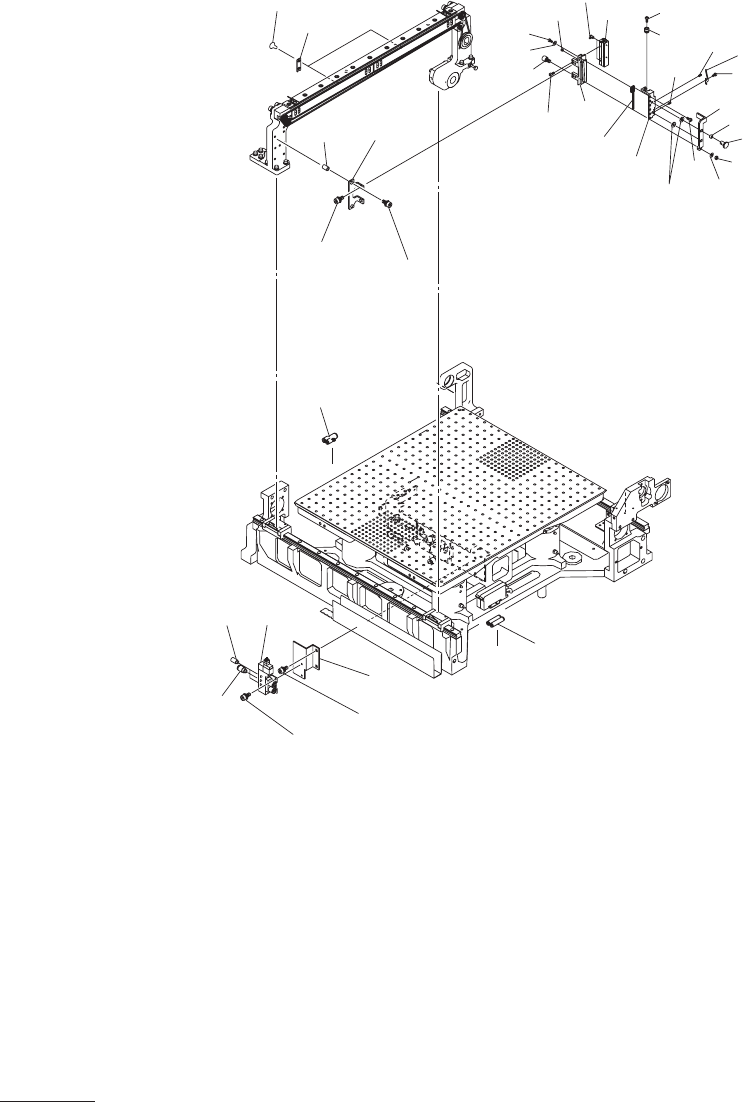

コンベア部
CONVEYOR SECTION
Fig. N-5
基板ストッパ
P.C.B. Stopper
G -S022-05
1012-003
19
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
401 6301333106 VALVE 1 -Y0842
829N-A010080-A001
225C0125
402 6301106083 PIPE FITTINGS 1
829N-A010080-A002
225F0467
403 6300036534 AIR LINE EQPT 2
829N-A010080-A003
225B0059
404 6300482935 AIR LINE EQPT 2
829N-A010080-A004
225B0251
405 6301328188 BRACKET 1
829N-A010080-A005
211F9195
419 6301383712 BRACKET 1
829N-A010080-A019
211F9865
420 6301383729 SPACER 2
829N-A010080-A020
211E0929
421 6301242101 BRACKET 2
829N-A010080-A021
211F8057
423 6301164915 PIPE FITTINGS 1
829N-A010080-A023
225F0504
424 6300037166 PIPE FITTINGS 2
829N-A010080-A024
225F0018
425 6300037777 PIPE FITTINGS 1
829N-A010080-A025
225F0063
426 6301350226 LEVER 1
829N-A010080-A006
216S2771
427 6301335162 PIN,LOCATE 2
829N-A010080-A007
216E1533
428 6301448992 BRACKET 1
829N-A010080-A008
211F9301
429 6301335681 SPRING,FLAT 1
829N-A010080-A009
222Q0130
430 6301337203 BRACKET 1
829N-A010080-A010
211F9347
431 6301319148 GUIDE,LINEAR 1
829N-A010080-A011
222L0728
432 6301256474 BUSH,BEARING 1
829N-A010080-A012
222A0151
433 6300305678 BUSH,BEARING 2
829N-A010080-A013
222A0072
434 6301333113 MACHINE SCREW 1
829N-A010080-A014
221D0177
435 6301333120 CAM FOLLOWER 1
829N-A010080-A015
222H0137
436 6301319131 ROD END 1
829N-A010080-A016
222B0102
437 6301319155 CYLINDER 1
829N-A010080-A017
224C0559
438 6300465556 PIPE FITTINGS 2
829N-A010080-A018
225F0253
442 6300009101 SET SCREW 1
829N-A010080-A022
221C0100
444 6300009118 SET SCREW 1
803N-A210080-A024
221C0024
453 6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
454 6300007749 BOL
T,HEX-SCT 2 M5X10 221A0029
455 6300007787 BOL
T,HEX-SCT 2 M5X25 221A0033
456 4110505004
SCR TRS 3X6 2 M3X6 TRS 221E0529
457 41
10418908 SCR PAN 3X6 2 M3X6 PAN 221E0497
461 41
10864408 WASHER SPR 3 2 SW3 F 221H0280
463 411
1416705 WASHER SPR 5 6 SW5 221H0287
466 411
1191909 WASHER V 3X7X0.5 2 FW3 F 221H0311
468 41
11414107 WASHER V 5X10X1 6 FW5 221H0318
471 6301297057 BOL
T,HEX-SCT 6 M1.6X3 221AA330
472 6301354323 BOL
T,HEX-SCT 1 M2X3
473 6300007503 BOLT
,HEX-SCT 2 M3X6 221AA005
474 6300007527 BOL
T,HEX-SCT 1 M3X10 221AA007
475 411
1409905 NUT HEX 3 1 M3 221F0079
476 411
1412608 WASHER SPR 2 1 SW2 221H0277
477 411
1412806 WASHER SPR 3 1 SW3 221H0281
N-5
平成
17
年
9
月
初版発行
Published, Sep. 2005
平成
21
年
9
月
第２版発行
Published, Sep. 2009
平成
22
年
12
月
第３版発行
Published, Dec. 2010
CHIP MOUNTING SYSTEM
立体分解図
EXPLODED ILLUSTRATION
編集及び発行所
Editing & Publishing
Printed by T.H.I
不許複製
20
1012-003
