MODEL TCM-3500Z 9810-001 13- 2 Key No. PART No. PART NAME Q' ty REMARKS 51 630 059 7547 COVER 1 678RB-02B-028 52 630 059 7905 COVER 2 678RB-02B-029 53 630 060 0278 COVER 1 678RB-02B-031 54 630 060 0261 COVER 1 678RB…
MODEL TCM-3500Z
9810-001
後面カバー部 REAR COVER SECTION

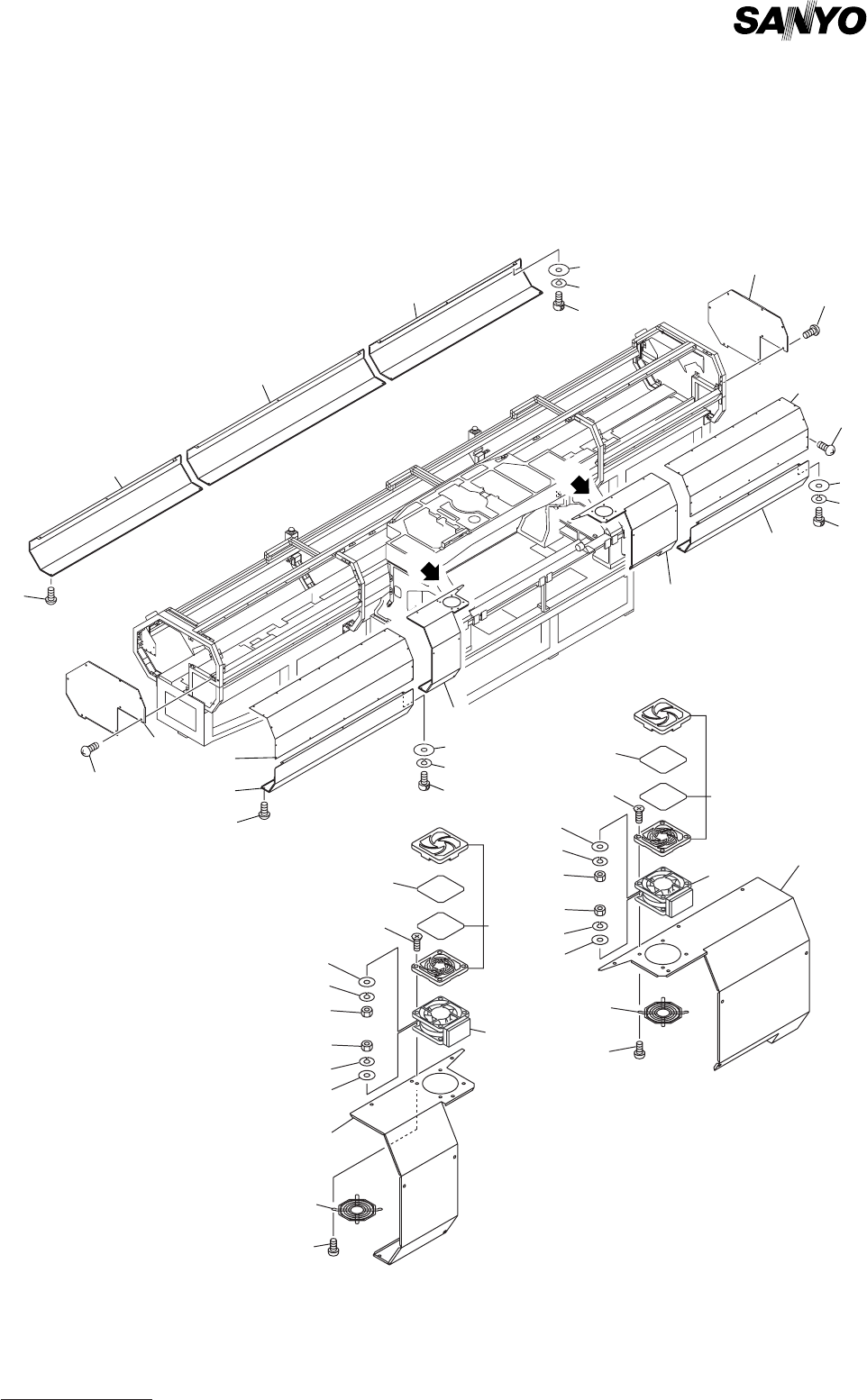

Fig.13-2 後面カバー Rear Cover
51
52
52
53
54
55
56
57
55
56
57
55
56
57
66
62
63
64
65
61
67
67
94
93
92
63
85
91
87
86
82
88
89
67
67
67
4796A'
DETAIL"A"
DETAIL"B"
A
B
82
94
93
92
64
85
91
87
86
84
83
88
89
84
83
MODEL TCM-3500Z
9810-001
13- 2
Key No. PART No. PART NAME Q'ty REMARKS
51 630 059 7547 COVER 1 678RB-02B-028
52 630 059 7905 COVER 2 678RB-02B-029
53 630 060 0278 COVER 1 678RB-02B-031
54 630 060 0261 COVER 1 678RB-02B-030
55 630 001 0220 WASHER 15 BW5
56 411 141 6705 WASHER SPR 5 15 SW5
57 630 000 7756 BOLT,HEX-SCT 15 M5X12
61 630 064 9512 COVER 1 678RB-02B-041
62 630 060 0490 COVER 1 678RB-02B-035
63 630 075 8375 COVER 1 678RB-02B-037
64 630 075 8368 COVER 1 678RB-02B-036
65 630 060 0483 COVER 1 678RB-02B-034
66 630 064 9505 COVER 1 678RB-02B-040
67 411 113 9109 SCR TRS 5X10 16 M5X10 TRS
82 630 070 3061 MOTOR,AC 2 678FB-02D-800
83 630 074 6853 ACCESSORY,MOT-M (FILTER) 2 678FB-02D-802
84 630 076 4932 ACCESSORY,MOT-M 2 678FB-02D-803
85 630 068 4292 ACCESSORY,MOT-M 2 679FB-02D-801
86 411 140 7406 SCR FLT 5X20 8 M5X20 FLT
87 411 088 1702 WASHER V 5X10X1 8 FW5 F
88 411 008 2109 WASHER SPR 5 8 SW5 F
89 411 118 8503 NUT HEX 5 8 M5 F
91 411 140 6508 SCR PAN 5X20 8 M5X20 PAN
92 411 088 1702 WASHER V 5X10X1 8 FW5 F
93 411 008 2109 WASHER SPR 5 8 SW5 F
94 411 118 8503 NUT HEX 5 8 M5 F
NOTE
MODEL TCM-3500Z
9810-001
後面カバー部 REAR COVER SECTION
Fig.13-3 安全カバー Guard Cover
122
126
120
123
124
125
111
112
113
114
115
126
121
120
123
124
125
102
102
103
103
See Fig.13-4
DETAIL"A"DETAIL"A"
AA
4796
-002
