3/4
機種( M/C TYPE) ユニット( UNI T) 発行日
I P・QP2 モータフィーダ( MOTOR FEEDER) 02. 11. 01
形式( TYPE) 図番( DWG No. ) S/N
W32 エンボス( EMBOSS) ( AKDFA64**) ( AKDFA74**) KDE‑ 32V0‑ 000246〜
番
号
品名 図番 個数
No. Dwg. No. QTY
備考
Remarks
Descri pt i on
37 ﾋﾟﾝ PI N KDFC0760 2
38 ﾋﾟﾝ PI N KDFD1321 2
39 BKT BKT KDCC1492 1
40 BKT BKT KDCC1501 1
41 BKT ﾓｰﾀ BKT, MOTOR KDDC0200 1
42 ﾌﾟﾚｰﾄｻｲﾄﾞ PLATE, SI DE KDFD1110 1
43 ﾛｰﾗ ROLLER KDFC0980 1
44 ﾊｰﾈｽ HARNESS KHEH1160 1
45 ﾌﾟﾚｰﾄ PLATE KHEM1130 1
46 ﾊｰﾈｽ HARNESS KHEH1251 1 Type6000専用
47 ｷﾊﾞﾝ ﾌﾟﾘﾝﾄ BOARD, PRI NTED CI RCUI T FH1091A 1
48 ｷﾊﾞﾝ ﾌﾟﾘﾝﾄ BOARD, PRI NTED CI RCUI T FH1108B 1
49 ｼｰﾙ SEAL KHER1120 1
50 ｷﾊﾞﾝ ﾌﾟﾘﾝﾄ BOARD, PRI NTED CI RCUI T FH1047E 1
51 ﾊｰﾈｽ HARNESS KHEH1260 1
52 ｽﾌﾟﾘﾝｸﾞ SPRI NG BFCF0060 1
53 ｶﾊﾞｰ COVER KDFC0991 1
54 ﾋﾟﾝ PI N BFCF0281 2
55 ﾋﾟﾝ PI N BFCF0370 1
56 ｸﾘｯﾊﾟ CLI PPER K30164 1 NK‑ 5N ( ｷﾀｶﾞﾜ)
57 ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ BELT, TI MI NG H4509R 1 344‑ 2GT‑ 12 ( ﾕﾆｯﾀ)
58 ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ BELT, TI MI NG H4509L 1 340‑ 2GT‑ 2 ( ﾕﾆｯﾀ)
59 ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ PI N, SPRI NG H2050T 1 3x16 AW
60 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1020H 2 2. 5M/M
61 ｺﾈｼﾞ +ｱﾅﾅﾍﾞ SCREW, C/R PAN K5175S 2 M2x5
62 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1020A 2 2M/ M
63 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5359E 26 M4x8
64 ﾎﾞﾙﾄ 6ｶｸｱﾅ BOLT, HEX SOCKET H5288A 2 M4x10
65 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1022A 7 4M/ M
66 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5357M 4 M3x6
67 ｺﾈｼﾞ 6ｶｸｱﾅﾎﾞﾀﾝ SCREW, HEX SOCKET BUTTON K5255T 1 M3x6
68 ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WASHER, SPRI NG W1021A 13 3M/M
69 ｺﾈｼﾞ SCREW K5158L 2 M2. 5x12 ﾊﾞｲﾝﾄﾞ ｺﾈｼﾞ
70 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1042A 4 4W‑ 3
71 ﾅｯﾄ 6ｶｸ NUT, HEX N1076A 15 M3 P=0. 5
72 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5359A 1 M4x6
4/4
機種( M/C TYPE) ユニット( UNI T) 発行日
I P・QP2 モータフィーダ( MOTOR FEEDER) 02. 11. 01
形式( TYPE) 図番( DWG No. ) S/N
W32 エンボス( EMBOSS) ( AKDFA64**) ( AKDFA74**) KDE‑ 32V0‑ 000246〜
番
号
品名 図番 個数
No. Dwg. No. QTY
備考
Remarks
Descri pt i on
73 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5357T 13 M3x8
74 ﾅｯﾄ 6ｶｸ NUT, HEX N1075A 2 M2. 5
75 ﾅｯﾄ 6ｶｸ NUT, HEX N1080A 5 M4
76 ｻｰｸﾘｯﾌﾟ CI R‑ CLI P S1021A 1 STｰEWｰ3
77 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5357H 5 M3x5
78 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1041A 4 M4
79 ｺﾈｼﾞ 6ｶｸｱﾅﾎﾞﾀﾝ SCREW, HEX SOCKET BUTTON K5255A 1 M3x4
80 ｺﾈｼﾞ 6ｶｸｱﾅﾎﾞﾀﾝ SCREW, HEX SOCKET BUTTON K52565 1 M4x6
81 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5358C 3 M3x12
82 ｺﾈｼﾞ +ｱﾅｻﾗ SCREW, C/R COUNTERSUNK K5169B 2 M2. 5x4( ﾕﾆｸﾛ)
83 ﾎﾞﾙﾄ 6ｶｸｱﾅ BOLT, HEX SOCKET H5275A 3 M3x8
84 ｼｰﾄ SHEET KHEM1081 1
85 ｼｰﾙ SEAL BFCF0351 1
86 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1039D 2 M2× 0. 3× 5( ﾐｶﾞｷ丸）
88 SW SW S3087S 1
89 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1039H 2 M2. 5
90 ﾎﾞﾙﾄ 6ｶｸｱﾅ BOLT, HEX SOCKET H5277A 6 M3X12
91 ﾜｯｼｬ ｻﾗ WASHER, CONI CAL W1010A 6 M‑ 3‑ L
92 ﾌﾟﾚｰﾄ PLATE KDCC1221 1
93 ｺﾈｼﾞ +ｱﾅﾅﾍﾞ SCREW, C/R PAN K51757 2 M2. 5X6
94 ﾜｯｼｬ ﾋﾗ WASHER, FLAT W1040A 8 M3
95 ｽﾍﾟｰｻ SPACER KDFC0421 1
96 ｼｰﾙ SEAL KDCC2011 1
97 ｼｰﾙ SEAL KDCC1651 1 QP‑ 3 onl y ｼｰﾙ Type7000のみ
98 ｼｰﾙ SEAL KDCC1641 1 QP‑ 3 onl y ｼｰﾙ Type7000のみ
99 ﾒｲﾊﾞﾝ NAMEPLATE KDFC0082 1
100 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5358F 1 M3x14
101 ｺﾈｼﾞ 6ｶｸｱﾅｻﾗ SCREW, HEX SOCKET COUNTERSUNK K5358A 6 M3x10
102 ﾅｯﾄ 6ｶｸ NUT, HEX N10743 2 M2. 5 3種 ステンレス
103 ﾊｰﾈｽ HARNESS KHEH1310 1 Type7000専用
Ref . 33‑ 7
Ref . 31‑ 1
Ref . 31‑ 1
Ref . 31‑ 1
Ref . 31‑ 1
ﾀﾃx173. 205
C
B
D
A
D
D
B
A
C
D
TYPE 7
0
00
TYPE
7000
45
120%
24. 125%
0. 5 1 2 10
49
92
71
40
88
44
93
47
39
91
90
85
3
26
16
74
75
71
68
94
95
11
22
96
5
73
73
66
102
63
63
63
63
63
72
63
54
54
15
15
9
43
63
75
65
78
75
65
78
75
65
78
101
73
73
73
73
25
29
24
23
10
50
56
46
46
44
51
8
28
63
53
66
68
79
63
77
12
34
35
38
38
36
42
63
73
18
4
37
37
14
55
2
66
20
30
27
70
68
83
70
68
83
64
57
13
17
63
63
63
77
73
7
41
8
58
6
19
67
68
65
80
65
31
76
52
59
1
32
33
48
61
62
86
102
60
21
21
21
21
71
68
94
71
68
94
71
68
71
94
102
102
98
97
81
81
81
100
99
89
60
69
89
60
69
84
KDE‑ 32V0‑ 000246〜

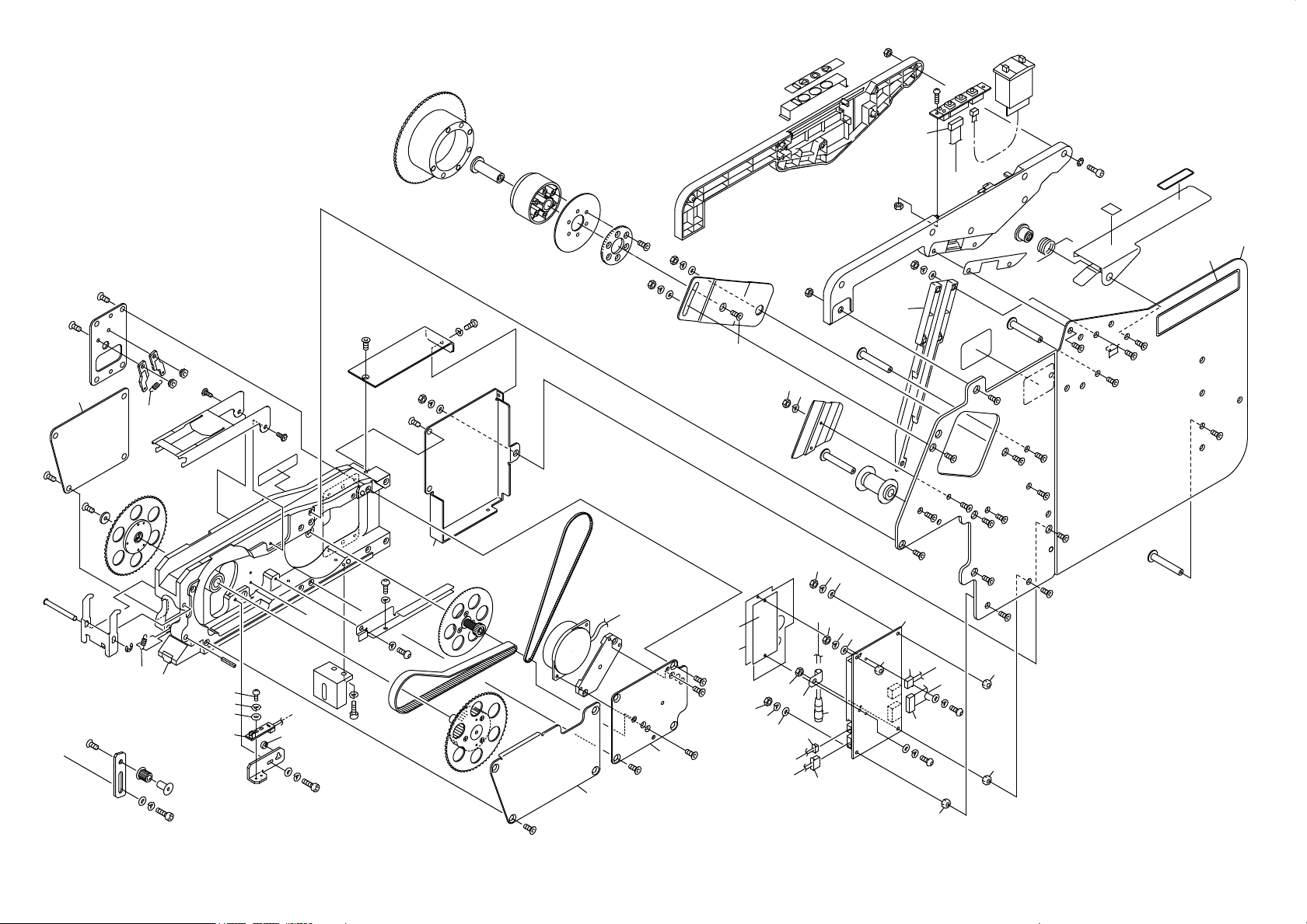

I P, QP2モータフィーダ W32 エンボス
I P, QP2 MOTOR FEEDER W32 EMBOSS
