The extremely versatile high-resolution systems YXLON FF35 CT and FF35 CT Metrology are designed for a huge variety of parts like - Electronic components incl. SMD - Products made from new materials or new manufactur - i…
Do you want to improve the material testing procedures
in your R&D department? Do you want to optimize your
process control and small series inspection?
Discover the versatility of the YXLON FF35 CT.
The extremely versatile high-resolution systems
YXLON FF35 CT and FF35 CT Metrology are designed
for a huge variety of parts like
- Electronic components incl. SMD
- Products made from new materials or new manufactur-
ing methods, e.g. additively manufactured components,
fiber-reinforced plastics
- Medical objects, e.g. cannulas
- Metal parts
- Organic and geological samples
Due to the dual x-ray tube configuration, FF35 CT
covers an extraordinarily wide bandwidth of parts and
applications. The transmission tube provides a resolution
in the submicron range and is recommended for
part sizes up to 10 mm, whereas the directional beam
tube having much higher power allows quick scans in
less than a minute. The FF35 CT is a dual-tube system
with two HV-cables and two generators without the
need for reconfigurations.
Experience a structured
CT inspection workflow
Typical applications for computed tomography are
- Research and Development
- Failure analysis
- Process control
- Inspection of small serial productions
- Quality assurance and material analysis
- Assembly checking
- Combined DR (digital radiography) and CT inspection
Al casting with
porosity analysis and
dimensional measurement
Based on the Yxlon system software Geminy which offers
easy, intuitive operation with touch screens and graphical
user interface, the FF35 CT / FF35 CT Metrology provide
numerous special features. The users benefit from
unrivaled image quality, utmost flexibility regarding the
bandwidth of applications, and compact cabinet design.
Various automated functions help to save time. Different
user levels support unskilled operators as well as
experienced experts to achieve optimum results in their
inspection tasks. Health monitor and push messages keep
the user informed about system status and inspection
progress.
A detailed description of the software platform Geminy is
available in a separate brochure.
It’s the inside
that matters
5
7
6
1
3
2
8
4

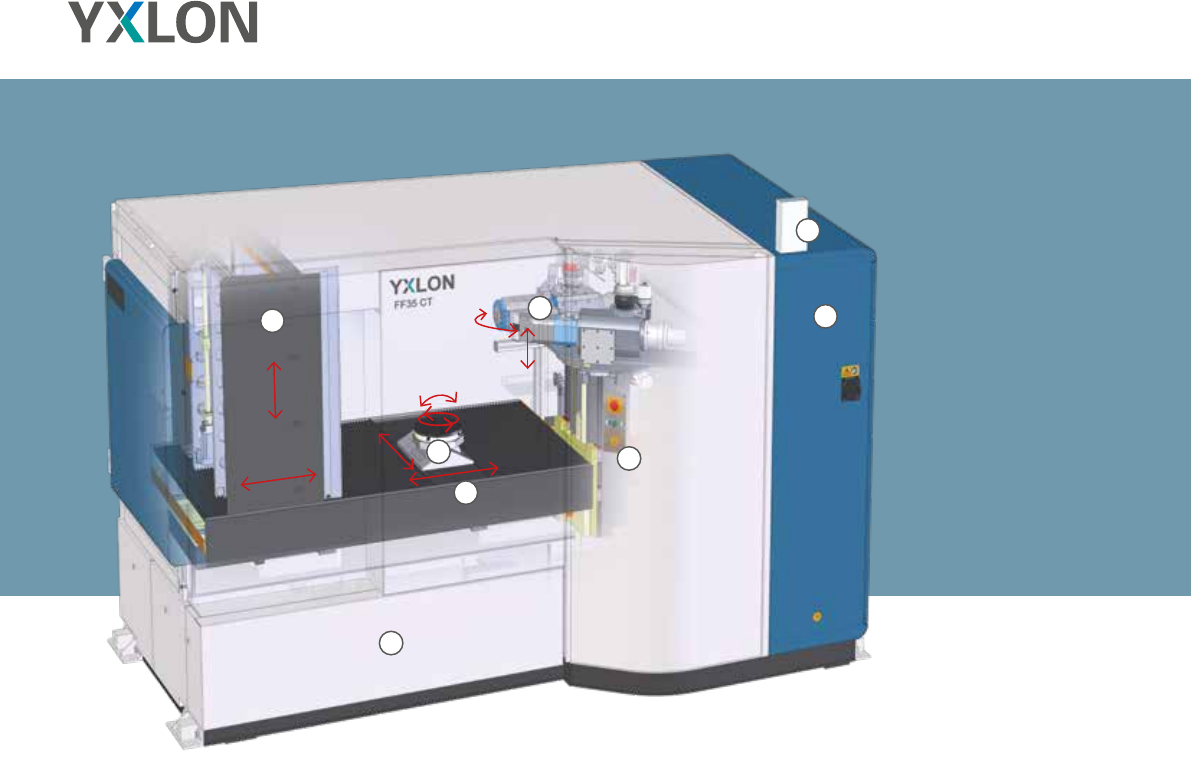

1 YXLON 225 kV micro-focus directional beam tube
- 320 W power and water-cooled target for
short scan times
- 2 modes for optimal adjustment of focal spot size
with respect to power
- 4 µm spatial resolution (2D image)
- TXI – „True X-ray Intensity“ for a long-term stable dose
Optional: YXLON 190 kV nano-focus transmission tube
- Water-cooled target and coils for quick temperature
balance and highest focal spot stability
- Diamond target for high power
- 4 modes for optimal adjustment of focal spot size
with respect to power
- 150 nm detail detectability (2D image)
- TXI – „True X-ray Intensity“ for long-term stability
