P-0292-004.pdf - 第41页
G -S003-15 0801-002 301-12 301-08 301-07 301-01 301-03 301-02 301-09 301-04 301-05 301-16 301-06 301-17 301-1 1 301 301-14 301-13 301-10 301-15 301-13 301-14 301-1 1 301-27 301-26 . 301-22 . 301-32 301-31 . 301-21 . 301-…
G -S003-15
0801-002
314
361
310
307
309
313
306
305
311
302
304
303
312
301
321
316
316
320
327
322
A
A
328
360
360
356
376
366
.
351
.
376
366
.
362
.
376
366
.
351
.
377
367
.
352
.
379
369
.
359
.
380
370
.
355
358
.
381
371
.
357
.
378
368
.
353
.
382
368
.
354
.
377
367
.
352
.
376
366
.
351
.
E32-T14L
PM-L44
CQSB16-5D
E32-T14L
EX-14A
M2X6
SW2
FW2
M2X6
SW2
FW2
M4X16
M5X12
SW4
FW4
M5X20
M2X6
PAN
SW5
FW5
M2X6
SW2
FW2
M2
SW2
FW2
M3X14
M3X4 SET
M3X4 SET
SW3
FW3
M3X25
SW3
FW3
M2.5X16
RING E 1.5
SW2.5
FW2.5
M3X12 PAN
SW3 F
FW3 F
M2.5X16
SW2.5
FW2.5

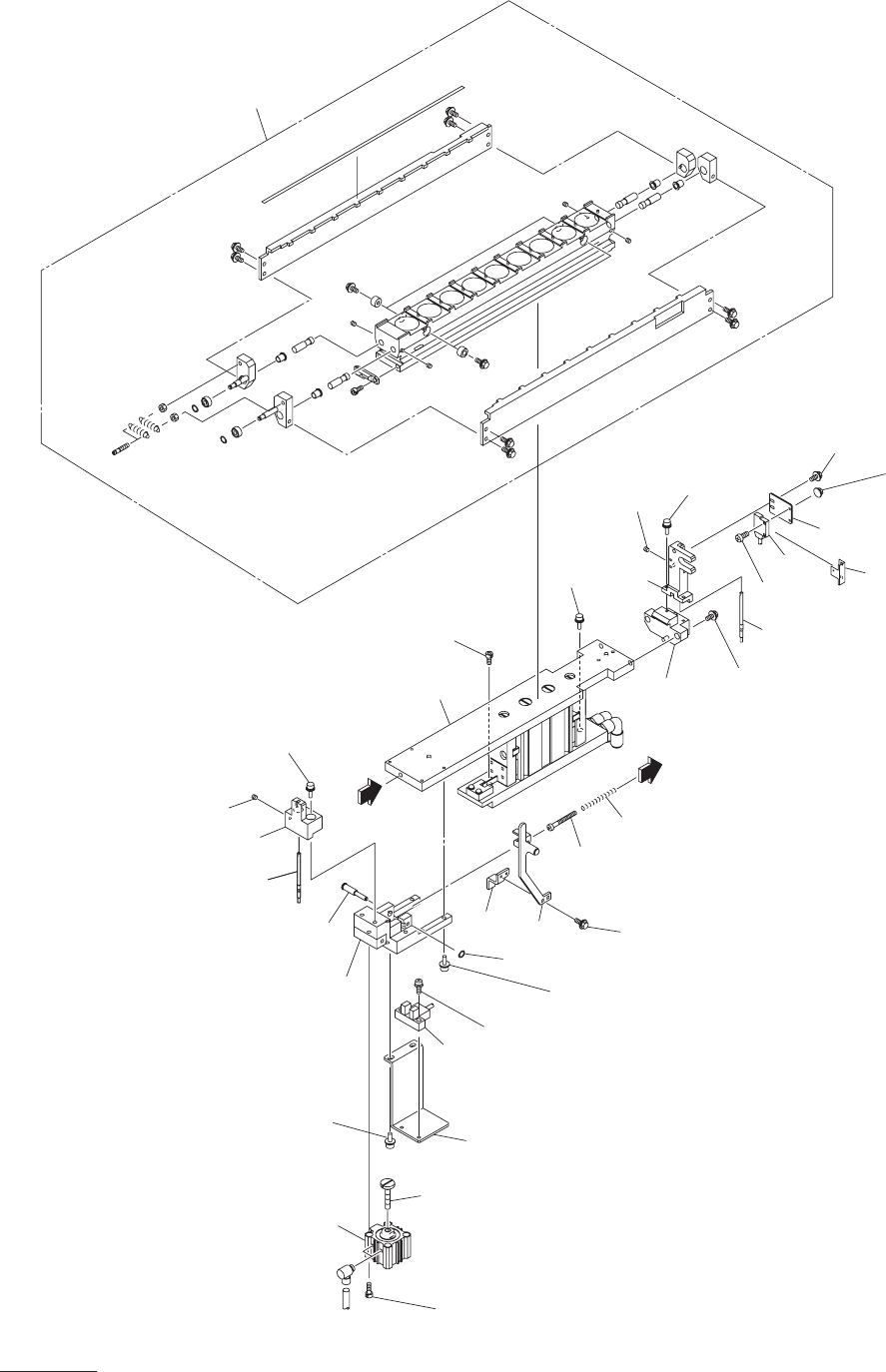

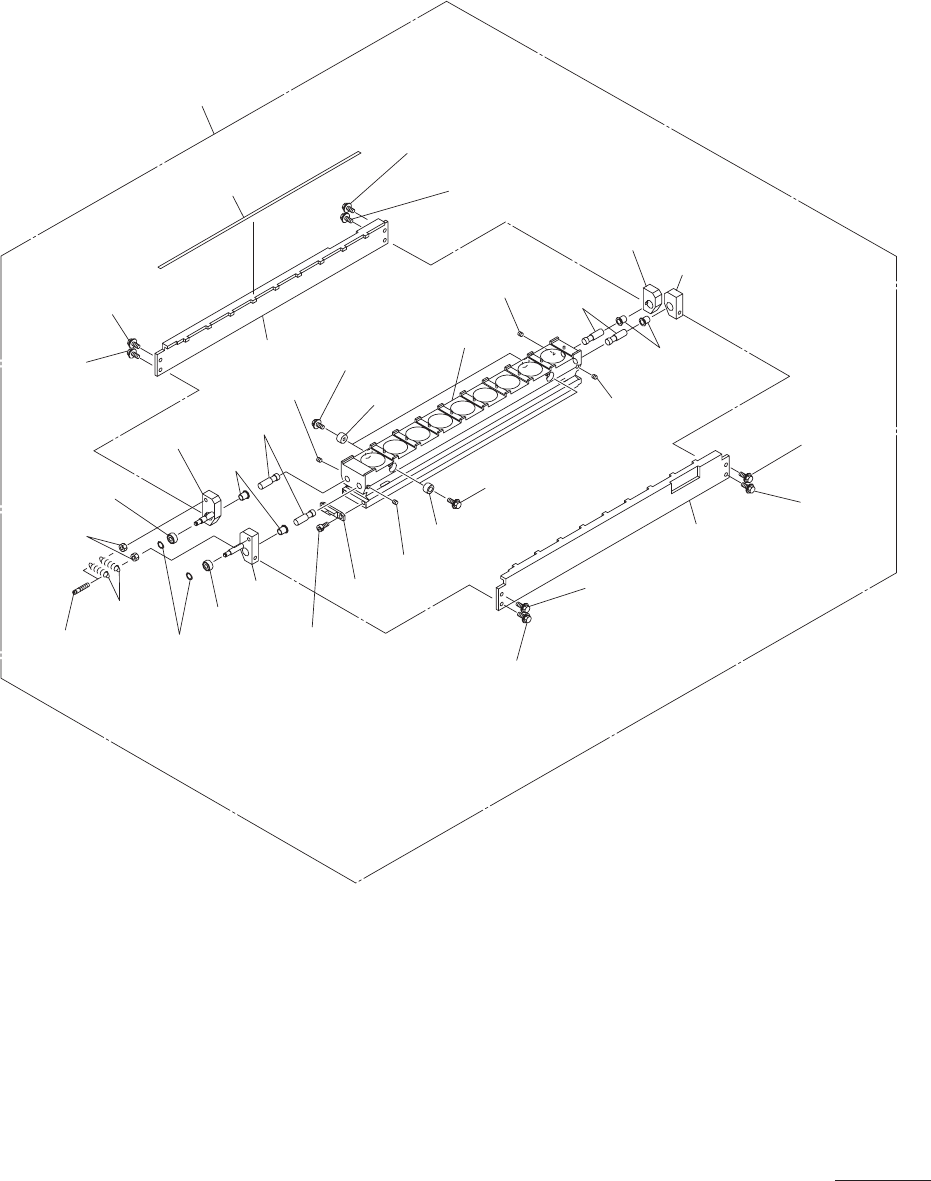

ノズルストッカ
2,3
Nozzle Stocker 2,3
(G -S003-15) (G -S003-15)
Fig. HT-4
ノズルストッカ２
Nozzle Stocker 2
HT-4 illust-1
G -S003-15
0801-002
301-12
301-08
301-07
301-01
301-03
301-02
301-09
301-04
301-05
301-16
301-06
301-17
301-11
301
301-14
301-13
301-10
301-15
301-13
301-14
301-11
301-27
301-26
.
301-22
.
301-32
301-31
.
301-21
.
301-32
301-31
.
301-21
.
301-27
301-26
.
301-22
301-22
.
301-27
301-26
.
301-22
.
301-27
301-26
.
301-22
301-25
301-25
301-25
301-25
.
301-27
301-26
.
301-29
301-24
.
301-27
301-26
.
301-29
.
301-27
301-26
.
301-29
.
301-27
301-26
.
301-29
.
693ZZ
693ZZ
JZF5-6
JZF5-6
RING E 2
JZF5-6
JZF5-6
M2X6
SW2
FWS2
M3X8
M3X8
M3-3
M3-3
M3X4 SET
M3X4 SET
M3X4 SET
M3X4 SET
SW3
FW3
M3X8
SW3
FW3
M3X6
SW3
FW3
M3X6
SW3
FW3
M3X6
SW3
FW3
M3X6
SW3
FW3
M3X8
SW3
FW3
M3X8
SW3
FW3
M2X6
SW2
FWS2
ノズルストッカ
2,3
Nozzle Stocker 2,3
(G -S003-15) (G -S003-15)
Fig. HT-4
ノズルストッカ２
Nozzle Stocker 2
HT-4 illust-2
G -S003-15
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
HT-4
HT-4 list-1
301 6301484525 ASSY,BLOCK 1
868HTA100010-A001
011G0047
301 -01 6301347233 BLOCK 1 211G3953
301 -02 6301377742 COVER 1 211A9884
301 -03 6301377759 COVER 1 211A9885
301 -04 6301331706 LEVER 1 216S2747
301 -05 6301331713 LEVER 1 216S2748
301 -06 6301331720 LEVER 1 216S2749
301 -07 6301331737 LEVER 1 216S2750
301 -08 6301316383 PIN,HINGE 2 216D0479
301 -09 6301316727 PIN,HINGE 2 216D0481
301 -10 6301432625 SPRING,TENSION 2 222N1362
301 -11 6301326047 BLOCK 4 211G3836
301 -12 6301376998 BLOCK 1 211G4129
301 -13 6300553482 BEARING,RADIAL 2 222D0259
301 -14 6301316536 BUSH,LINEAR 4 215B0117
301 -15 4110009304 RING E 2 2 221K0095
301 -16 6301347455 NAME PLATE,INDEX 1 6P460154
301 -17 6301413723 PIN,HINGE 2 216D0528
301 -21 6300007466 BOLT,HEX-SCT 2 M2X6 221A0001
301 -22 6300007510 BOLT,HEX-SCT 6 M3X8 221A0006
301 -24 4111410109 NUT HEX 3 2 M3-3 221F0101
301 -25 6300008883 SET SCREW 4 M3X4 SET 221C0001
301 -26 4111412806 WASHER SPR 3 8 SW3 221H0281
301 -27 4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
301 -29 6300007503 BOLT,HEX-SCT 4 M3X6 221A0005
301 -31 4111412608 WASHER SPR 2 2 SW2 221H0277
301 -32 4111415500 WASHER F 2X4.3X0.3 2 FWS2 221H0334
302 6301376257 BLOCK 1
868HTA100010-A002
211G4118
303 6301347257 BLOCK 1
868HTA100010-A003
211G3955
304 6301376264 BLOCK 1
868HTA100010-A004
211G4119
305 6301376271 BLOCK 1
868HTA100010-A005
211G4120
306 6301383477 LEVER 1
868HTA100010-A006
216S2865
307 6301316468 PIN,HINGE 1
868HTA100010-A007
216D0480
309 6301316420 BOLT 1
868HTA100010-A009
221E0321
310 6301315751 SPRING,COMP 1
868HTA100010-A010
222M1350
311 6301331539 PLATE 1
868HTA100010-A011
211DA182
312 6301598109 BRACKET 1
868HTA100010-A012
211FC825
313 6301331782 PLATE 1
868HTA100010-A013
211DA187
314 6301501475 BRACKET 1
868HTA100010-A014
211FB357
316 6301316567 SENSOR,PELEC 1
868HTA100010-A016
23G00257
320 6301346700 CYLINDER(ASSY) 1
868HTA100010-A020
224C0566
321 6300717716 SENSOR,PELEC 1
868HTA100010-A021
23G00147
322 6301316529 CYLINDER 1
868HTA100010-A022
224C0556
327 6301347097 SENSOR,PHOTO 1
868HTA100010-A027
23G10091
328 4111129209 SCR PAN 2X20 1
868HTA100010-A028
221E0481
MS-G300L
G -S003-15
