MACHINE PC Q35
PC ENCLOSURE
6.4 Technical Reference Manual Chapter Issue 5, Jan 15

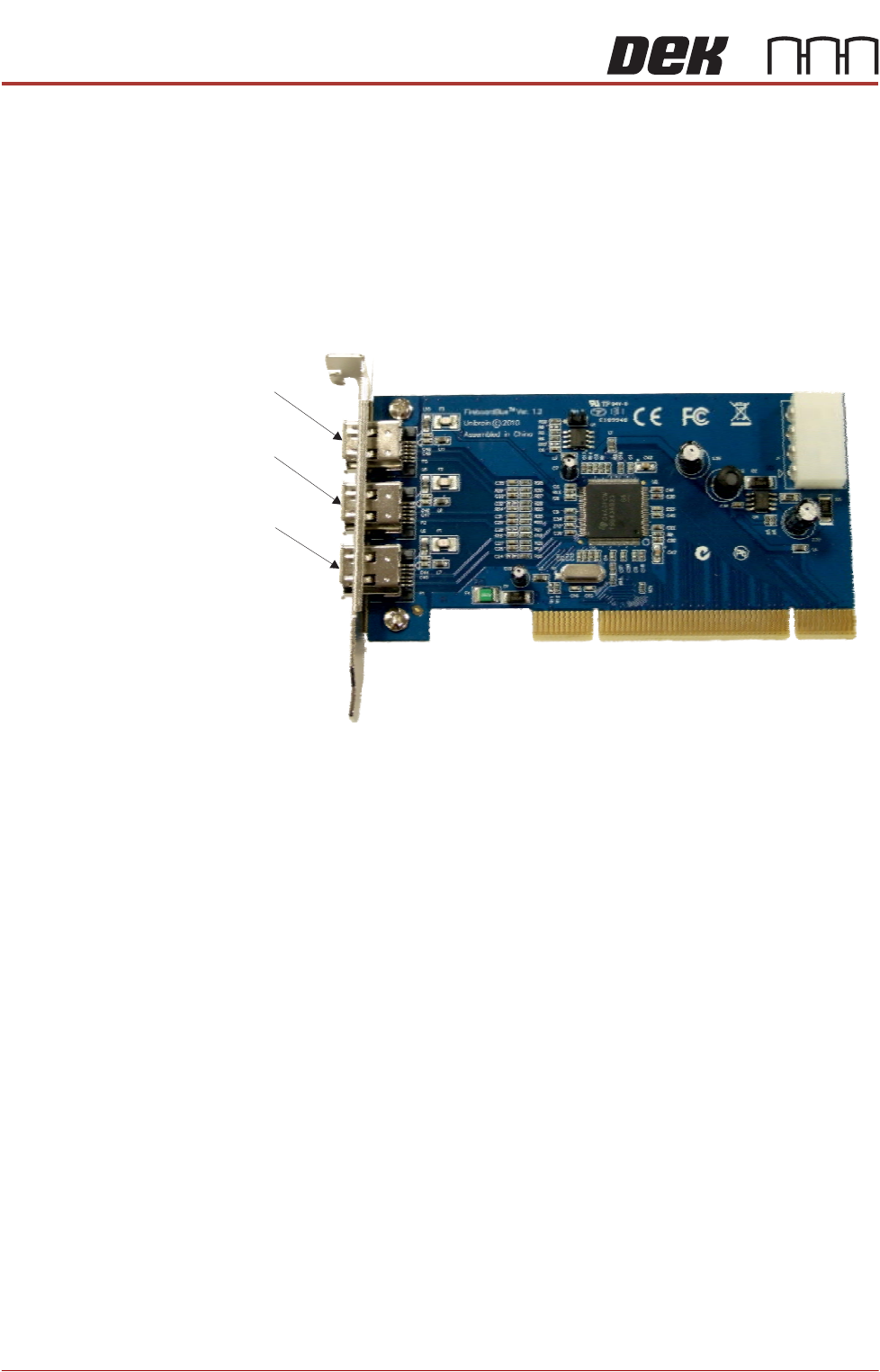

PCI Interface Card The Unibrain Fireboard-Blue
TM
400 host adaptor is a PCI interface board that
enables the PC with IEEE-1394 functions. The features include:
• IEEE - 1394 Compliance
• Up to 400 Megabits per second
• 3 External Connectors
• Open Architecture API (OHCI Compliant)
• Compatibility Assurance
Port 1
Port 2
Port 3
MACHINE PC Q35
PC ENCLOSURE
Chapter Issue 5, Jan 15 Technical Reference Manual 6.5
Front Panel Connectors
Item Type Connector Description
1 RJ45 3SK02 LAN Host Comms
2 PCI 400 Interface Card - Port 1 3SK55 Digital Camera
3 PCI 400 Interface Card - Port 2 3SK54 Not Used
4 PCI 400 Interface Card - Port 3 3SK53 Not Used
5 Jack Socket (Blue) 3SK49 Line In - Not Used
6 Jack Socket (Green) 3SK47 Line Out - Not Used
7 USB Type A 3SK35 USB4 - NextMove ES
8 USB Type A 3SK34 USB3 - Spare
9 USB Type A 3SK36 USB2 - Dongle
10 USB Type A 3SK37 USB1 - M37 PSU
11 15 Way Condensed D Type Socket 3SK05 SVGA
12 25 Way D Type Socket 3SK06 Parallel Port Printer - Not Used
13 9 Way D Type Plug 3PL03 COM1 RS232 - Not Used
14 PS/2 3SK07 Mouse - Not Used
15 PS/2 3SK04 Keyboard - Not Used
16 USB Type A 3SK56 USB5 - Covers LH USB Connector (metal covers
machines only)
17 USB Type A 3SK57 USB6 - USB Hub
18 USB Type A 3SK58 USB7 - Covers RH USB Connector
19 USB Type A 3SK59 USB8 - Remote Barcode Reader
1 2
3
4
5
6
7
8910
1112
13
14
15
16
17
18
19
0
PC Enclosure PanelFront
MACHINE PC Q35
PC ENCLOSURE
6.6 Technical Reference Manual Chapter Issue 5, Jan 15
LAN Host Comms (3SK02)
SVGA Monitor (3SK05)
USB 1 - USB 8
Pin No.SignalPin No.Signal
1+ve Transmit 5N/C
2 -ve Transmit 6 -ve Receive
3 +ve Receive 7 N/C
4 N/C 8 N/C
Pin No.SignalPin No.Signal
1 Analogue Red 9 N/C
2 Analogue Green 10 V Sync GND
3 Analogue Blue 11 ID 0
4 ID 2 12 ID 1
5 H Sync GND 13 H Sync
6 Red GND 14 V Sync
7 Green GND 15 ID 3
8Blue GND
Pin No. Signal Pin No. Signal
1V Bus 3Data +
2 Data - 4 GND
1
8
RJ45
15 Way Condensed
D Type Socket
10
1
5
11
12
3
4
USB Type A Socket
