MACHINE PC Q35
PC ENCLOSURE
6.6 Technical Reference Manual Chapter Issue 5, Jan 15
LAN Host Comms (3SK02)
SVGA Monitor (3SK05)
USB 1 - USB 8
Pin No.SignalPin No.Signal
1+ve Transmit 5N/C
2 -ve Transmit 6 -ve Receive
3 +ve Receive 7 N/C
4 N/C 8 N/C
Pin No.SignalPin No.Signal
1 Analogue Red 9 N/C
2 Analogue Green 10 V Sync GND
3 Analogue Blue 11 ID 0
4 ID 2 12 ID 1
5 H Sync GND 13 H Sync
6 Red GND 14 V Sync
7 Green GND 15 ID 3
8Blue GND
Pin No. Signal Pin No. Signal
1V Bus 3Data +
2 Data - 4 GND
1
8
RJ45
15 Way Condensed
D Type Socket
10
1
5
11
12
3
4
USB Type A Socket
MACHINE PC Q35
PC ENCLOSURE
Chapter Issue 5, Jan 15 Technical Reference Manual 6.7
Parallel Printer Port (3SK06)
COM 1 RS232 (3PL03)
Pin No.SignalPin No.Signal
1 /Strobe 14 /Auto Feed
2 Data Bit 0 15 /ERROR
3 Data Bit 1 16 /INIT
4 Data Bit 2 17 /SLCT IN
5Data Bit 3 18GND
6Data Bit 4 19GND
7Data Bit 5 20GND
8Data Bit 6 21GND
9Data Bit 7 22GND
10 ACK (Low Active) 23 GND
11 BUSY 24 GND
12 PE (Paper End) 25 GND
13 SLCT
Pin No.SignalPin No.Signal
1 Data Carrier Detect (DCD) 6 Data Set Ready (DSR)
2 Receive Data (RxD) 7 Request To Send (RTS)
3 Transmit Data (TxD) 8 Clear To Send (CTS)
4 Data Terminal Ready (DTR) 9 Ring Indicator (RI)
5 Signal Ground (GND)
25 Way D Type Socket
14
1
MACHINE PC Q35
PC ENCLOSURE
6.8 Technical Reference Manual Chapter Issue 5, Jan 15

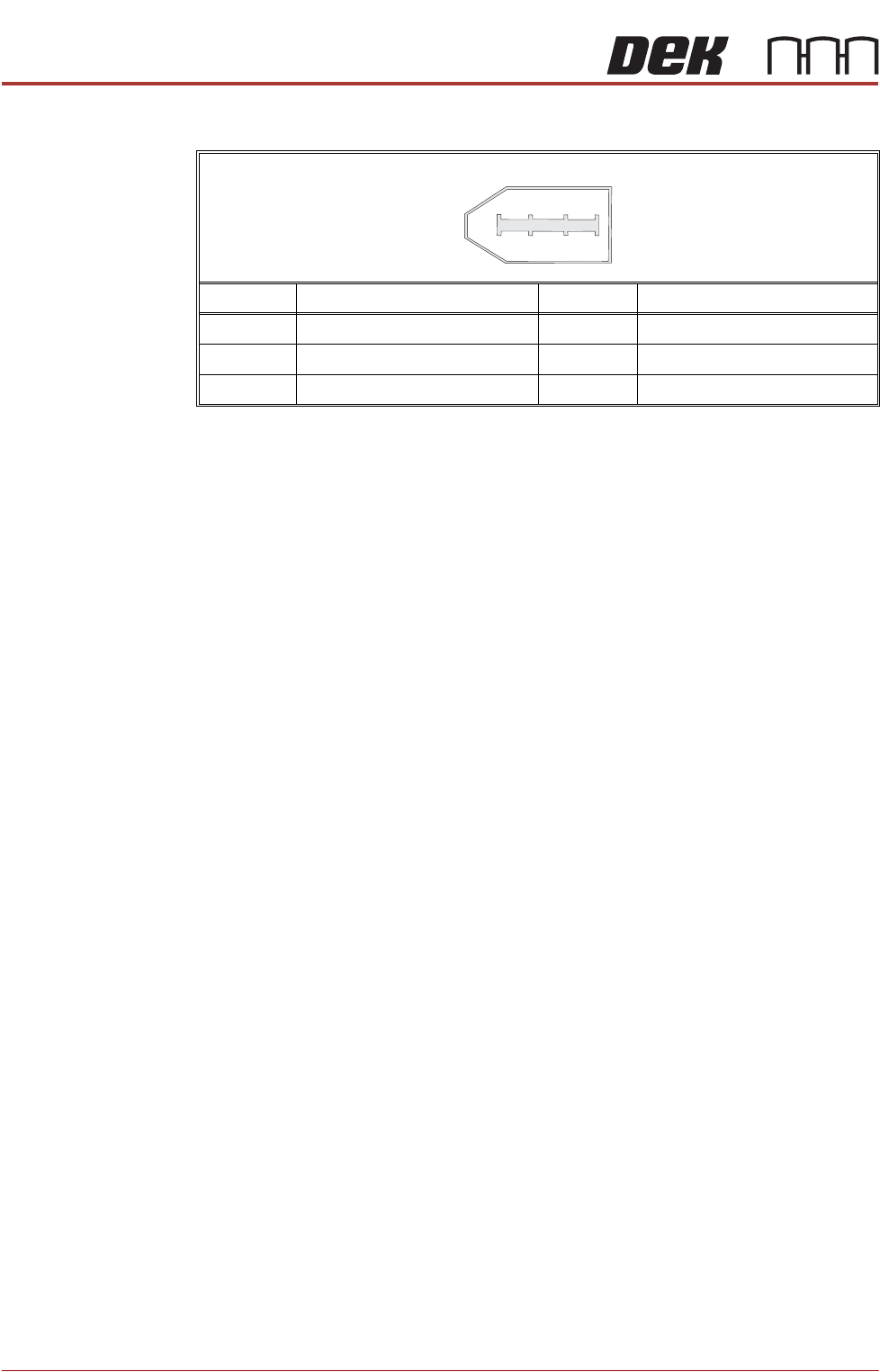

PCI Interface Card (Port 1 - Port 3)
Peripheral Devices
DVD ROM Drive The 5.25 inch DVD ROM Drive is located at the top front of the enclosure and
is used for installing machine software.
Parallel Port An ATX back plate provides a standard bi-directional parallel port 25 way printer
interface.
Pin No.SignalPin No.Signal
1 Power 4 Twisted Pair B+
2 Ground 5 Twisted Pair A-
3 Twisted Pair B- 6 Twisted Pair A+
1
5
2
6
3
4
