InJet ® 388 TRIPLE CRRD TECHNICAL DATA SHEET www.dct.cleaning 5 metric units imperial units Power supply 400 V, 32A, 50Hz (3+N+PE) UL 400 V, 32A, 60Hz (3+N+PE) Pmax 16 kW 16 kW Connection to central air pressure Pipe Ø 6…

100%1 / 8
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
www.dct.cleaning
4
metric units imperial units
Dimensions (w x l x h) 1205 x 3200 x 1860 mm 47.4 x 126 x 73.2 in
Weight 890 kg 1962 lbs
Ø energy consumption per cycle 1.65 kWh 1.65 kWh
Cleaning and rinsing uid consumption per cycle 0,05 – 0,3 L 1.28 - 10.24 ounces
Compressed air consumption per cycle 2 L / 5 Bar 0.53 gal /72.5 PSI
Max. dimensions of the cleaned parts 100 x 810 x 740 mm 5.12 x 31.89 x 29.13 in
Exchangeable mechanical lter
of cleaning and rinsing uid
5 - 200 μm 5 - 200 μm
Spraying pressure / 45 °C / 113 °F 2,4 Bar 34.8 PSI
Cleaning uid ow rate 200 L / min 52.8 gal / min
Temperature range setting
of the cleaning and rinsing uid
From ambient temperature to 60 °C From ambient temperature to 140 °F
Conductivity range settings of the rinsing
uid in the tanks
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80 °C From ambient temperature to 176 °F
Noise level < 70 dB < 70 dB
Device control PLC + 8.4“ touchscreen PLC + 8.4“ touchscreen

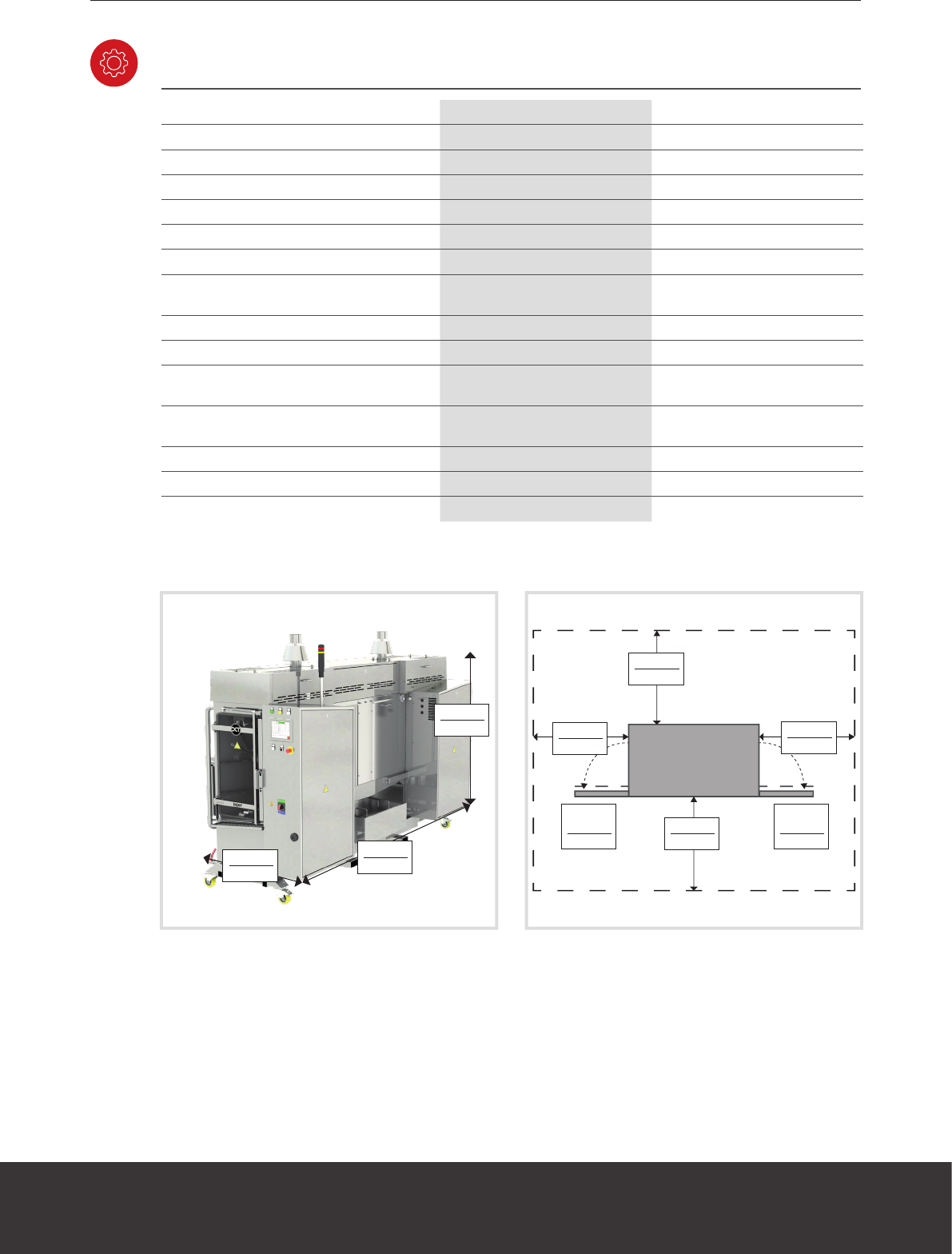

TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
1860 mm
73.2 in
3200 mm
126 in
1205 mm
47.4 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
open door
450 mm
17.7 in
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
www.dct.cleaning
5
metric units imperial units
Power supply 400 V, 32A, 50Hz (3+N+PE) UL 400 V, 32A, 60Hz (3+N+PE)
Pmax 16 kW 16 kW
Connection to central air pressure Pipe Ø 6 mm and Ø 10 mm Pipe ID 0.24 in and ID 0.39 in
Recommended working pressure 5 Bar 72.5 PSI
Exhaust pipe diameter - 3x Ø 100 mm ID 3.94 in
Exhaust pipe capacity 580 m
3
/h 20450 ft
3
/h
Minimum liquid for rst ll 2 x 75 L 2 x 19,8 gal
Service space required around the device 600 mm 23.6 in

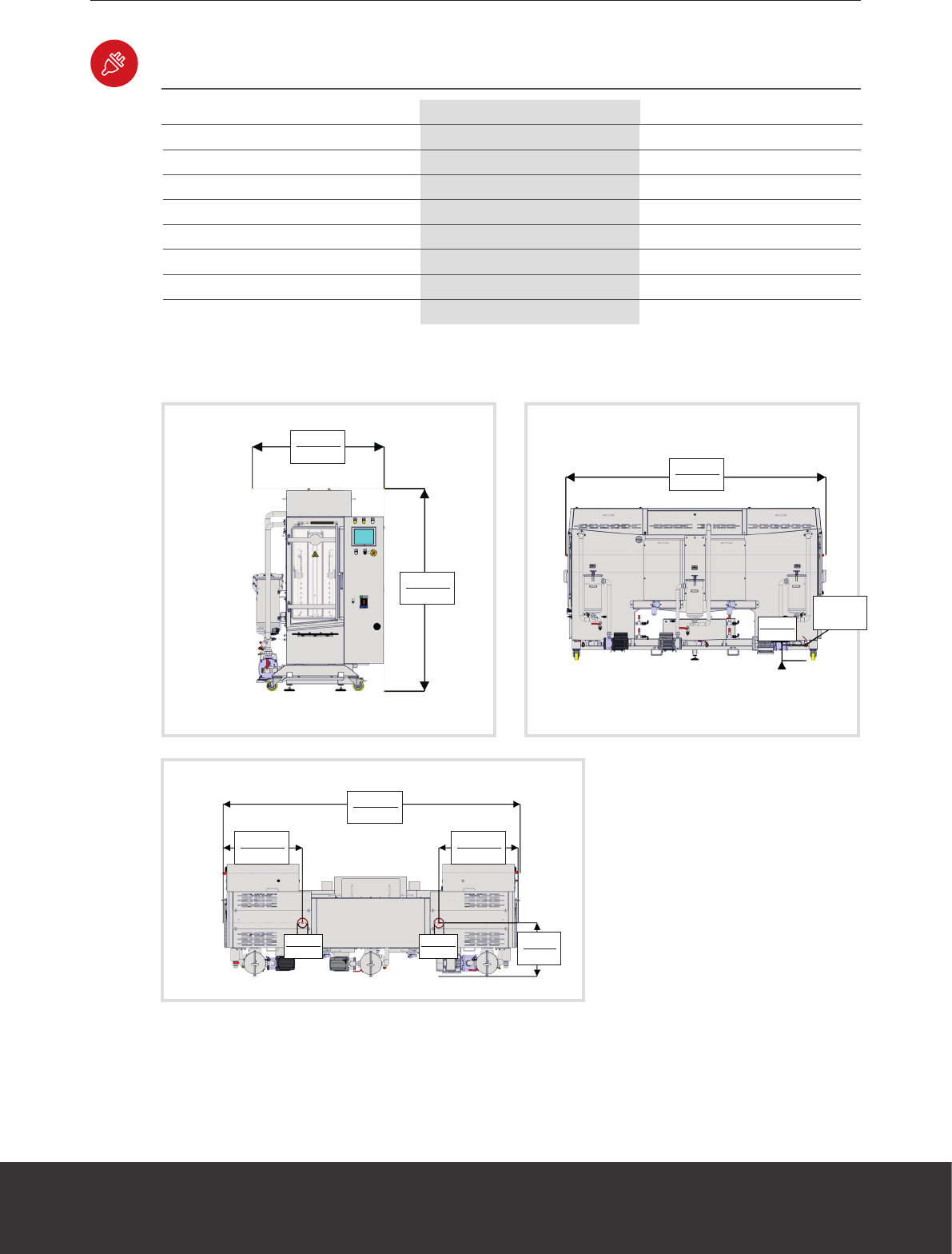

INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
1860 mm
73.2 in
LEFT
VIEW
1205 mm
47.4 in
discharge
of the fluids
845 mm
33.3 in
845 mm
33.3 in
3200 mm
126 in
3200 mm
126 in
570 mm
22.4 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
190 mm
7.48 in
InJet
®
388 TRIPLE CRRD
TECHNICAL DATA SHEET
www.dct.cleaning
6
3 process chamber - fully automatted solution
100% closed loop uid systém
3 arm rotation - electric powered - cleaning
2 arm rotation - electric powered - rinsing
Cleaning and rinsing uid heating
2 hot air blowers - drying
Chimney ap - electronically controlled
Pneumatic door lock
Emergency stop button
Manipulation wheels - lockable
Electronic monitoring of the uid pressure
PLC controller + 8,4“ touchscreen display
Spare parts (base kit)
STANDARD HARDWARE EQUIPMENT
Electronic monitoring of uid level
Electronic monitoring of uid pressure
Electronic cycle counter
3 level of logging - operator, maintenance, technician
Spraying uid pressure - continuous measurement
Standard software language mutation - CZ, ENG
Liquid and lter replacement notication – cycle counting
Possibility of 5 programs - setting option
Smart warning - low or high pressure level
Smart warning - low uid level
STANDARD SOFTWARE EQUIPMENT
