SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50184
3/5
3. Function
In this function, the conveyor transfer way changed by machine setting can be changed now
on [Board]-[Board]-[ConveyTransferWay]. *Change of the conveyor transfer way by machine
setting is also possible as the present condition.
Fig.2.1 Machine setting screen
Fig.2.2 [Board] - [Board] screen
Until now, it had changed by [Setting]-[Machine Data]-
[Mechanical]-[Position]-[Conveyor]-[Convey Spec].
A setup became possible in [Board]-[Board]
-
[Conveyor Transfer Way].
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50184
4/5
4. Setting
In order to set up the "Conveyor Transfer Way", set up the conveyor way used for [Board]-
[Board] - [Conveyor Transfer Way]. The choices are "Machine Setting", "Normal", and "Fast"
*1
.
When "Machine Setting" is chosen, it becomes the conveyor transfer way set as the machine
setup
*2
. When the [Conveyor Transfer Way] set as each lane differs in the case of a dual lane, a
red display is carried out as follows. Moreover, the conveyor transfer way at that time becomes
as in Table 2.1.
*1
About YSM40, "Normal" changes "Each" and "Fast" changes a display to "Quasi-Simul", respectively.
*2
An initial value serves as "Machine setting".

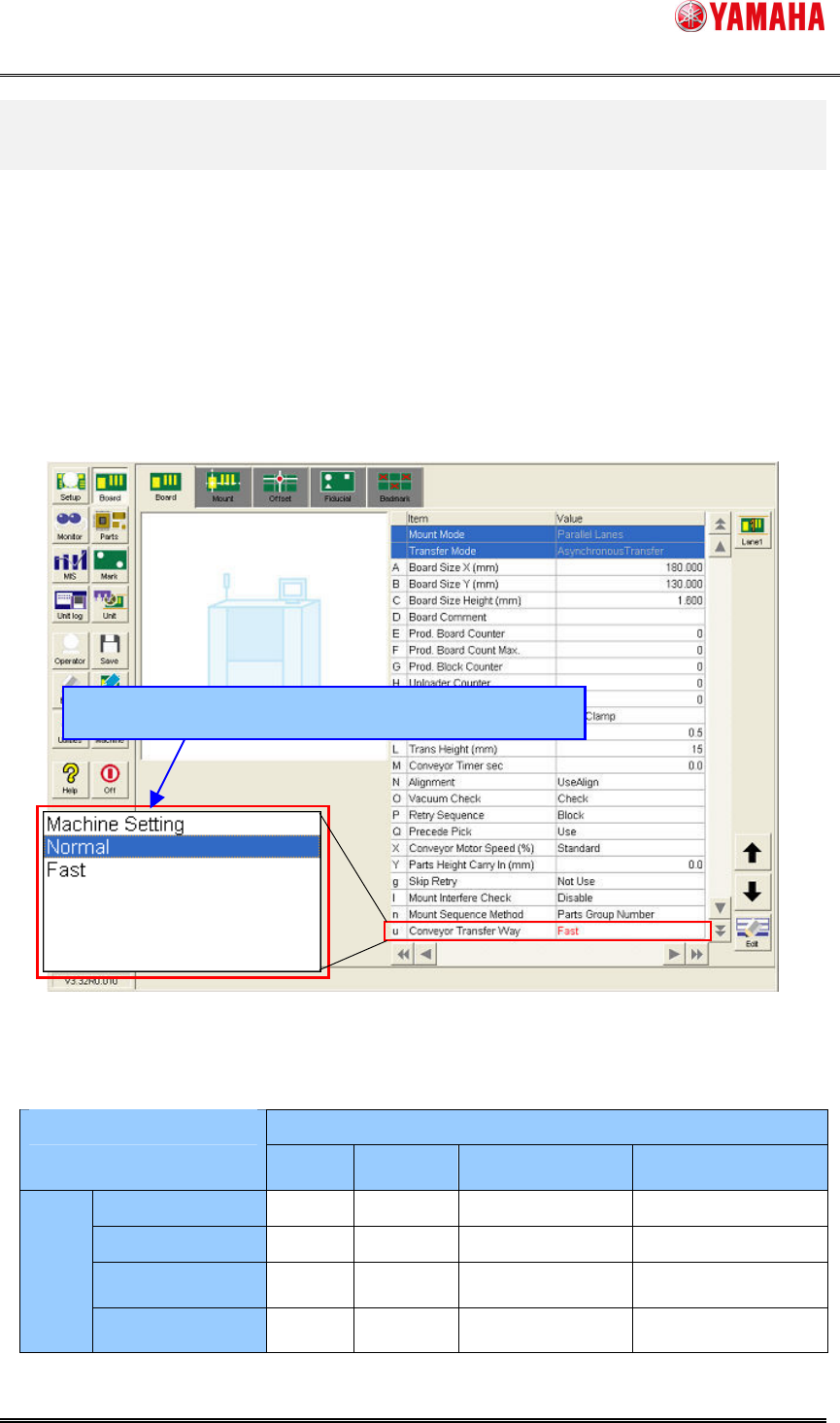

Fig.3.1 [Board] - [Board] screen
Table.2.1 Conveyor transfer way for dual lane
Lane2
Normal
Fast
Machine Setting
(Normal)
Machine Setting
(Fast)
Normal Normal
Normal Normal Normal
Fast Normal
Fast Normal Fast
Machine Setting
(Normal)
Normal
Normal Normal -
Lane1
Machine Setting
(Fast)
Normal
Fast - Fast
*
When setup of each lane differs, it becomes for safety "Normal Transfer Way".
The choices are "Machine Setting", "Normal", and "Fast".
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50184
5/5
5. Limitations
1. When the board data are saved in non-correspondence version, the conveyor transfer
way becomes "Machine Setting".
2. In the case of a dual lane, conveyance that is different on each lane cannot be performed.
When setup of each lane differs, it becomes for safety "Normal Transfer Way".
3. [Unit] – [Conveyor] – [Convey Type] displays the conveyor transfer way set as the
machine.

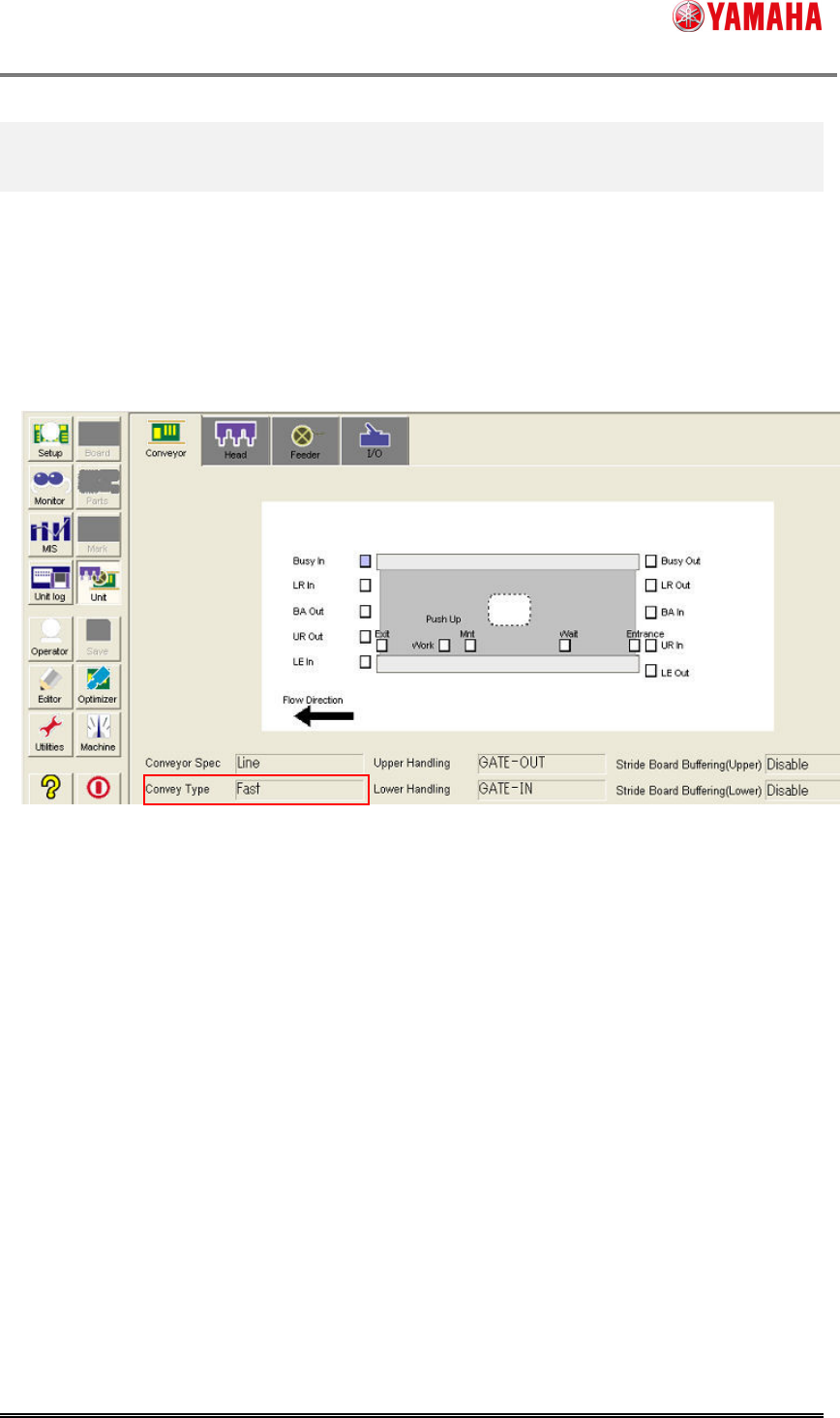

Fig.4.1 [Unit] - [Conveyor] screen
