SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50047
1/4
YS24 Matrix Plate
Contents
YS24 Matrix Plate ....................................................................1
1. Introduction .......................................................................2
2. Summary .........................................................................2
3. Settings ..........................................................................3
4. Limitations .......................................................................4
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50047
2/4
1. Introduction
The target model and the version are as follows.
Table 1 Target model and Target version
Item Object Remarks
Target model YS24 Dual Stage Machine Only
Target version V3.10STD R1.000 or later
2. Summary
Matrix Plate which is the hardware special function has been supported.

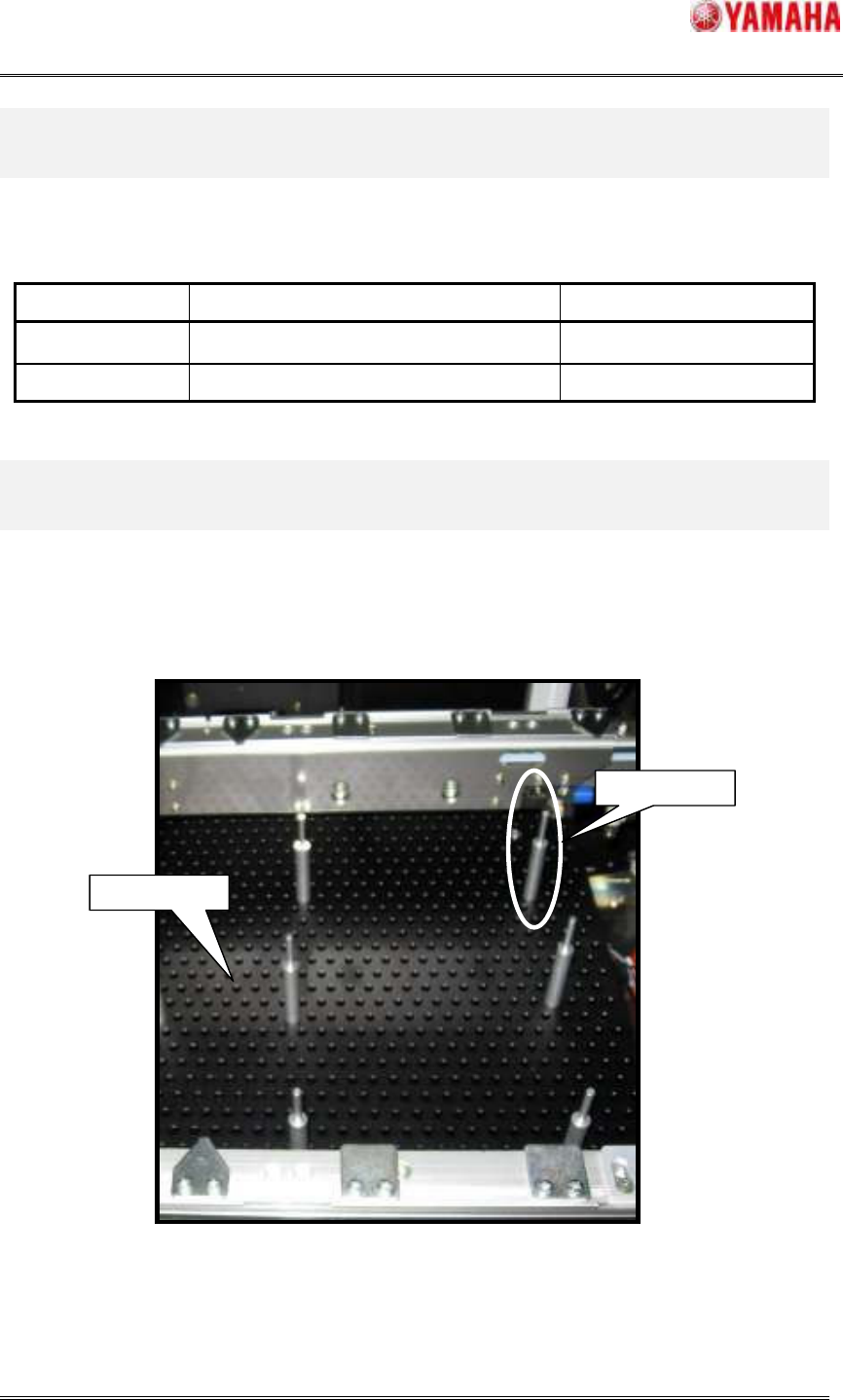

Matrix Plate (Fig 3.1) is the pushup plate which has the hole to set the backup pin (exclusive use).
Because the backup pin is set in that hole, the backup pin can be set up accurately.
Fig 3.1 Matrix Plate
Backuppin
MatrixPlate
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50047
3/4

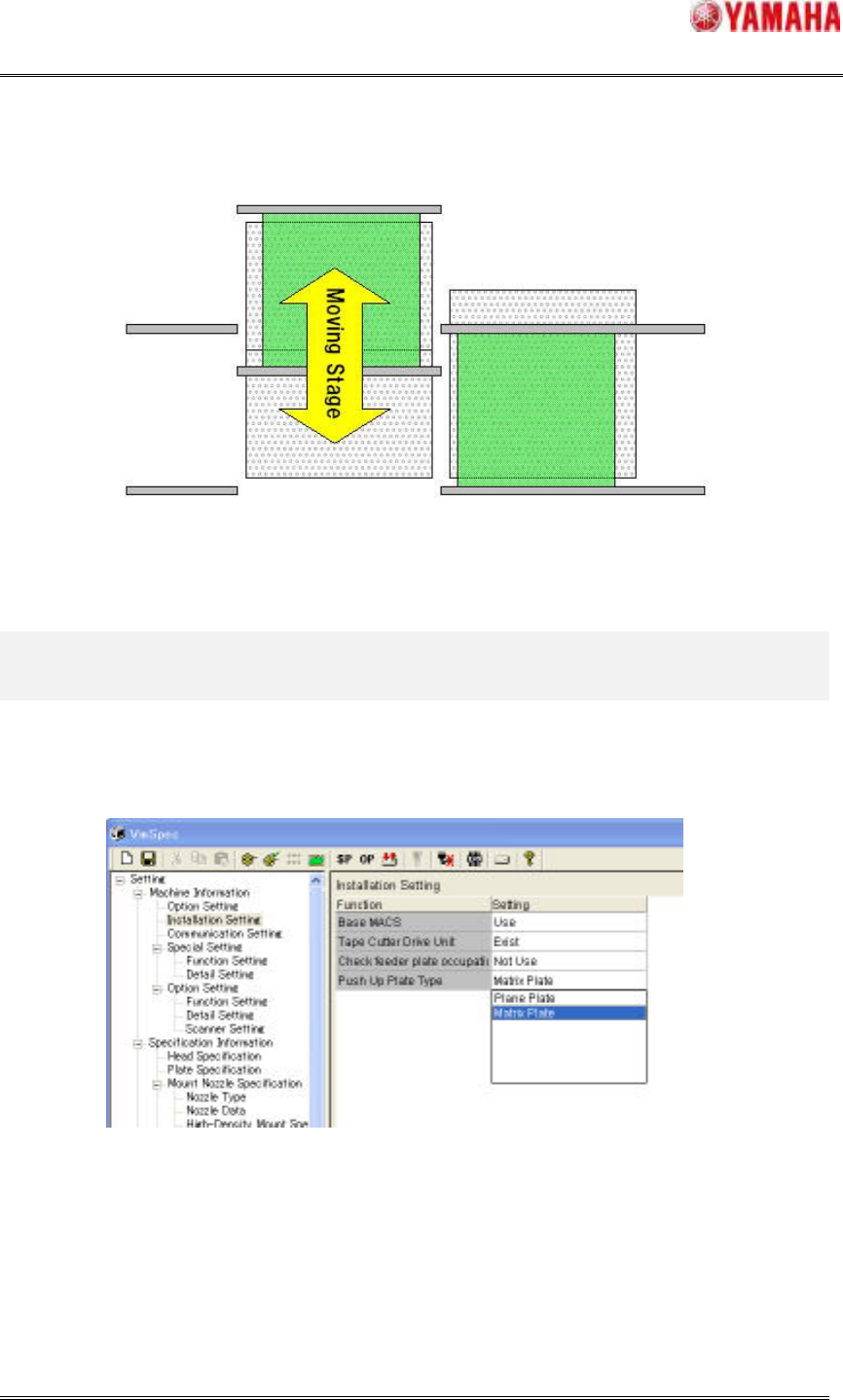

A board fixed position of the moving stage side is changed with considering the position of the matrix
pinhole. (Fig 3.2)
Fig 3.2 Ys24 Image
When Matrix Plate which is the hardware special function is used, the following setting is needed.
3. Settings
Please set to “Matrix Plate” on [Setting] - [Machine Information] - [Installation Setting] - [Push Up
Plate Type]. (Fig 3.3)
Fig 3.3 Settings
