3.4 The [Monitor]-[PSC] screen
Items displayed on the [Monitor] screen differ depending on a selected function.

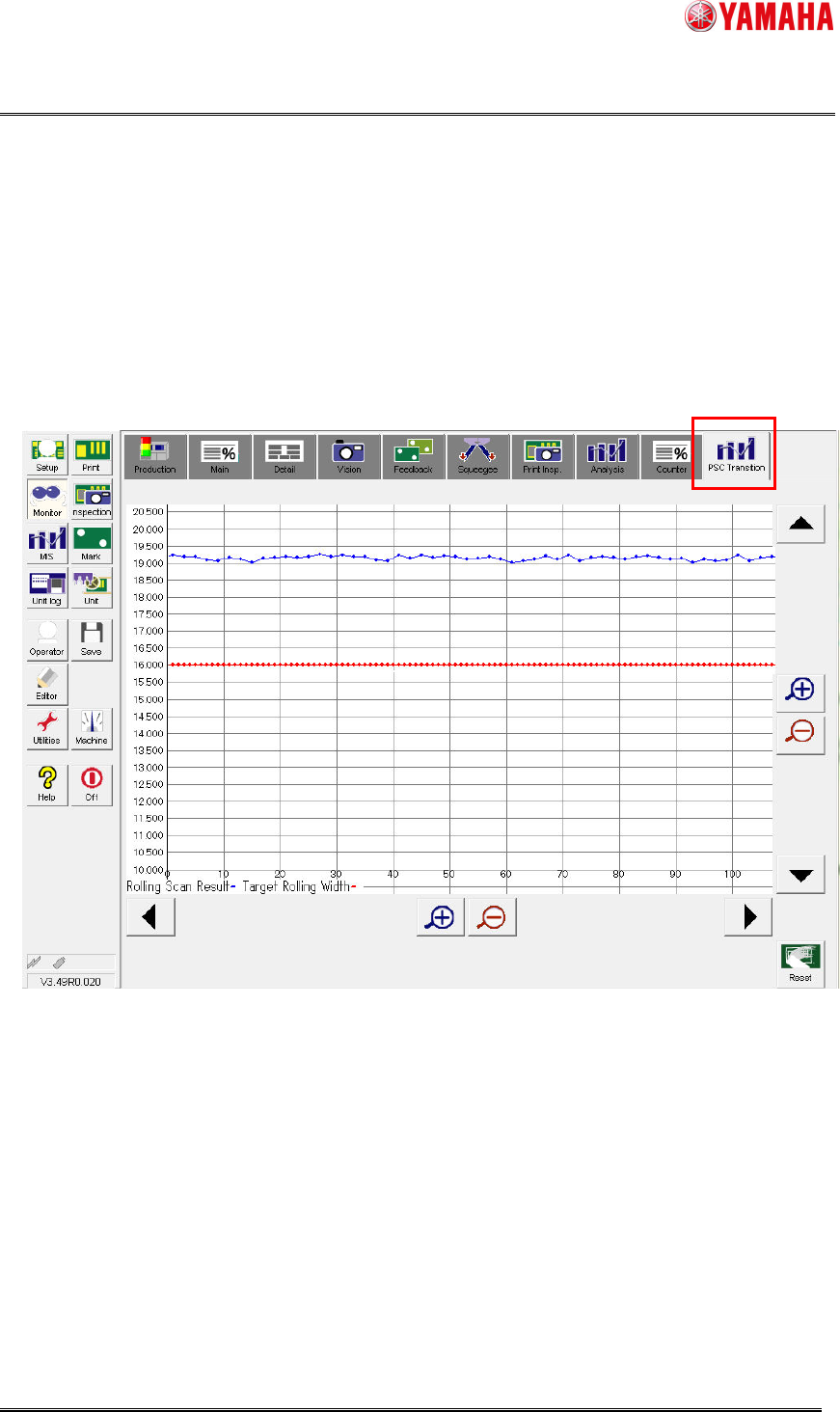

3.4.1 PSC
The [PSC Transition] tab is displayed.
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50716
8/10

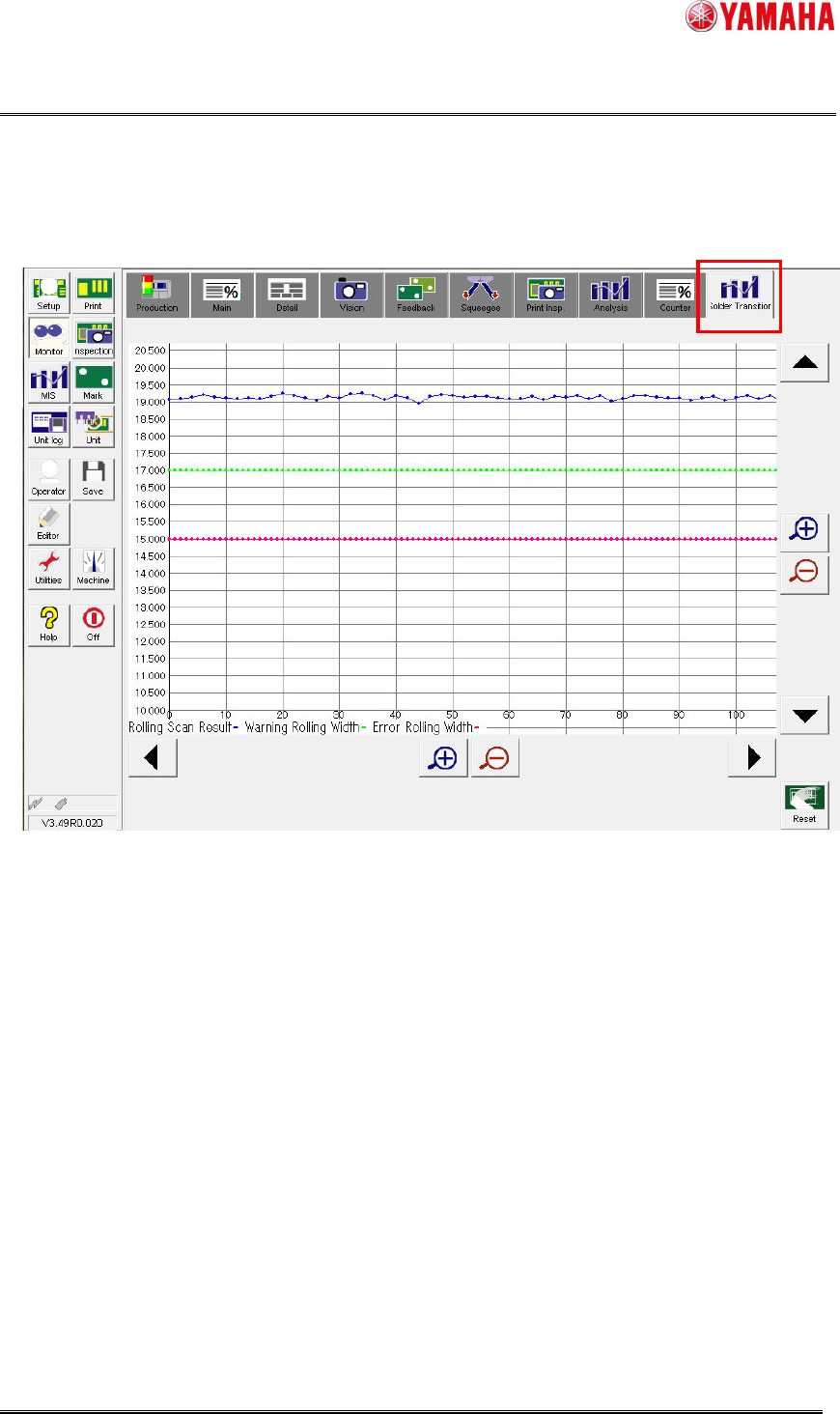

3.4.2 Solder Remaining Quantity Detection
The [Solder Transition] tab is displayed.
Product Engineering Division
SMT Section
Robotics Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50716
9/10
4 Setting
4.1 Machine Setting
To enable this function, set as follows according to the function you want to use.
Machinesetting Boarddata
Function
PSC SolderRemaining
Quantity
Detection
PSC SolderAuto
Supply
NotUse － － － NotUse
Use NotUse NotUse － NotUse
Use NotUse SolderRemaining
Quantity
Detection
Use PSC
Use － － SolderRemaining
Quantity
Detection
