Replacement Re ad s afe t y g uid el in es to d o th e equipment maintenance securely. - The unit notifies through both the display and the LED when filters need maintenance. - T o replace the pre-filter , first turn the fum…
Features
M5 Pre filter
Ref. FA E 2-110
H13 Filter
+ Pre filter
Ref. FAE2-100
Fume Extractor
Ref. FAE2-5A
www.jbctools.com
3
Replacement
Read safety guidelines to do the
equipment maintenance securely.
- The unit notifies through both the display and
the LED when filters need maintenance.

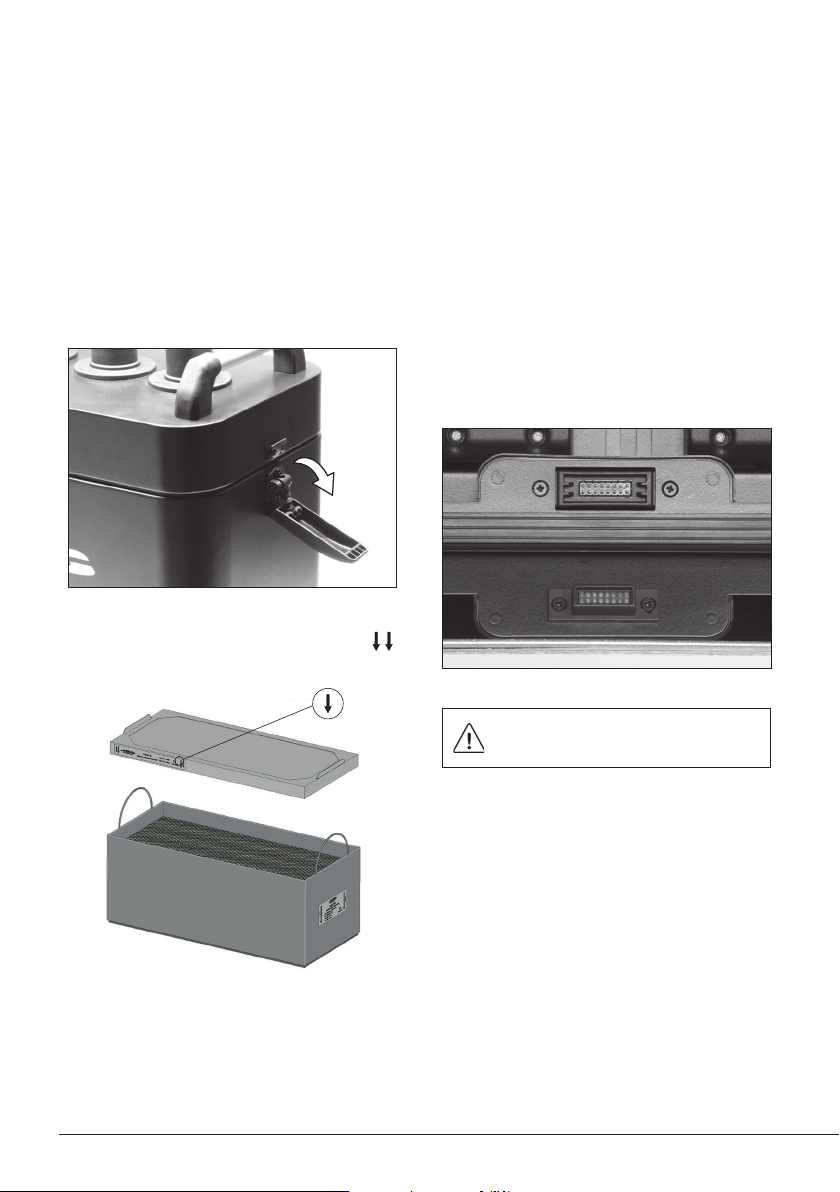

- To replace the pre-filter, first turn the fume
extractor off. Then remove the cover by
opening the side closures of the casing.
- Insert the pre-filter according to the arrows
in the upper part.
- If once the pre-filter has been changed the
saturation indicator is on, it means that the
main filter is already saturated and must
be replaced too.
- If the display shows an error message when
the equipment is switched on, it is probable
that the cover and casing connectors are
dirty and making false contact between them.
Remove the cover and clean both connectors.
4

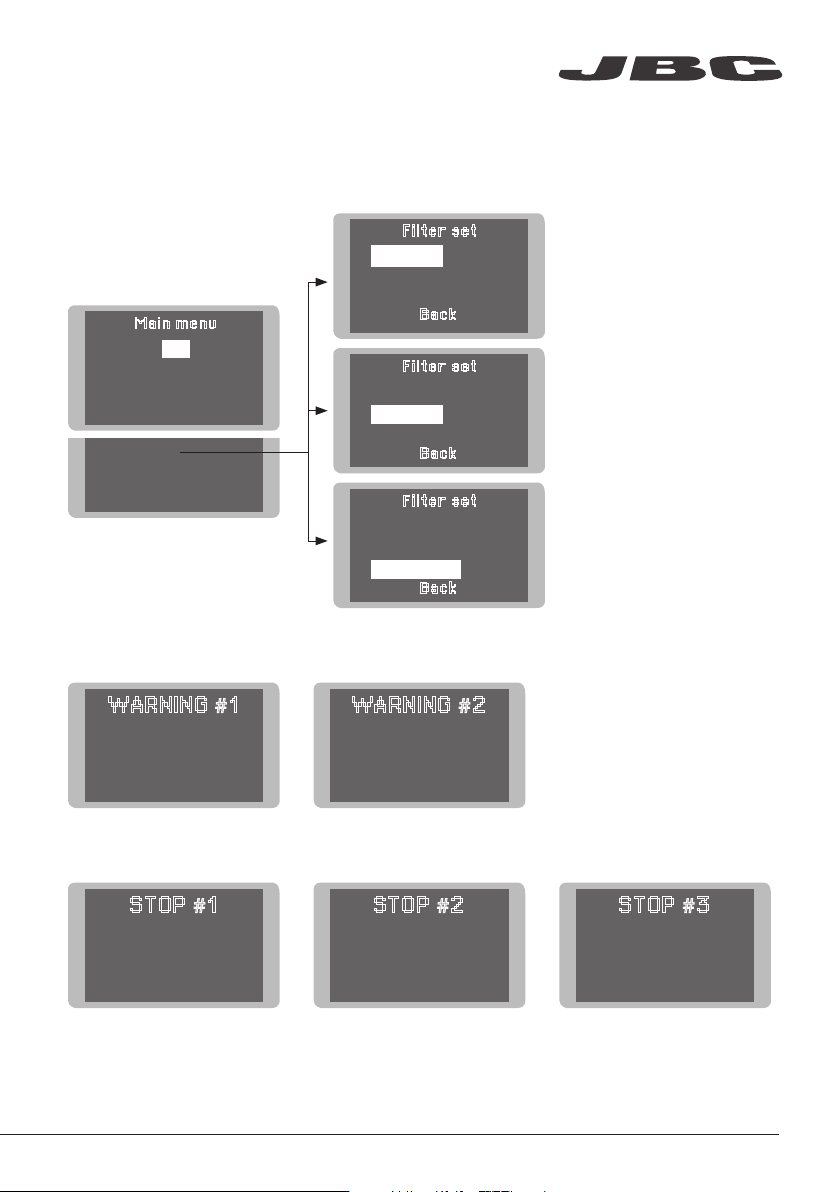

Main menu
Exit
1 Reset
2
Unit
3
Port
4 Filter set
5 Counters
6 Program version
Filter set
1 Carbon life 80%
2 Saturation 20%
3 Reset carbon
Back
STOP # 1
Useful filter life is worn out.
Replace it and execute reset
function in the filter menu.
STOP # 3
Filter not detected. Place
a filter in order to use the
fume extractor.
STOP # 2
Filter obstructed. Replace
the pre-filter, if the error
remains, replace the
HEPA+carbon filter set.
WARNING # 1
Useful filter life is about to
wear out. In X days the filter
life is going to finish.
WARNING # 2
Filter is about to obstruct.
Filter set
1 Carbon life 80%
2 Saturation 20%
3 Reset carbon
Back
Filter set
1 Carbon life 80%
2 Saturation 20%
3 Reset carbon
Back
Control Process
Filter Menu
Warning & Errors
Shows % of remaining life of the
carbon filter contained inside the
main filter. It is also displayed on
the main screen.
Perform this action when changing
the HEPA + carbon set filter. The
carbon life counter doesn’t start
until the filter is detected for the
first time.
The unit notifies when filters need maintenance.
The unit stops working when filters have to be replaced.
Shows % of saturation level of
HEPA + carbon filter set. It is also
displayed on the main screen.
