SP-0083-001.pdf - 第11页

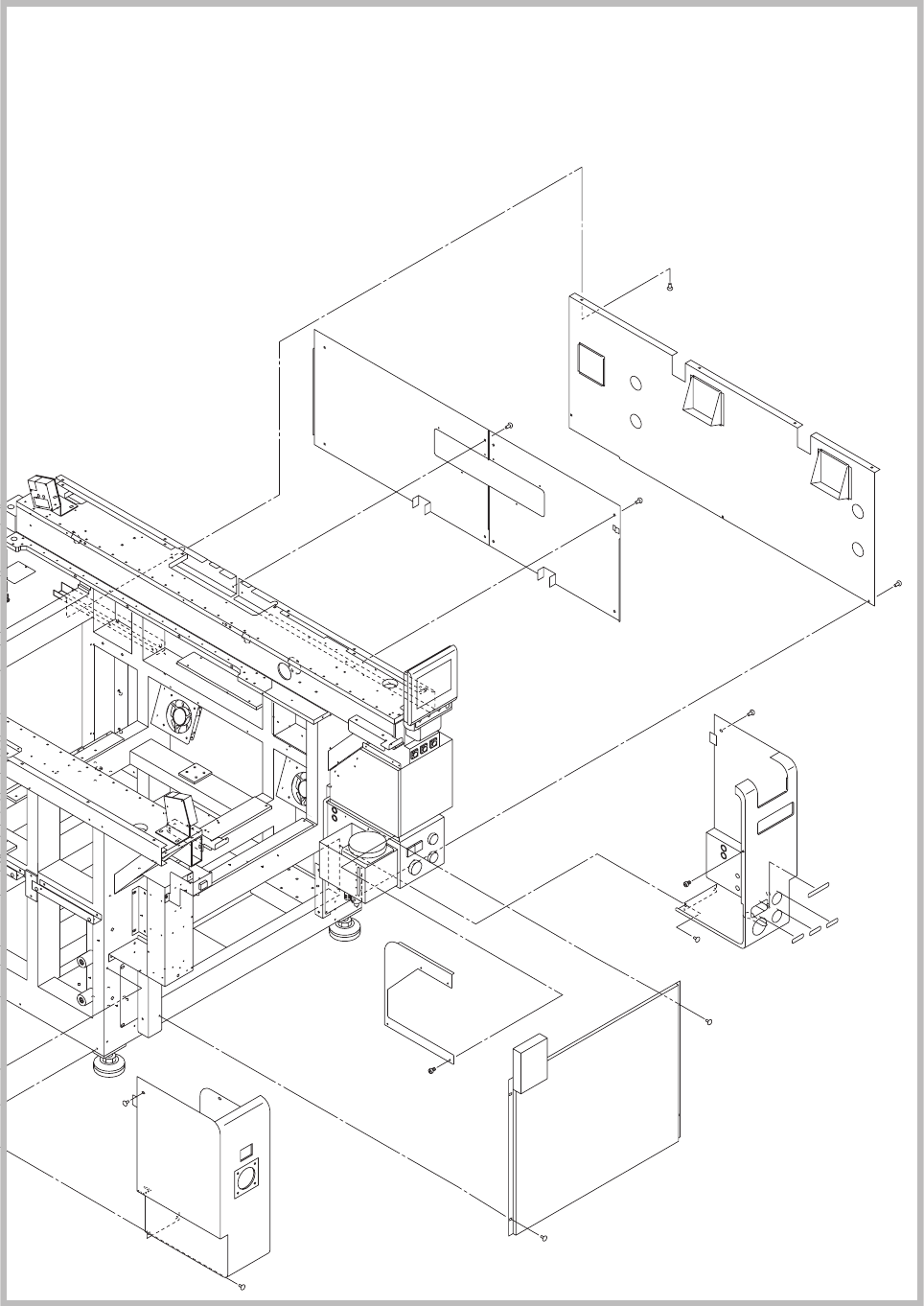

1002-001 Fig. I1 F i g . I 1 - 1
Fig. I1-1
下カバー
Lower Cover
See Fig.I1-3
Key No.274
43
42
43
41
(BASE:Document No. P-311-00X
UNIT-8 Fig.I1-1)
1002-001
Fig. I1
温調ユニット
(PS-MT100)
TEMPERATURE INDICATING CONTROLLER(PS-MT100)
1002-001
Fig. I1
Fig. I1-1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
41 227A0206 UNIT 1 10900092A0-001
42 225G0247 TUBE 1 10900092A0-002
43 225F0283 PIPE_FITTINGS 2 10900092A0-003
PS-MT100
Fig. I1-1
1002-001
Fig. I1
