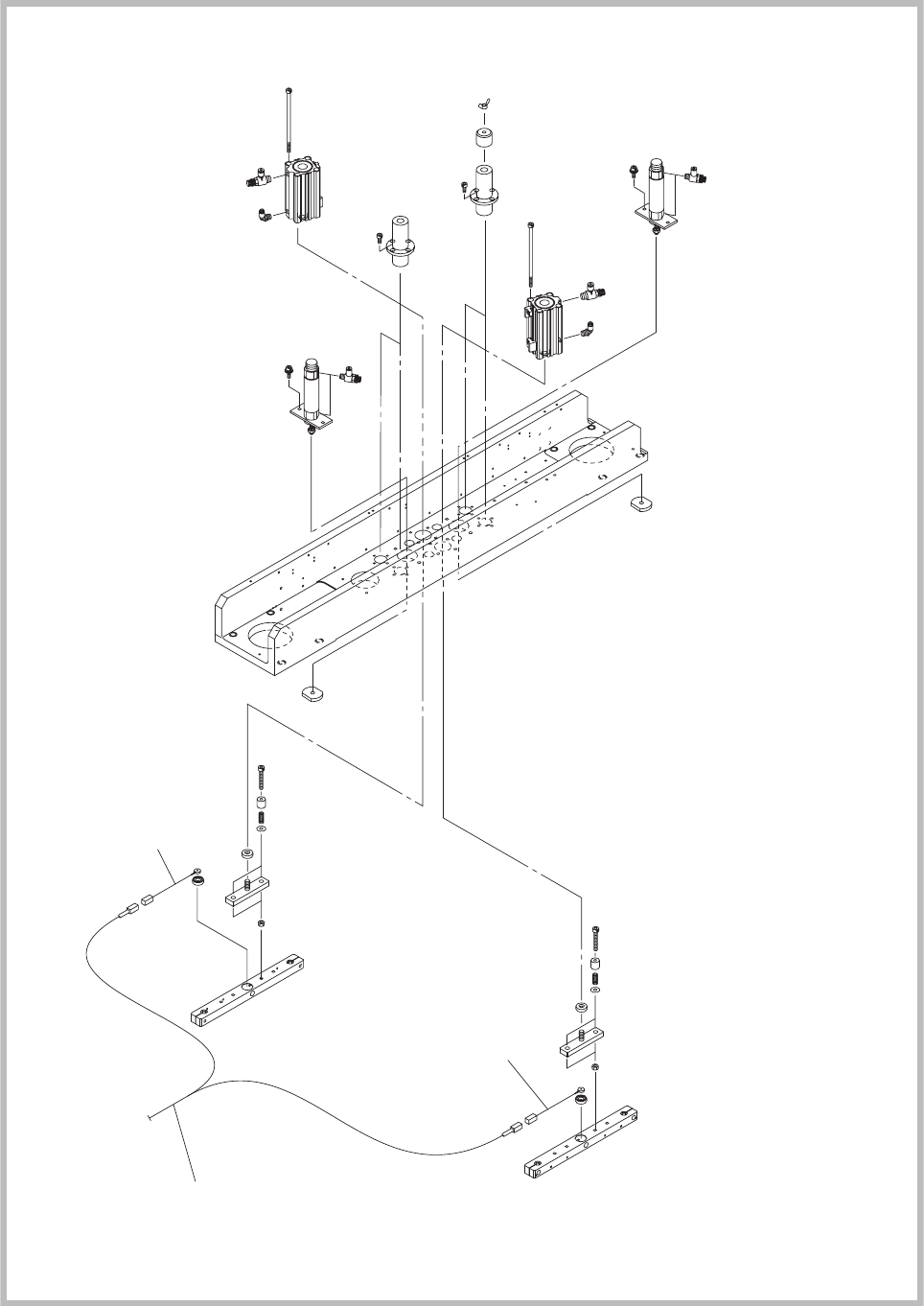

Fig. C2-2 スキージ駆動部 Squeegee Driving Section (BASE : Document No. P-31 1-00X UNIT -2 Fig.C2-2) See Fig.C2-1 Key No.B4 See Fig.C2-1 Key No.B1 See Fig.C2-1 Key No.B4 B02 B01 1002-001 Fig. C2 印圧フィードバック機能 (PS-TP100) PRINTING P…

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

1002-001

B1 4W205017 CORD 1 10900031AG-001

B2 4W205018 CORD 1 10900031AG-002

B3 4W205161 CODE 1 10900031AG-003

B4 0900N1AH LOAD-SELL 1 10900031AG-004

PS-TP100

Fig. C2

Fig. C2-1

Fig. C2-2

スキージ駆動部

Squeegee Driving Section

(BASE:Document No. P-311-00X

UNIT-2 Fig.C2-2)

See Fig.C2-1

Key No.B4

See Fig.C2-1

Key No.B1

See Fig.C2-1

Key No.B4

B02

B01

1002-001

Fig. C2

印圧フィードバック機能

(PS-TP100)

PRINTING PRESSURE FEEDBACK FUNCTION(PS-TP100)
