Flexline_CAD_Instruction_Manual_Rev05_C.pdf - 第92页
A-3 2 启动新建输入格式画面 * 1 *
A-2
!TAG ID +XXXXXX+YYYYYY+AAA+S CCCCCCCCCCCCCCCC
PLC_0001+005000+000640+000 T Q1
PLC_0002+004350+001230+090 T Q2
PLC_0003+032560+023440+000 T U1
PLC_0004+007670+086540+270 B C1
PLC_0005+003450+075630+090 T C2
PLC_0006+035030+034350+000 T C3
PLC_0007+007600+054750+180 B U2
PLC_0008+023550+034600+090 T C4
PLC_0009+034670+003340+000 T C5
PLC_0010+098970+003450+090 B U3
PLC_0011+066560+045460+270 T U4
PLC_0012+045650+067430+090 B D1
PLC_0013+003660+023450+000 T D2
PLC_0014+004523+046560+090 B Q3
PLC_0015+026640+034660+000 T XTAL1
PLC_0016+012340+032370+090 B R1
PLC_0017+004560+037370+070 T R2
PLC_0018+001230+022440+045 T R3
PLC_0019+012340+059860+090 T R4
PLC_0020+004560+066660+070 B R5
PLC_0021+001230+034550+045 T R6
PLC_0022+012340+023450+090 B R7
PLC_0023+004560+023560+070 T R8
PLC_0024+001230+087450+045 T R9
Component Name and Comment
Q1,"2N2886"
Q2,"BC147"
U1,"74HCT241"
C1,"CAP 22PF, 5%, 50V"
C2,"CAP 0.1MF, 10%, 50V"
C3,"220 MF"
C4,"ECU-V1H103KBW .01 uF"
C5,"CAP 2.2MF, 10%, 50V"
D1,"1N4148 signal diode"
D2,"1N4001X200V "
U2,"LM781CTB TO-220X VAL"
U3,"LTC1421CG"
U4,"MOC3020N"
Q3,"FETP_220 IRF9523"
XTAL1,"XFMR2WCT"
R1,"RES400 1.2K"
R2,"RES 2K 1% 1/10W"
R3,"RES 332 OHM 1% 1/10W"
R4,"RES400 1.2K"
R5,"RES 2K 1% 1/10W"
R6,"RES 332 OHM 1% 1/10W"
R7,"RES400 1.2K"
R8,"RES 2K 1% 1/10W"
R9,"RES 332 OHM 1% 1/10W"
Date 3/8/98
A-3

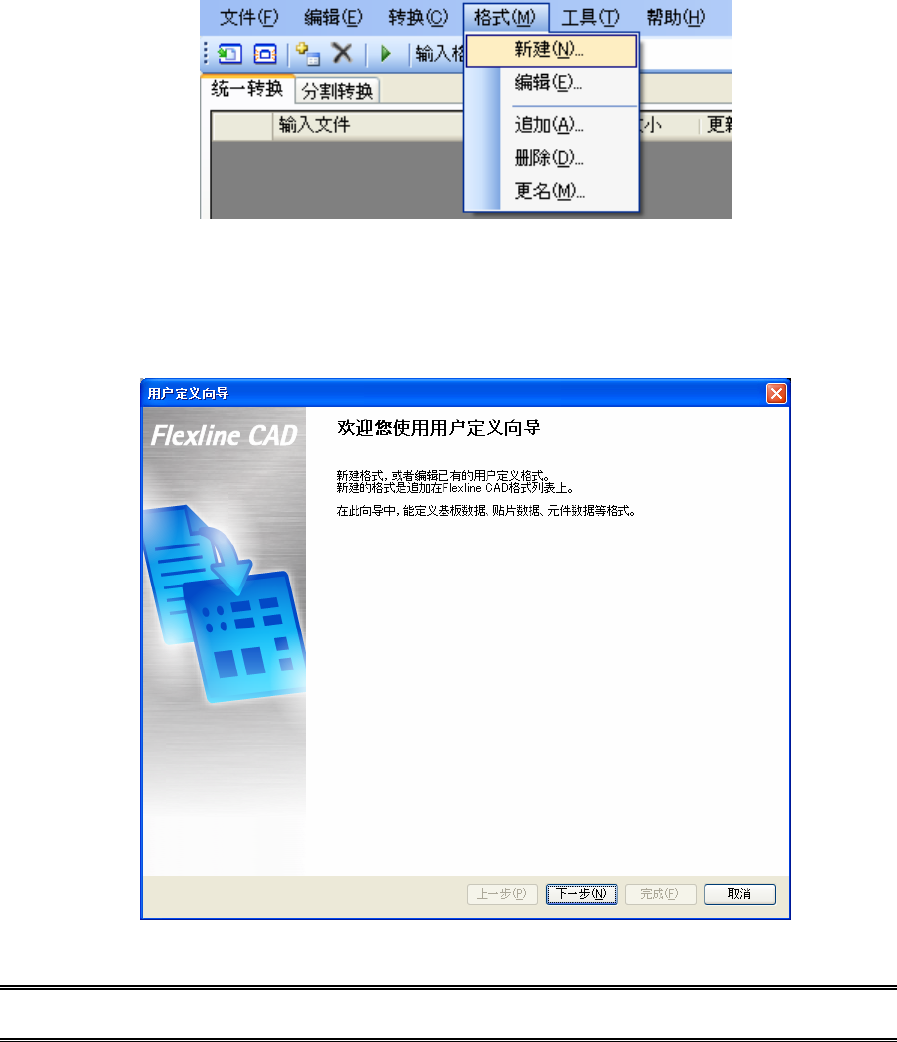

2 启动新建输入格式画面*1
*
A-4

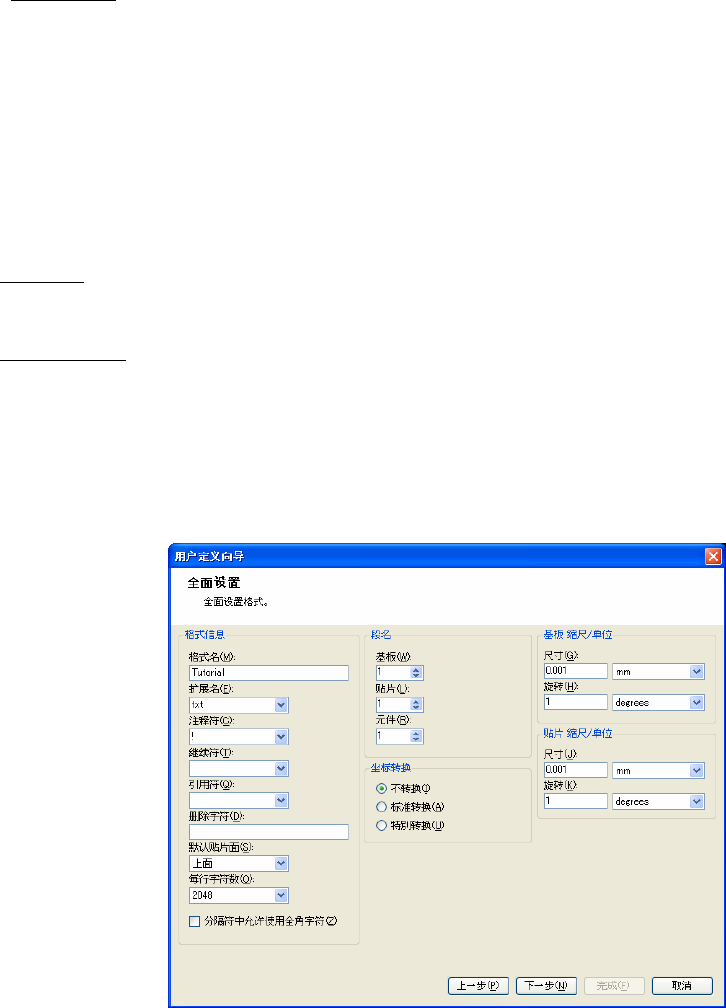

3 全面设置画面
z
z
z
z
4 转换画面
