MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 245 RC-3 25 1 630 092 2844 TE RM I N AL 9 812RC-010-251 25 2 630 092 2851 AC C ESSOR Y ,WIRING 1 812RC-010-252 25 3 630 092 2868 AC C ESSOR Y ,WIR…
MODEL TCM-X300
0306-001
244
200V 㔚Ḯㇱ㧝 200V POWER SUPPLY SECTION 1

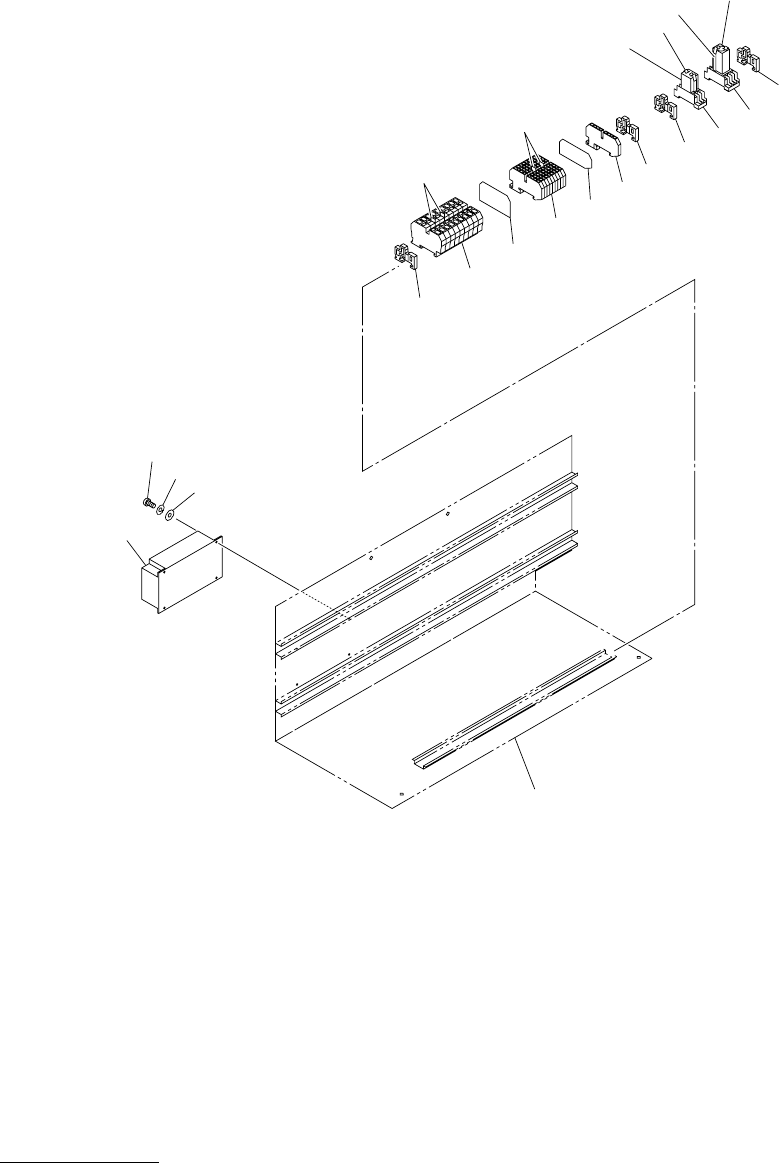

Fig. RC-3 200V 㔚Ḯ㧟 200V Power Supply 3
259
297
298
299
254
See Fig.RC-1
Key No.61
251
.
252
257
261
254
253
.
260
256
.
258
.
255
262
254
265
263
266
267
264
254
259
265
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
245
RC-3
251 630 092 2844 TERMINAL 9 812RC-010-251
252 630 092 2851 ACCESSORY,WIRING 1 812RC-010-252
253 630 092 2868 ACCESSORY,WIRING 3 812RC-010-253
254 630 091 1749 BRACKET,WIRING 4 812RC-010-254
255 630 058 8460 ACCESSORY,WIRING 1 812RC-010-255
256 630 083 5465 TERMINAL 12 812RC-010-256
257 630 083 5533 ACCESSORY,WIRING 1 812RC-010-257
258 630 072 8408 ACCESSORY,WIRING 1 812RC-010-258
259 630 083 5564 ACCESSORY,WIRING 2 812RC-010-259
260 630 051 1512 ACCESSORY,WIRING 1 812RC-010-260
261 630 093 3291 TERMINAL 1 812RC-010-261
262 630 116 8821 FILTER,NOISE 1 ZNF2 812RC-010-262
263 630 049 2125 RELAY 1 K63 812RC-010-263
264 630 007 3911 TIMER 1 KT6 812RC-010-264
265 630 000 4144 SOCKET 2 812RC-010-265
266 630 000 1020 BRACKET,WIRING 1 812RC-010-266
267 630 000 1037 BRACKET,WIRING 1 812RC-010-267
297 411 113 1400 SCR PAN 4X6 4 812RC-010-297
298 411 008 1706 WASHER SPR 4 4 812RC-010-298
299 411 119 2104 WASHER V 4X9X0.8 4 812RC-010-299
MODEL TCM-X300
0306-001
246
200V 㔚Ḯㇱ㧝 200V POWER SUPPLY SECTION 1

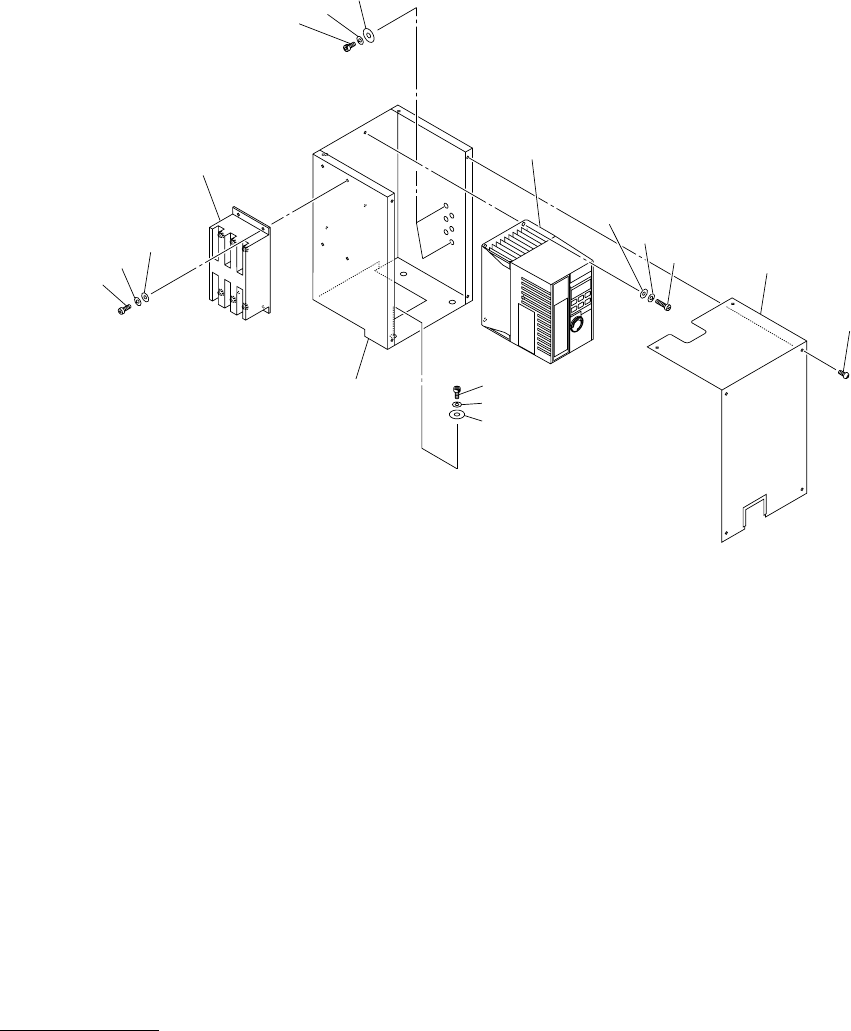

Fig. RC-4 200V 㔚Ḯ㧠 200V Power Supply 4
394
396
352
395
399
398
397
351
393
392
391
394
395
396
353
354
390
