E-by SIPLACE Smart Feeder

16 mm E

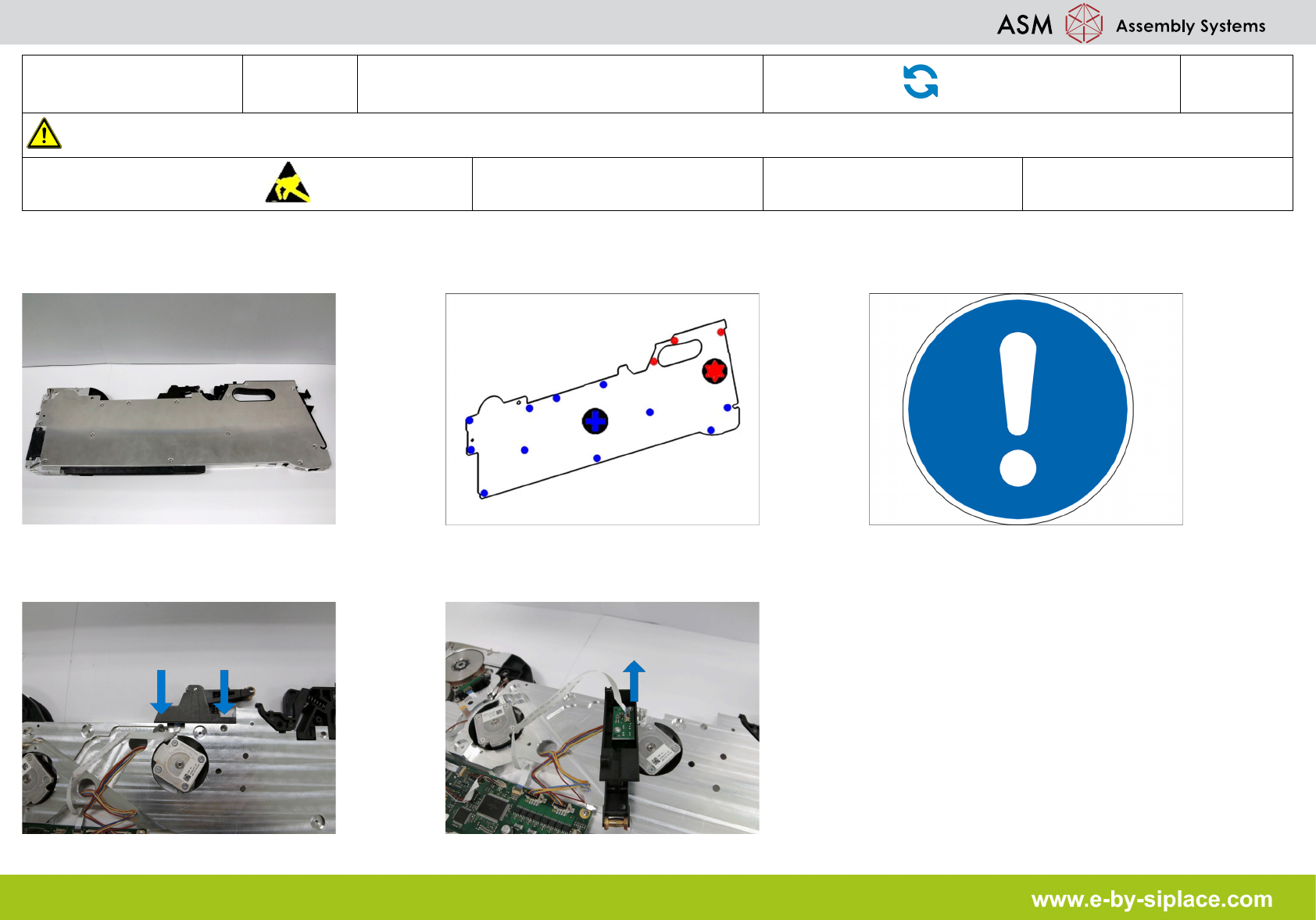

Removing the Foil Rocker Assembly

Part Exchange

1/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T2

Wear Part: Consumables:

1. Place the feeder module with the right side

down on a surface.

2. Loosen the screws, Blue Circles with T1

and Red Circles with T2.

3. Notice: Separate the screws.

4. Loosen the two screws with T2 and pull the

rocker foil up.

5. Pull out the cable.

E-by SIPLACE Smart Feeder

16 mm E

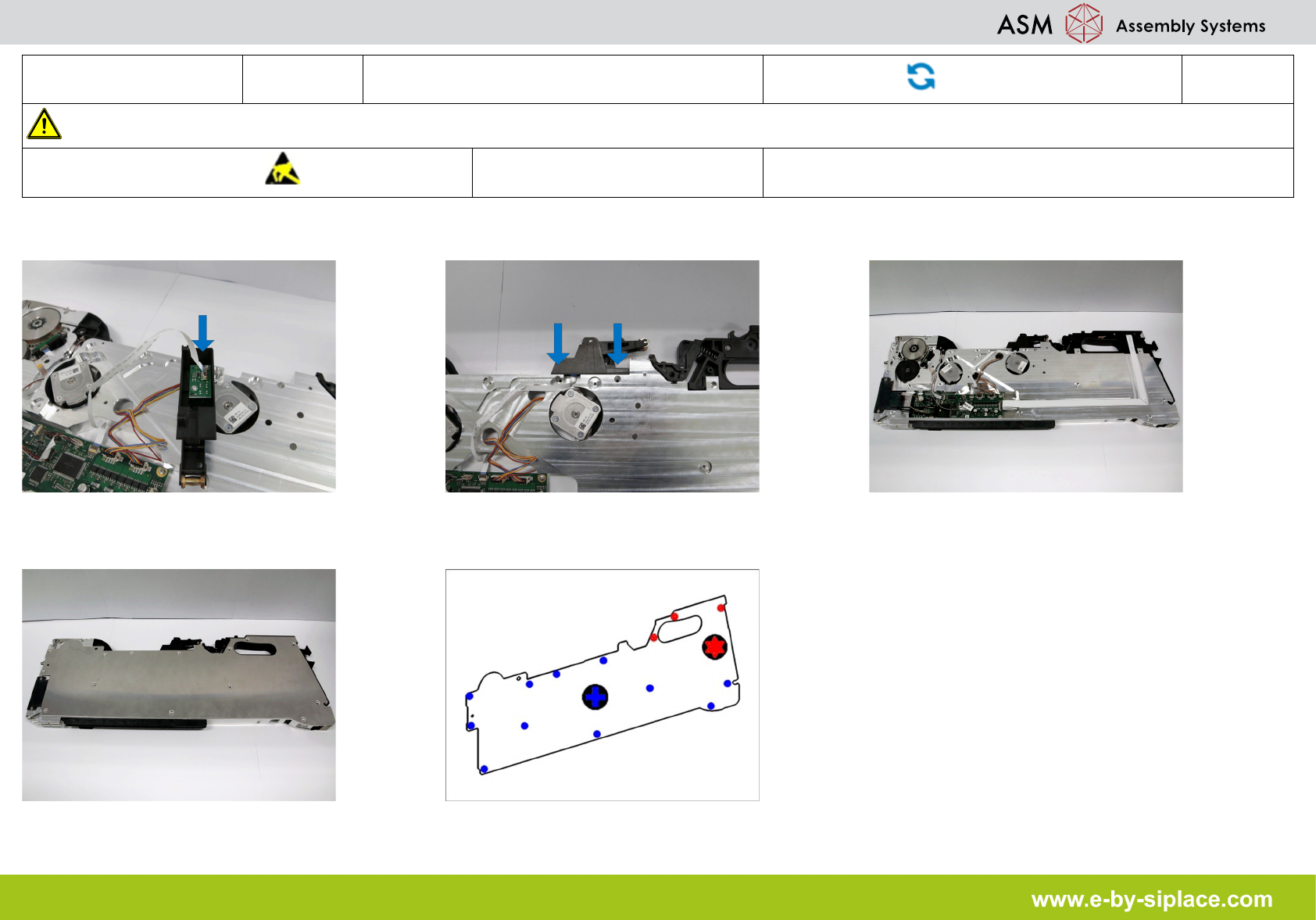

Fitting the Foil Rocker Assembly

Part Exchange

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T2

Part No.: 03084876-SXX

1. Fit in the cable tightly. 2. Tighten the screw with T2. 3. Place feeder with the right side down.

4. Place the side cover onto the feeder. 5. Tighten the screws, Blue Circles with T1

and Red Circles with T2.
