InJet ® 888 CRD – 1F TECHNICAL DATA SHEET 3 www.dct.cleaning R C D C CLEANING RINSING DRYING R D Application name Recommended application Recommended temperature Total cleaning process time Capacity per 8 hours Re ow an…

100%1 / 8
InJet
®
888 CRD – 1F
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The InJet
®
888 CRD - 1F, including a 100% closed
loop, with cleaning, rinsing, and drying technology
processes.
All of the processes are fully automated, and take place
in one process chamber.
The InJet
®
888 CRD-1F is developed primarily for the
removal of smelting residues from soldering frames, and the
maintenance cleaning of soldering equipment components.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
InJet
®
888 CRD – 1F
TECHNICAL DATA SHEET
3
www.dct.cleaning
R
C
D
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Re ow and soldering parts
30 – 50°C 86 – 122 °F 40 min. 240 **
PCB
35 – 55°C 95 – 131 °F 55 min. 1100 *
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 20 min. 24
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
888 CRD – 1F
TECHNICAL DATA SHEET
4
www.dct.cleaning

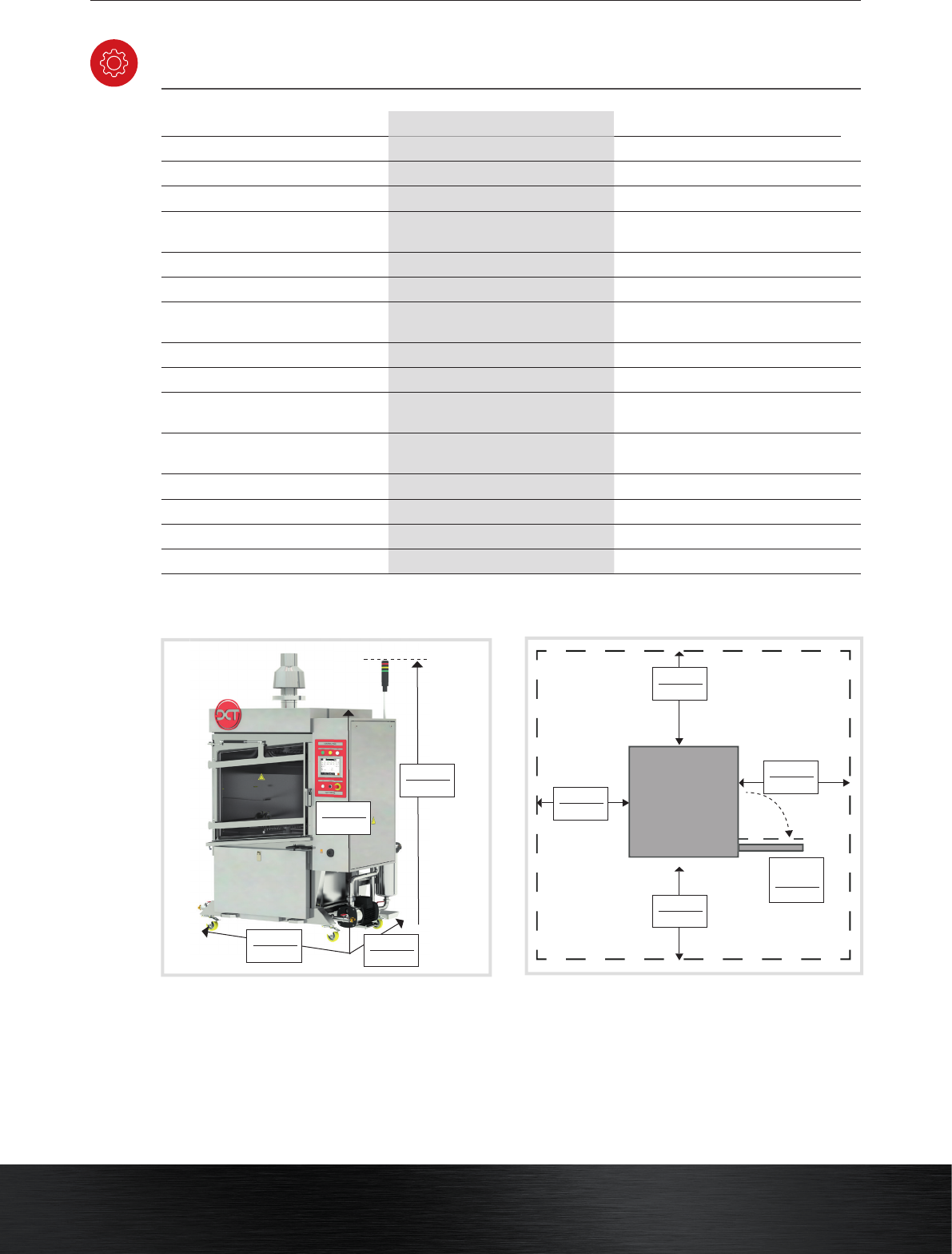

TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
1200 mm
47.2 in
open door
1000 mm
39.4 in
metric units imperial units
Dimensions (w x l x h) ZKOUSK 1620 x 1400 x 2350* mm 63.8 x 55,1 x 92,5* in
Weight 660 kg 1455 lbs
Ø energy consumption per cycle 3,3 kWh 3.3 kWh
Cleaning and rinsing  uid consumption
per cycle
0,2 – 0,5 l 0.05 – 0.13 gal
Compressed air consumption per cycle 1500 l / cycle 396.26 gal / cycle
Max. dimensions of the cleaned parts 850 x 800 x 600 mm 33.46 x 31 x 22.7 in
Exchangeable mechanical  lter
of cleaning and rinsing  uid
5 – 200 μm 5 – 200 μm
Operating pressures frequency converter 2,4 Bar 34.8 PSI
Cleaning  uid  ow rate 210 l / min 55.5 gal / min
Temperature range setting
of the cleaning and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 85 l 22,4 gal
* Maximum dimension in operation condition
2350 mm
92.5 in
1960 mm
77.7 in
1400 mm
55.1 in
1620 mm
63.8 in
