InJet ® 888 CRD – 1F TECHNICAL DATA SHEET 4 www.dct.cleaning TECHNICAL PARAMETERS DIMENSIONS MINIMUM SERVICE SPACE AROUND THE MACHINE 600 mm 23.6 in 600 mm 23.6 in 600 mm 23.6 in 1200 mm 47.2 in open door 1000 mm 39.4 in…
InJet
®
888 CRD – 1F
TECHNICAL DATA SHEET
3
www.dct.cleaning
R
C
D
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Re ow and soldering parts
30 – 50°C 86 – 122 °F 40 min. 240 **
PCB
35 – 55°C 95 – 131 °F 55 min. 1100 *
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 20 min. 24
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
888 CRD – 1F
TECHNICAL DATA SHEET
4
www.dct.cleaning
TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
1200 mm
47.2 in
open door
1000 mm
39.4 in
metric units imperial units
Dimensions (w x l x h) ZKOUSK 1620 x 1400 x 2350* mm 63.8 x 55,1 x 92,5* in
Weight 660 kg 1455 lbs
Ø energy consumption per cycle 3,3 kWh 3.3 kWh
Cleaning and rinsing uid consumption
per cycle
0,2 – 0,5 l 0.05 – 0.13 gal
Compressed air consumption per cycle 1500 l / cycle 396.26 gal / cycle
Max. dimensions of the cleaned parts 850 x 800 x 600 mm 33.46 x 31 x 22.7 in
Exchangeable mechanical lter
of cleaning and rinsing uid
5 – 200 μm 5 – 200 μm
Operating pressures frequency converter 2,4 Bar 34.8 PSI
Cleaning uid ow rate 210 l / min 55.5 gal / min
Temperature range setting
of the cleaning and rinsing uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 85 l 22,4 gal
* Maximum dimension in operation condition
2350 mm
92.5 in
1960 mm
77.7 in
1400 mm
55.1 in
1620 mm
63.8 in
InJet
®
888 CRD – 1F
TECHNICAL DATA SHEET
5
www.dct.cleaning

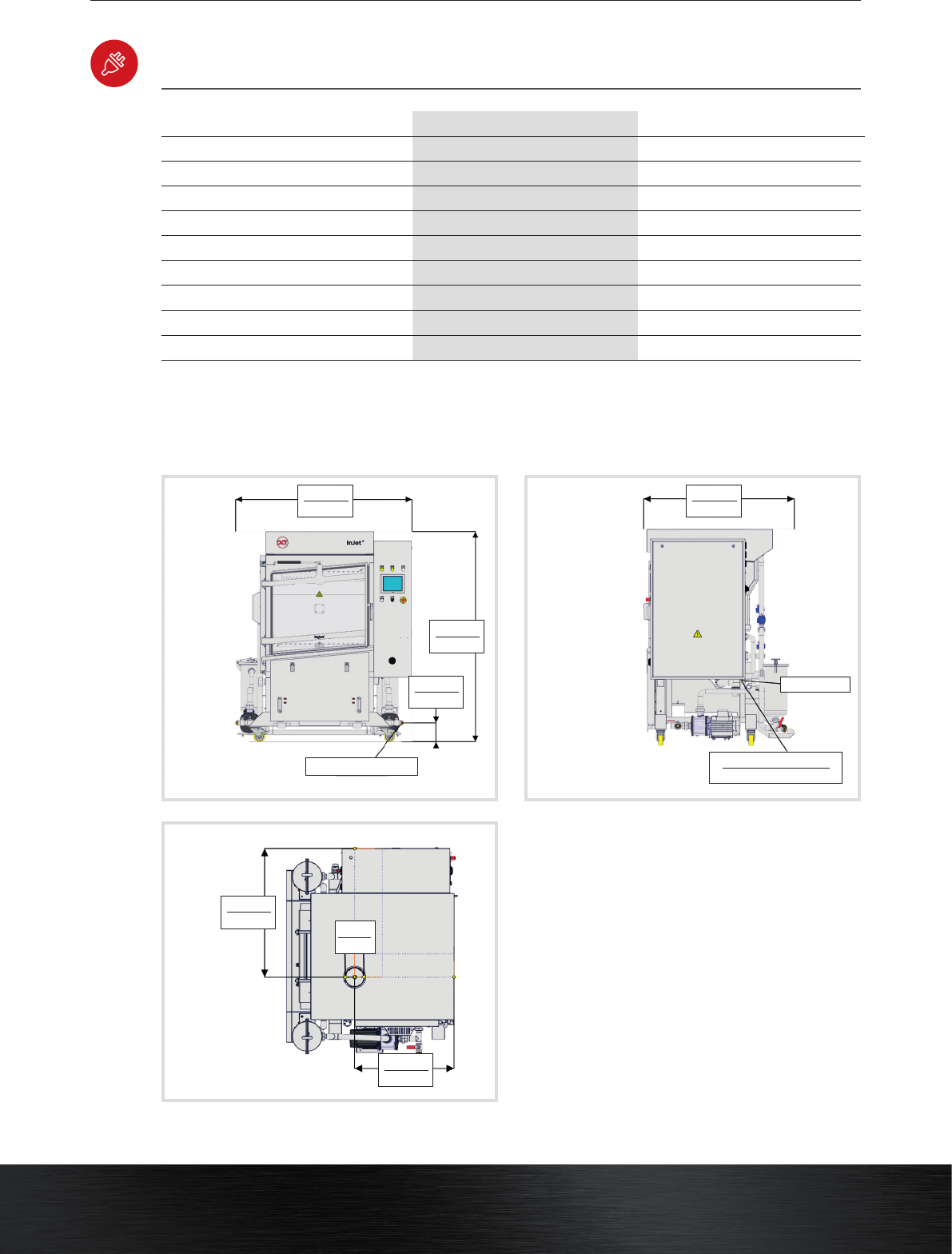

INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
RIGHT
VIEW
1620 mm
63.8 in
1350 mm
53.1 in
1960 mm
77.7 in
170 mm
6.69 in
discharge of the fluids
input el. power
input air pressure Ø 6 mm
input air pressure ID 0.24 in
1005 mm
39.6 in
780 mm
30.7 in
Ø 150 mm
ID 5.91 in
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 13 kW 13 kW
Compressed air connection Pipe Ø 6 mm Pipe ID 0.24 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter Ø 150 mm ID 5.91 in
Exhaust pipe capacity 380 m
3
/h 13400 ft
3
/h
Minimum liquid for rst run 2 x 75 l 2 x 19,8 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1
metric units imperial units
