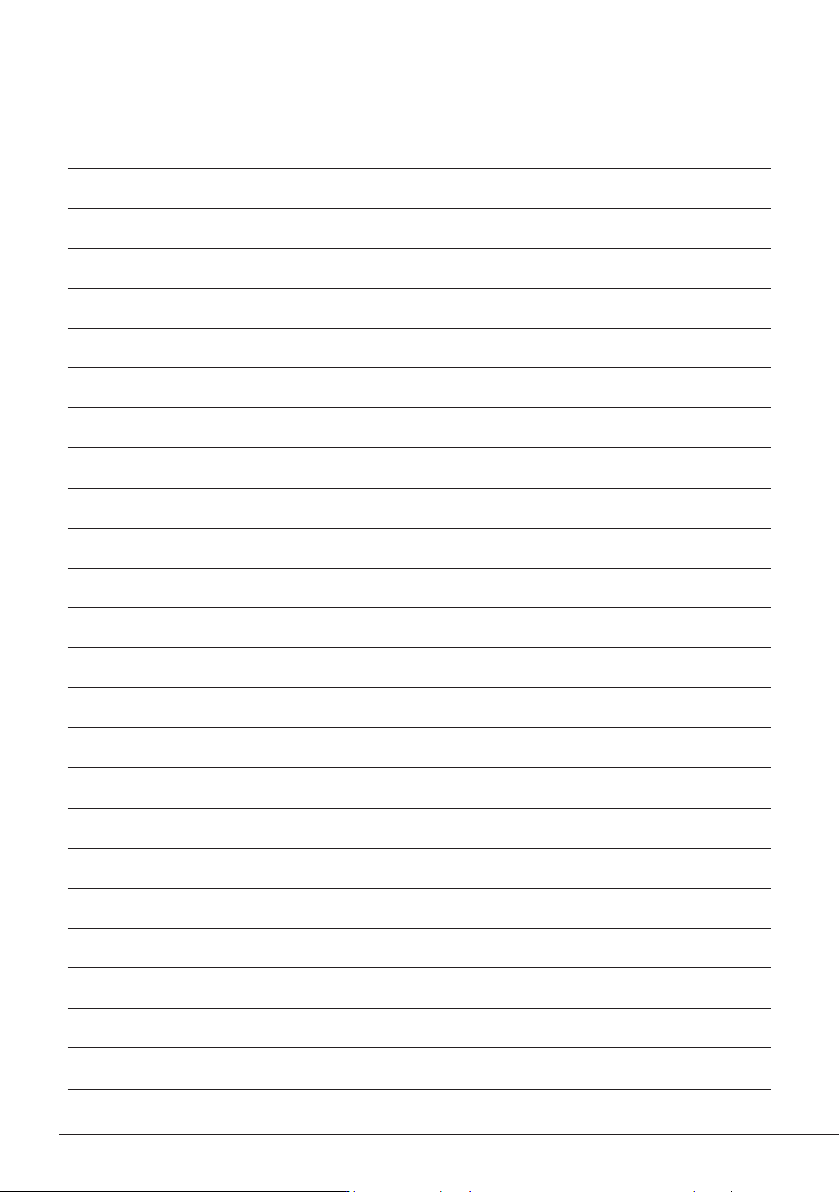

Notes
14
15
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Specifications
PHSE
Preheater for PCBs up to 13x13cm/5x5”
Ref.: PHSE-9B 100V. Input 100V 50/60Hz Fuse T10A
Ref.: PHSE-1B 120V. Input 120V 50/60Hz Fuse T10A
Ref.: PHSE-2B 230V. Input 230V 50/60Hz Fuse T5A
- Maximum Power: 800W
- Heating Area: 65 x 135 mm / 2.56 x 5.31 in - 1 zone
130 x 135 mm / 5.12 x 5.31 in - 2 zones
- Ambient Operating Temperature: 10 - 40 ºC / 50 - 104 ºF
- Temperature Range: 50 - 250 °C / 120 - 482 ºF
- Temperature Measurement: Thermocouple type K
Accuracy: ± 5°C / ± 10°F
- JBC Set Temperature Profiles: 3 profiles (2, 3 or 4 steps)
- User Profiles: 20 (up to 6 steps for each)
- Maximum Work Time: 600 min or indefinite
- Preheater Dimensions: 195 x 288 x 42 mm / 7.68 x 11.34 x 1.65 in
(L x W x H)
- Total Net Weight: 2.77 kg / 6.11 lb
- Total Package Dimensions / Weight: 368 x 368 x 125 mm / 3.51 kg
(L x W x H) 14.45 x 14.45 x 4.92 in / 7.72 lb
Complies with CE standards
ESD safe
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
