2 Assembly Instructions PCI Card for SIPLACE X4I Auto Recovery Function PCI card 12/2007 Edition 14 2.5 Safety instructions W ARNING The safety instructions from the "Operational sa fety" chapter of the user ma…
PCI card 2 Assembly Instructions PCI Card for SIPLACE X4I Auto Recovery Function
12/2007 Edition
13
2 Assembly Instructions
PCI Card for SIPLACE X4I Auto
Recovery Function
2.1 Working principle
The card stores all placement positions with the corresponding status ("placed" / "not placed") in
its non-volatile memory.
After a power failure, this information will be used to complete the placement of the PCB
. 2
The WinAC NV128 PCI module is used to store retentive data for the WINAC RTX SP2 in the
event of
a power failure on the BoxPC 627. 2
2.2 Requirements
– SIPLACE X4I
– SW 701 + BoxPC
– To be able to use the data back-up in the event of a power failure, the basic module in the
BoxPC
627 mu
st be product release 4 or later (see rating plate on the device (GRBG)).
This should be the case for all SIPLACE machines with
BoxPC.
2.3 Deliverables
PCI card "Recovery Placement Memory Card X4I", item no.: 03058643-01 2
2.4 Tools required
– Set of hexagon socket spanners
–Torx T6
–Torx T10
–Torx T25
2 Assembly Instructions PCI Card for SIPLACE X4I Auto Recovery Function PCI card
12/2007 Edition
14
2.5 Safety instructions
WARNING
The safety instructions from the "Operational safety" chapter
of the user manual and servicing in-
structions take precedence over these instru
ctions. 2
The SIPLACE placement machines are supplied with main power voltage.
Consequently parts of these systems carry dangerous voltages! This v
oltage is present at certain
modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or sever
e injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly,
then switch the machine
OFF at the main power switch and disconnect from the mains power supply. In addition, the com-
pressed air supply must be switched off at the compressed
air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicini
ty of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or oth
er standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Op
erational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
D
uring the retrofit, always secure the machine to p
revent access by other people and to prevent
it being switched on again. The procedure is described in the “Locking the machine…” section of
the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2.5.1 Definitions
2
Please note 2
2
2
2
Caution 2
PCI card 2 Assembly Instructions PCI Card for SIPLACE X4I Auto Recovery Function
12/2007 Edition
15
2.6 Installing the AutoRecovery card
: Shut down the placement machine and switch it off at the main switch.
2
: Open the safety door to the computer unit and remove it.
: Loosen the fixing screw on the left of the computer unit.
: Pull the unit
o
ut slowly and put it down on the floor carefully.
2
The computer unit is very heavy. 2
Watch out for the wiring harness! 2

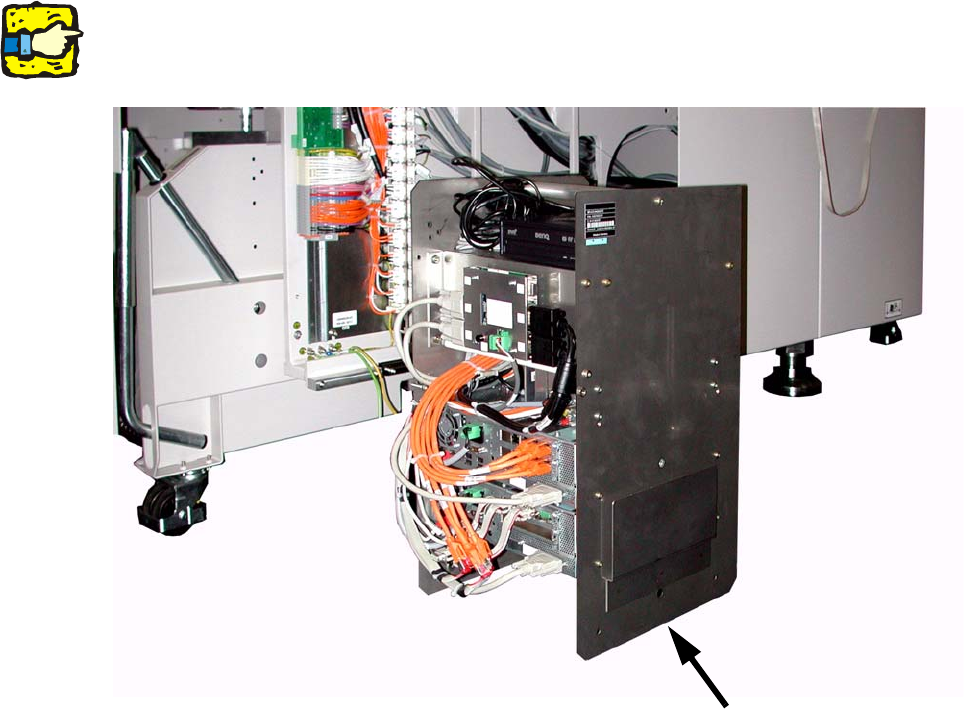

Computer unit
2
2
2
2
2
2
