YXLON Y .MTIS INLINE X-RA Y INSPECTION SYSTEM FOR RADIAL TIRES - Robust system for reliable 24/7 operation - More than 350 systems in use worldwide - Delivery of all relevant data for production process optimization - Fa…

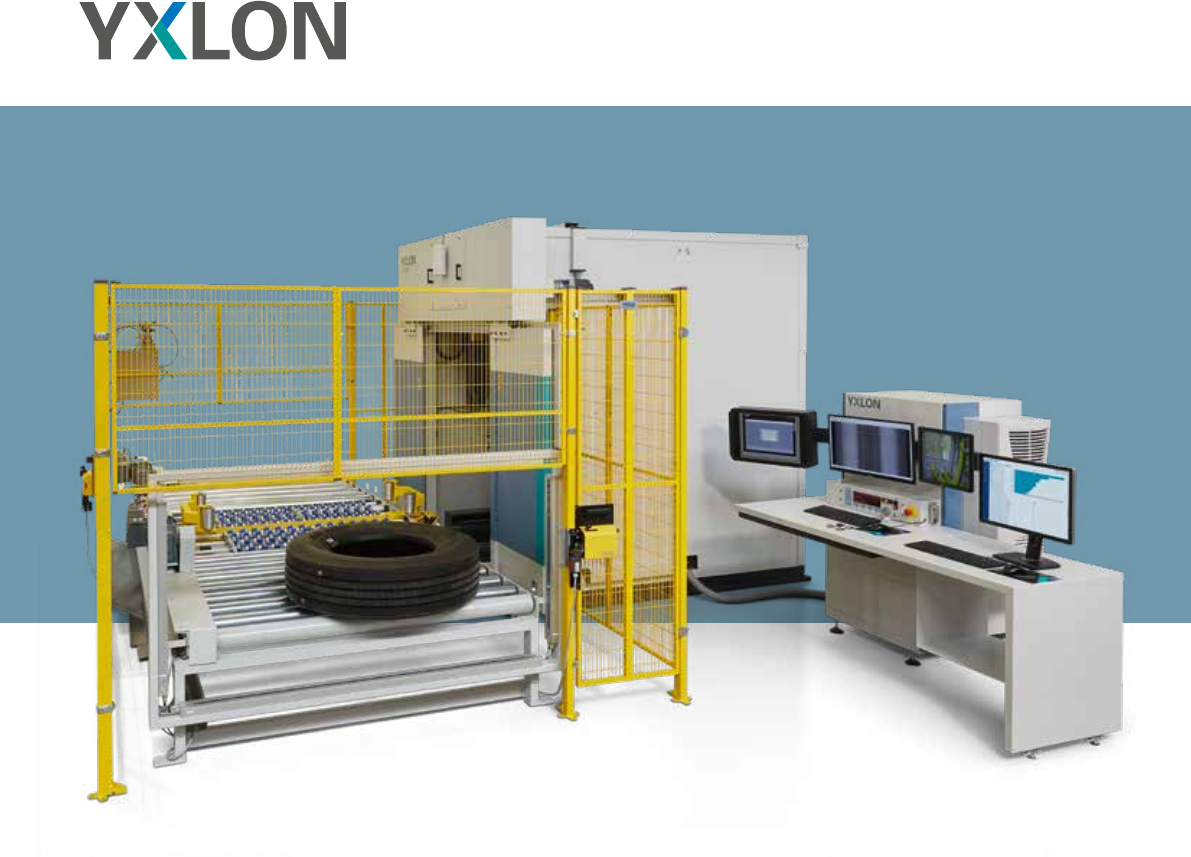

YXLON Y.MTIS
INLINE X-RAY INSPECTION SYSTEM FOR RADIAL TIRES
- Robust system for reliable 24/7 operation
- More than 350 systems in use worldwide
- Delivery of all relevant data for production process optimization
- Fast new product introduction with EasyTeach wizard
- Automatic x-ray image analysis powered by AI
From Product Quality to Process Optimization
Y.MTIS PCR Y.MTIS TBR
Tire width 100 - 400 mm / 4“- 15.5“ (with UScan 3-L)
100 - 350 mm / 4“- 13.5“ (with UScan 3-M)
100 - 508 mm / 4“ - 20“
Tire inner diameter 13“ to 26“ tires
12“ on request
13“ to 26“ tires
Max. tire weight 60 kg / 132 lbs 160 kg / 352 lbs
System dimensions ~ 4,800 mm x 5,100 mm x 2,700 mm ~ 5,400 mm x 5,100 mm x 2,700 mm
X-ray tube 100 kV / 300 W 100 kV / 300 W
Number of pixels 2469 (with UScan 3-L);
1819 (with UScan 3-M)
2469 (with UScan 3-L)
Pixel pitch 500 μm 500 μm
A/D converter 16 bit 16 bit
2
Specifications

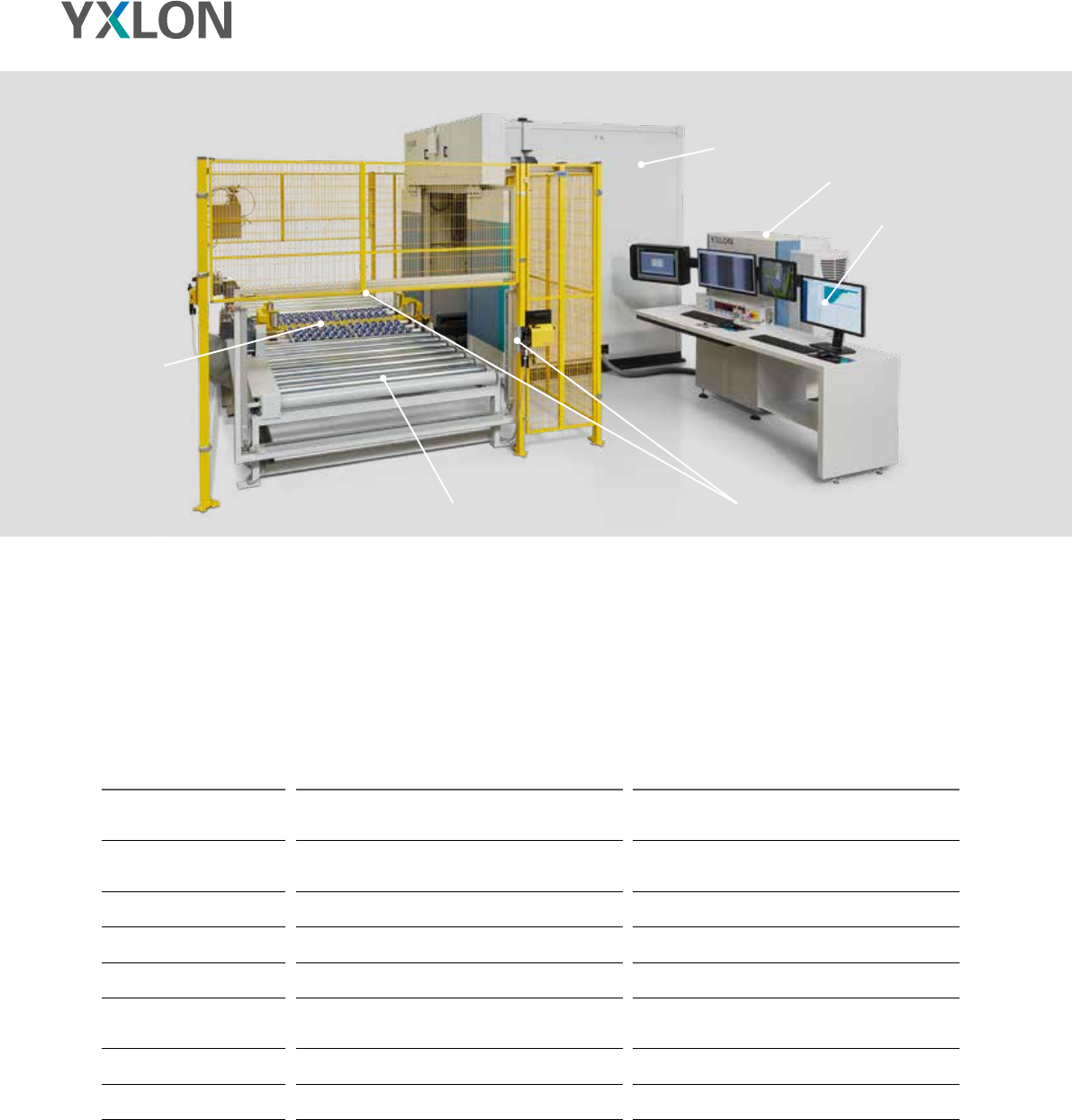

Y.MTIS X-RAY INSPECTION SYSTEM OVERVIEW
loading
arm
conveyor tire ID
operator station
statistics
x-ray protection
cabinet
WHEN MILLIMETERS MAKE THE DIFFERENCE
- 4-spindle tire manipulator proven in over 350 Y.MTIS
systems worldwide.
- Vertical scan positioning ensures minimal deformation
of the tire.
- Secure gripping assures repeatable positioning
to the millimeter.
- Guaranteed accurate and reproducible inspection
results.
SAFE QUALITY DECISIONS THROUGH
SOPHISTICATED TECHNOLOGY
- Shielded x-ray source uniquely improved for Yxlon
to provide extremely stable operation
- Exclusive line detector Y.UScan3 designed and
manufactured by Yxlon International
- Best image quality with highest contrast supporting
75 m/min rotation speed
- Advanced image enhancement tools for
visual inspection based on decades of experience
SAFETY FIRST
- Proven safety according to latest German radiation
laws (StrlSchV)
- Compliant to the European machinery directive and
optionally to local standards such as OHSA/UL
- Installation and commissioning by Yxlon’s expertise
- State-of-the-art ergonomics
SEAMLESS INTEGRATION TO YOUR
PRODUCTION LINE
- Standard conveyor interfaces
- MES connection interface
- Barcode reader solutions
- Site-specific integration support
3
Rely on Y.MTIS to help you make
safe quality decisions

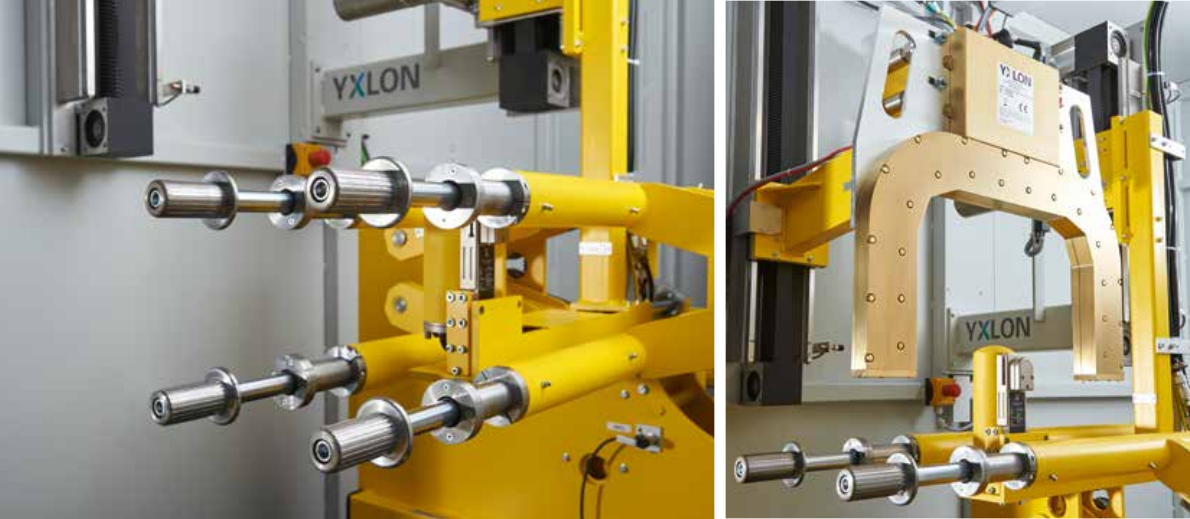

The four-spindle manipulation ensures for reliable
and repeatable inspection results.
Safe quality decisions with the exceptional image quality
of the Yxlon line detector Y.UScan3.
