WHEN MILLIMETERS MAKE THE DIFFERENCE - 4-spindle tire manipulator proven in over 350 Y .MTIS systems worldwide. - V ertical scan positioning ensures minimal deformation of the tire. - Secure gripping assures repeatable p…
Y.MTIS PCR Y.MTIS TBR
Tire width 100 - 400 mm / 4“- 15.5“ (with UScan 3-L)
100 - 350 mm / 4“- 13.5“ (with UScan 3-M)
100 - 508 mm / 4“ - 20“
Tire inner diameter 13“ to 26“ tires
12“ on request
13“ to 26“ tires
Max. tire weight 60 kg / 132 lbs 160 kg / 352 lbs
System dimensions ~ 4,800 mm x 5,100 mm x 2,700 mm ~ 5,400 mm x 5,100 mm x 2,700 mm
X-ray tube 100 kV / 300 W 100 kV / 300 W
Number of pixels 2469 (with UScan 3-L);
1819 (with UScan 3-M)
2469 (with UScan 3-L)
Pixel pitch 500 μm 500 μm
A/D converter 16 bit 16 bit
2
Specifications
Y.MTIS X-RAY INSPECTION SYSTEM OVERVIEW
loading
arm
conveyor tire ID
operator station
statistics
x-ray protection
cabinet
WHEN MILLIMETERS MAKE THE DIFFERENCE
- 4-spindle tire manipulator proven in over 350 Y.MTIS
systems worldwide.
- Vertical scan positioning ensures minimal deformation
of the tire.
- Secure gripping assures repeatable positioning
to the millimeter.
- Guaranteed accurate and reproducible inspection
results.
SAFE QUALITY DECISIONS THROUGH
SOPHISTICATED TECHNOLOGY
- Shielded x-ray source uniquely improved for Yxlon
to provide extremely stable operation
- Exclusive line detector Y.UScan3 designed and
manufactured by Yxlon International
- Best image quality with highest contrast supporting
75 m/min rotation speed
- Advanced image enhancement tools for
visual inspection based on decades of experience
SAFETY FIRST
- Proven safety according to latest German radiation
laws (StrlSchV)
- Compliant to the European machinery directive and
optionally to local standards such as OHSA/UL
- Installation and commissioning by Yxlon’s expertise
- State-of-the-art ergonomics
SEAMLESS INTEGRATION TO YOUR
PRODUCTION LINE
- Standard conveyor interfaces
- MES connection interface
- Barcode reader solutions
- Site-specific integration support
3
Rely on Y.MTIS to help you make
safe quality decisions
The four-spindle manipulation ensures for reliable
and repeatable inspection results.

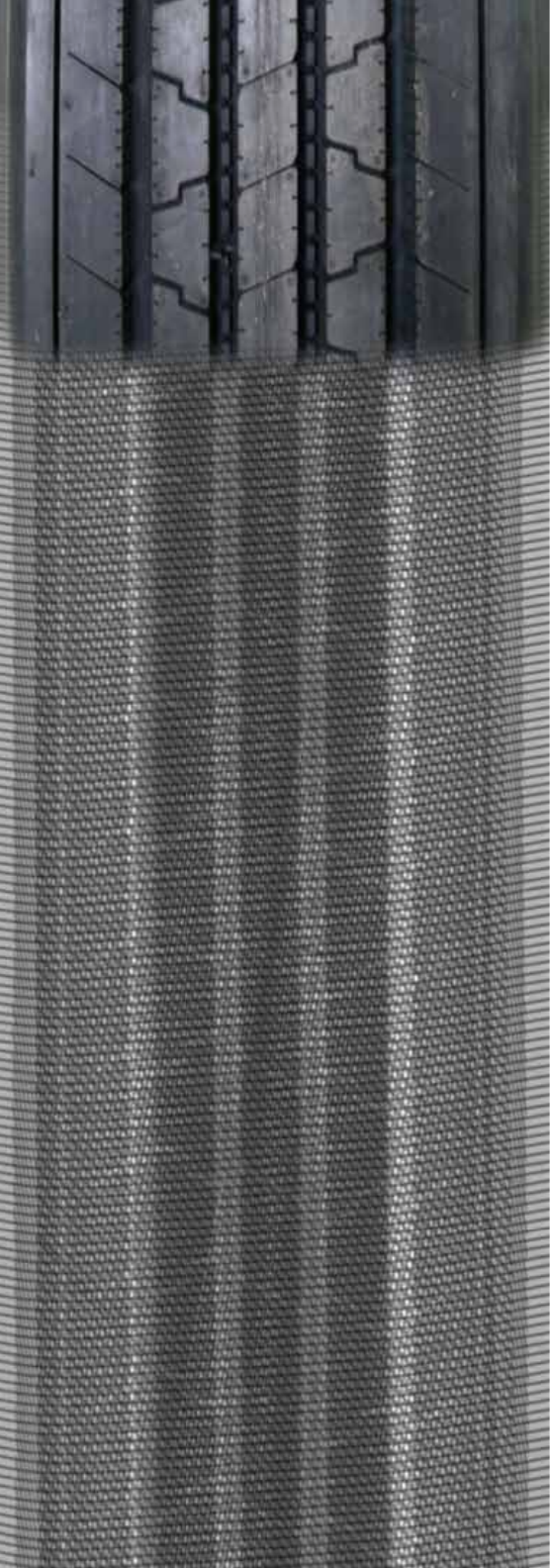

Safe quality decisions with the exceptional image quality
of the Yxlon line detector Y.UScan3.
Time and cost savings
through Y.TireAXIS
RELIABLE RECOGNITION OF TIRE ANOMALIES
ACCORDING TO YOUR QUALITY SPECIFICATION
X-ray operators have a challenging job as tire designs
become more complex and quality specifications tighter.
Y.TireAXIS supports your operators with objective
feedback based on your quality requirements evaluating
the whole tire image all at once, comprising:
Alignment and Consistency of Tire Components
- Belt centering, width, angle, and belt wander
- Correct position or height of turnup and chafer
- Offset splices in belts, chafer, and turnup
- Kinked beads and loose bead wires
Analysis of Steel Cords
- Cord spacing, including crossed and touching cords
- Wavy cords
Detection of
- Foreign material and air voids
- Object presence evaluation (e.g. RFID tags)
Accurate Measurements of Interior Structures
SUPERVISED OR FULLY AUTOMATIC INSPECTION
When using the Supervised Automatic Mode, Y.TireAXIS
displays the automatic results along with the x-ray images
providing a profound basis for the final decision made
by the operator. On the one hand, the final evaluation
made by a human expert still means a pillar of trust. On
the other hand, a human decision can never be 100%
objective and independent of his current condition.
Fully Automated Inspection with Y.TireAXIS is the next
step to achieve objective, stable, and reliable inspection
results and judgments inline the manufacturing process.
Fully automated inspection saves time, and your skilled
personnel is available for more demanding tasks. And
what is more, the complete data set of every inspected
tire is the crucial basis for optimizing your processes.
The teaching process was never as easy and fast as
today. New enhanced training functions and intuitive
wizards support the user to create inspection recipes and
define the referring specifications. The introduction of
new tires is no big deal anymore, and your experts can
spend their time achieving improved product quality and
increased yield.
