Automation Automation programmes Camera assisted ducial recognition W afer map import Sinf, Klarf and G85 W afer ID reading Via OCR Sample handling W afer or leadframe Light tower system Included as standard T esting T …
6 | Nordson DAGE 4600 Series - Automated Bondtesters

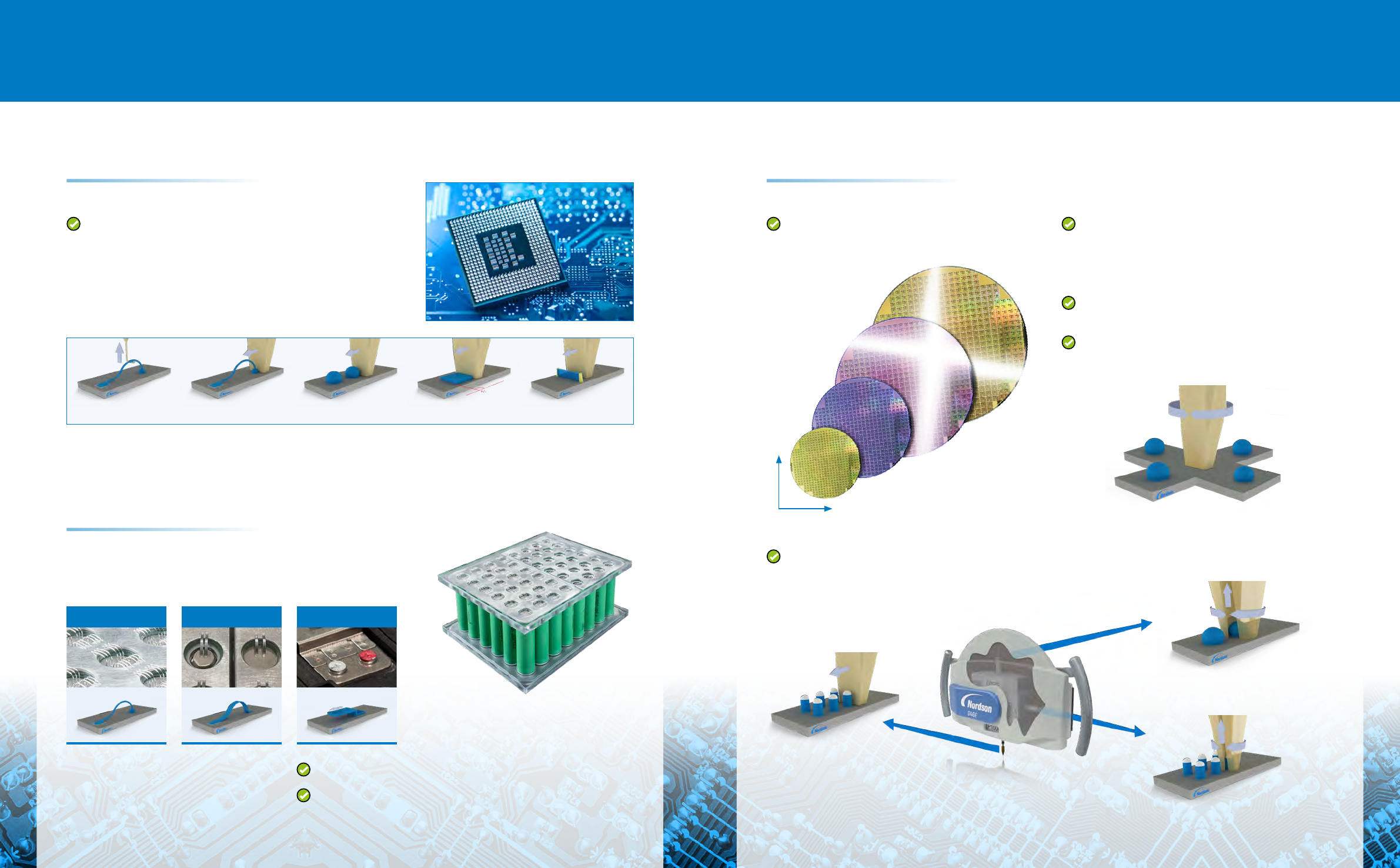

Wafer level
Test wafers from 2 inches
to 8 inches
Automate with the multi-functional cartridge
µ pillar shear
bump pull
µ pillar pull
We’ve Got it Covered
2”
4”
6”
8”
Micro-electronics
Test every interconnect or die
• Leadframes and strips
• Package substrates
• BGA
• MEMS
Electronic systems have a range of test requirements including wire pull, ball shear, die shear and
surface mount shear.
Battery
Automate battery interconnect strength testing to
ensure maximum automotive safety.
For battery systems the intercell
connection technology requires
mechanical testing in either:
Wirebond Ribbon
To Busbar
Tab Weld
Destructive mode (sample testing)
Non-destructive mode (100% testing)
wire pull wedge/ball bond shear ball shear die shear SMD shear
0°
270°180°
90°
Silicon, glass, laminate,
composite, compound and
warped wafers
Pillars and bumps <50µm
Test in any direction with the
rotational shear cartridge
8 | Nordson DAGE 4600 Series - Automated Bondtesters Nordson DAGE 4600 Series - Automated Bondtesters | 9
Test More with Automation
For the most complex devices
with a high density of bumps or
very ne pitch wires, automation
is the only way to ensure
maximum test accuracy.
Automation gives you the
precision required to achieve
the highest data integrity, test
after test.
Small dimensions
High density
Complex product
Fine pitch

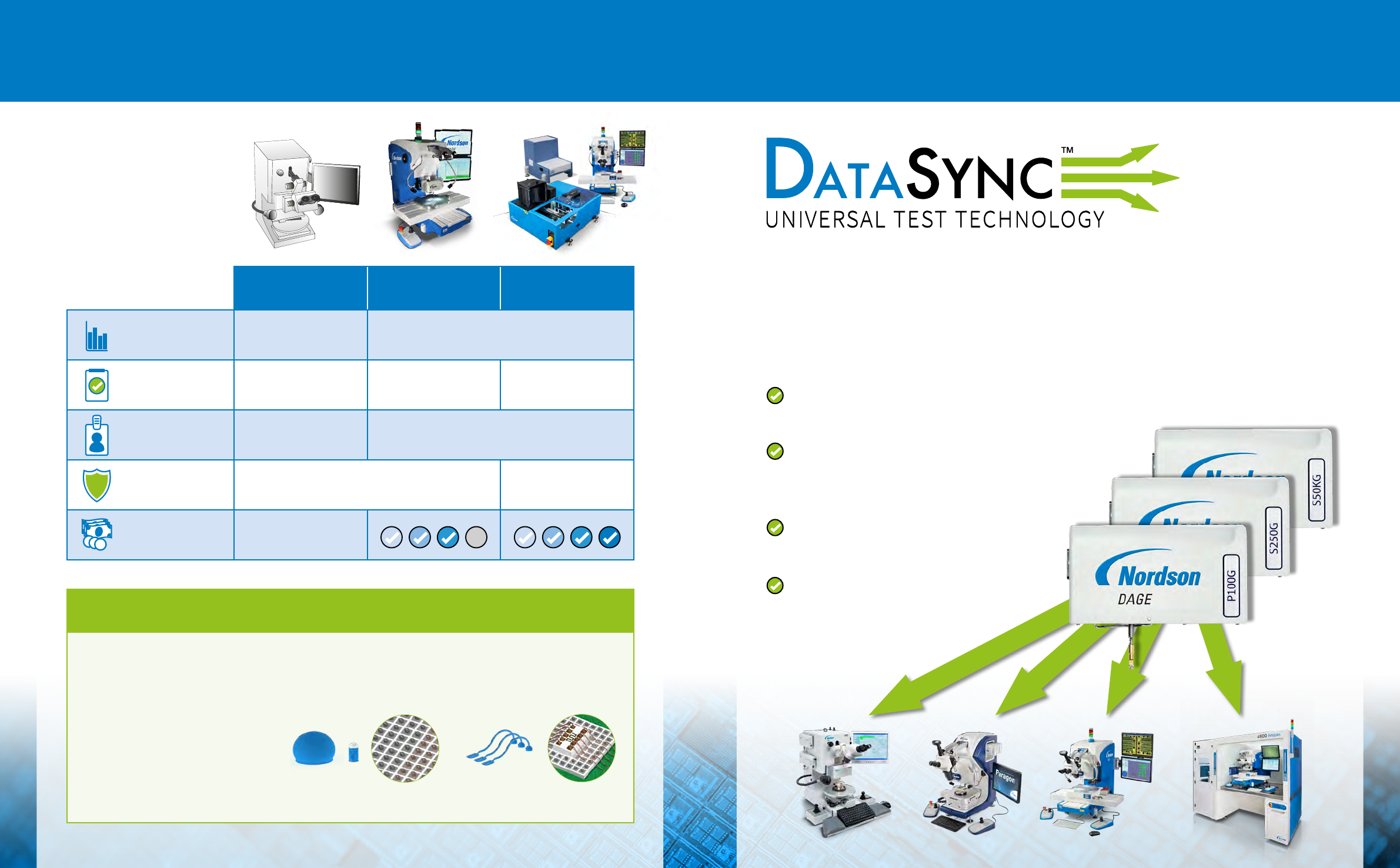

Test the Extreme Data that Correlates
Manual 4600 Handler
Wafer/leadframe
Test repeatability
Rotary encoders High resolution linear encoders
Data integrity
Operator alignment
Fiducial recognition
alignment
Fiducial recognition
+ OCR
Test procedure
Operator control Automatic test
Product safety
Manual
load/unload
Automatic
load/unload
Throughput and ROI
Variable
(operator dependent)
The measurement cartridge is at the heart of every Bondtester and is critical to achieving accurate
and consistent results.
Nordson DAGE cartridge technology is interchangeable between each of our systems, enabling new
data to correlate with data up to 20 years old.
Future proof your bond testing systems:
Save costs and improve ROI - cartridges from older systems are
compatible with the latest mainframes
Guarantee data correlation - results
correlate across all platforms from the
4000 Series to the 4800 INTEGRA
™
!
Seamless transition - no adaptors
or cartridge alterations needed
New mainframes are designed
to accommodate new and old
cartridge technology
Automation
Automation programmes Camera assisted ducial recognition
Wafer map import Sinf, Klarf and G85
Wafer ID reading Via OCR
Sample handling Wafer or leadframe
Light tower system Included as standard
Testing
Topology information Compound Surface Imaging (CSI) + auto-focus
Grading assistance Automatic area calculation upgrade
Step back accuracy (force dependent) +/- 0.25 µm
System accuracy (range dependent) +/- 0.10% - 0.05% FSL
Multifunctional cartridge Combinations of shear and pull transducers
Axis specication
Stage and resolution 100 nm Renishaw linear encoders
X, Y travel 450 mm X, 410 mm Y
X, Y speed and force 50 mm/s, 20 kg or 30 mm/s, 50 kg
Z travel and resolution 75 mm, 5 mm/s
Z speed and force 5 mm/s, up to 50 kg
Installation
Footprint (W x D x H) 1075 mm x 920 mm x 1000 mm
Weight 140 kg
Power supply 90-264 V, AC Single phase
Pneumatic supply
4 Bar, 6 mm OD / 4 mm ID plastic pipe
Vacuum supply Minimum 500 mm Hg plastic pipe
Specications at a Glance
SECS/GEM
ready
High magnication
and large FOV
cameras included
as standard
Paragon™
automation software
Specications subject to change without prior notice.
Copyright © Nordson DAGE 2019. Other products
and company names mentioned are trademarks or
trade names of their respective companies.
Nordson DAGE products are patent protected and
covered by the patent listed at www.nordson.com/
dagepatents.
